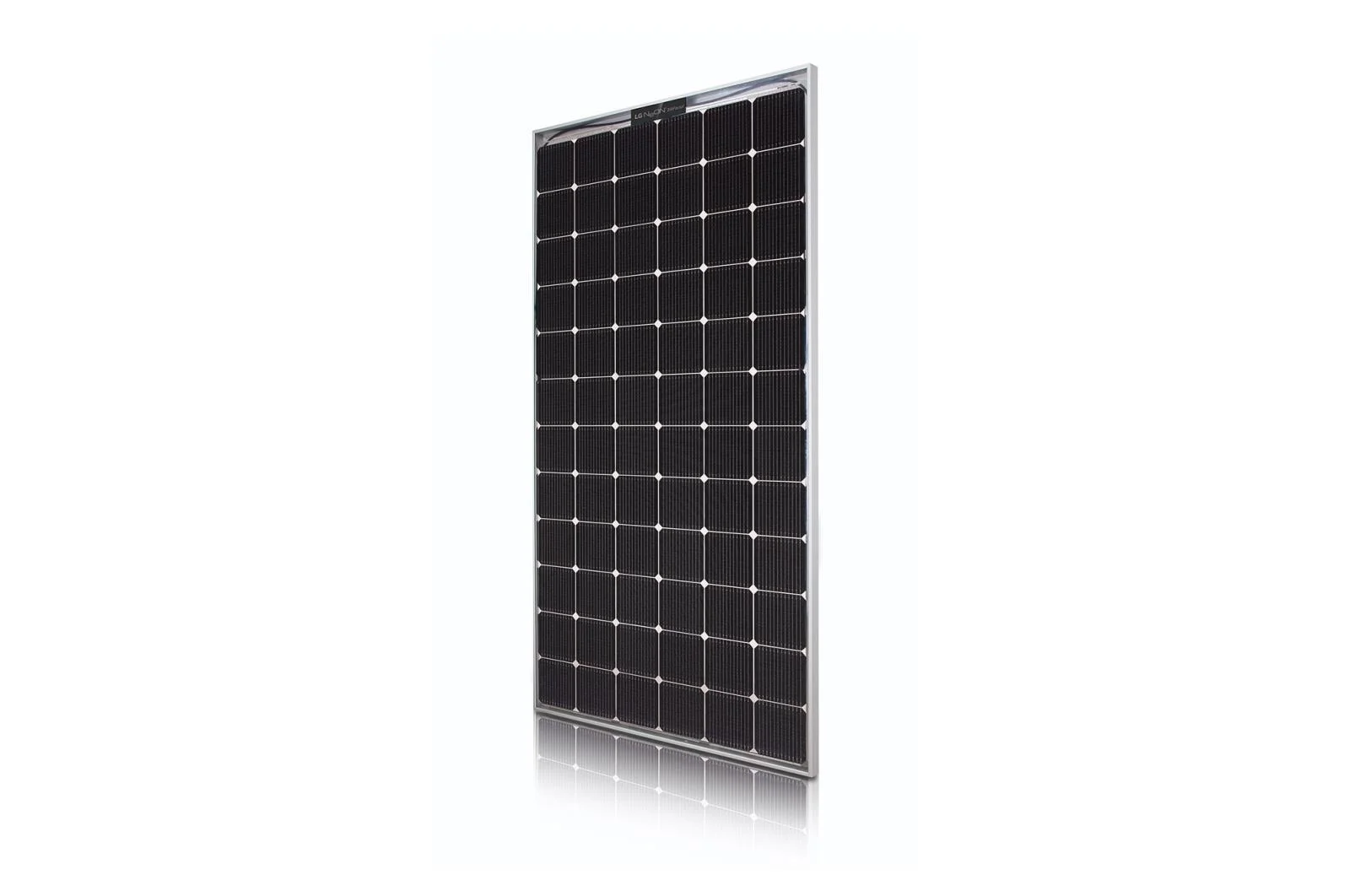

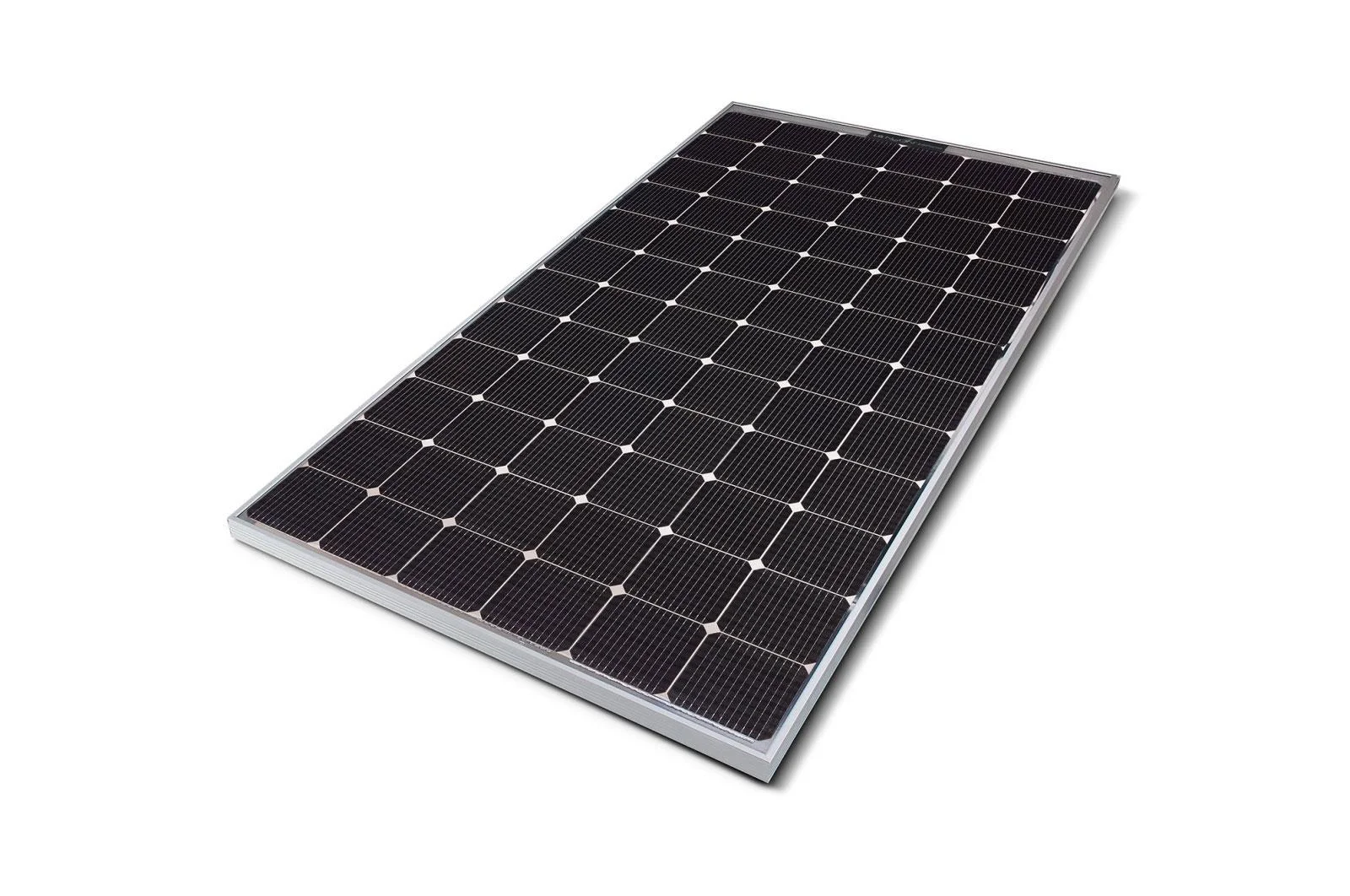

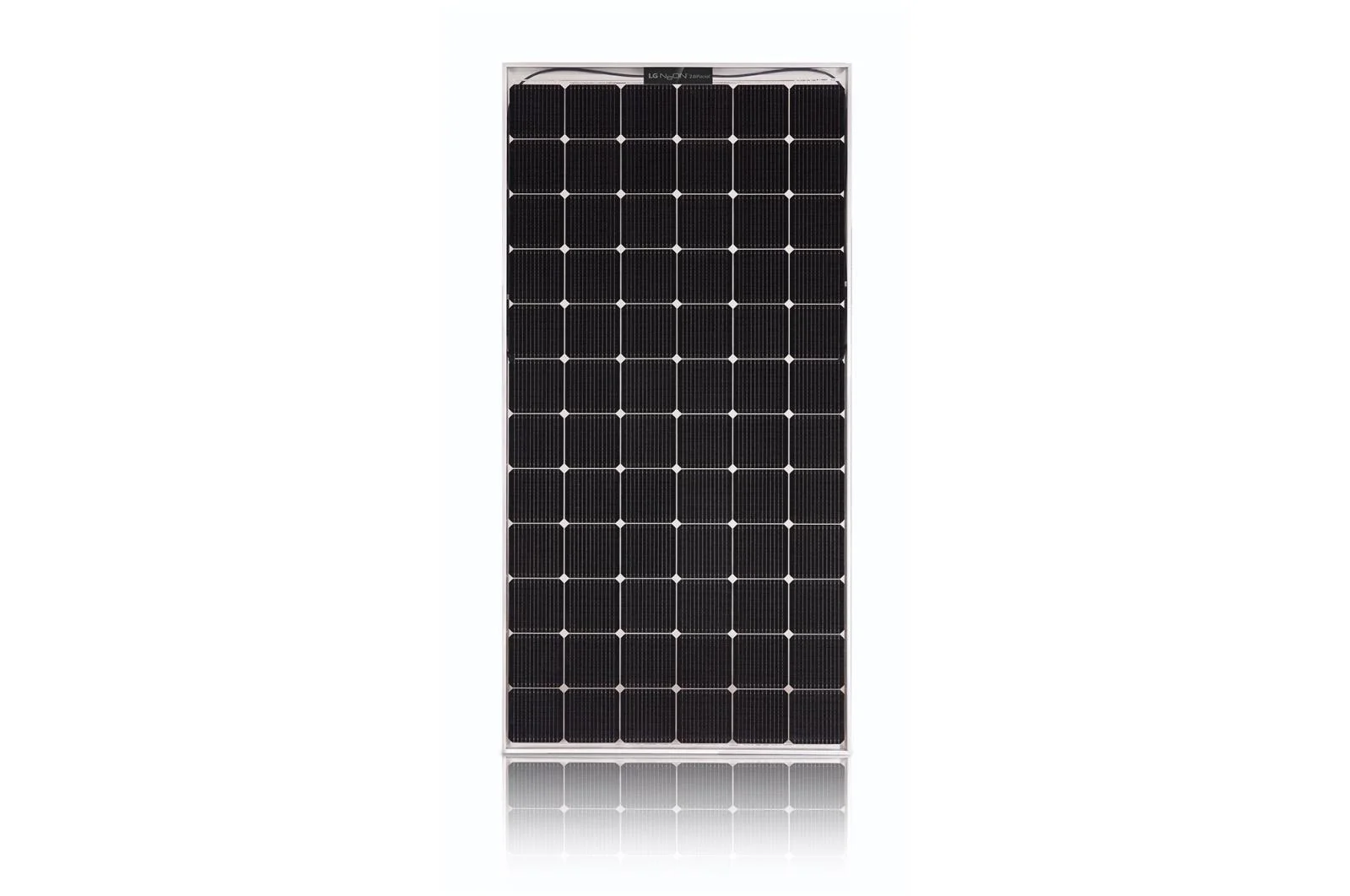

High Efficiency Lg Neon® 2 Bifacial Module Cells: 6 X 12 Module Efficiency 18.5% Connector Type: Mc4
SKU: LG390N2TA5
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
- High Power Output
- Double-sided Generation
- Enhanced Performance Warranty
Rebates
view available rebates
High Efficiency Lg Neon® 2 Bifacial Module Cells: 6 X 12 Module Efficiency 18.5% Connector Type: Mc4
Misc Collection
Specifications
Specifications
Features
High Power Output, Double-sided Generation, Enhanced Performance Warranty
- High Power Output
- Double-sided Generation
- Enhanced Performance Warranty
CERTIFICATIONS & WARRANTY
Certifications
UL 1703,IEC 61215, IEC 61730-1/-2,IEC 61701 (Salt mist corrosion test),IEC 62716 (Ammonia corrosion test),;ISO 9001
Certifications
- UL 1703,IEC 61215, IEC 61730-1/-2,IEC 61701 (Salt mist corrosion test),IEC 62716 (Ammonia corrosion test),;ISO 9001
Module Fire Performance
Type 1(UL 1703)
Module Fire Performance
- Type 1(UL 1703)
Fire Resistance Class
Class C (ULC/ORD C1703, IEC 61730)
Fire Resistance Class
- Class C (ULC/ORD C1703, IEC 61730)
Product Warranty
25 Years
Product Warranty
- 25 Years
Output Warranty of Pmax
Linear warranty*
Output Warranty of Pmax
- Linear warranty*
*
1) 1st year: 98%, 2) After 1st year: 0.5% annual degradation, 3) 86% for 25 years
*
- 1) 1st year: 98%, 2) After 1st year: 0.5% annual degradation, 3) 86% for 25 years
ELECTRICAL PROPERTIES(NOCT*)
Maximum Power(Pmax)
289
Maximum Power(Pmax)
- 289
MPP Voltage (Vmpp)
38.3
MPP Voltage (Vmpp)
- 38.3
MPP Current (Impp)
7.54
MPP Current (Impp)
- 7.54
Open Circuit Voltage (Voc)
45.9
Open Circuit Voltage (Voc)
- 45.9
Short Circuit Current (Isc)
8.17
Short Circuit Current (Isc)
- 8.17
*
NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
*
- NOCT (Nominal Operating Cell Temperature): Irradiance 800 W/m2, ambient temperature 20 °C, wind speed 1 m/s
Electrical Properties (STC*)
MPP Voltage (Vmpp)
41.4
MPP Voltage (Vmpp)
- 41.4
MPP Current (Impp)
9.43
MPP Current (Impp)
- 9.43
Open Circuit Voltage (Voc)
49.2
Open Circuit Voltage (Voc)
- 49.2
Short Circuit Current (Isc)
10.15
Short Circuit Current (Isc)
- 10.15
Module Efficiency (%)
18.5
Module Efficiency (%)
- 18.5
Operating Temperature (°C)
-40 ~ +90
Operating Temperature (°C)
- -40 ~ +90
Maximum System Voltage (V)
1,500 / 1,000(IEC)
Maximum System Voltage (V)
- 1,500 / 1,000(IEC)
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
*
STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
*
- STC (Standard Test Condition): Irradiance 1000 W/m2, module temperature 25 °C, AM 1.5 / The nameplate power output is measured and determined by LG Electronics at its sole and absolute discretion.
Pmax Bifaciality Coefficient*** [%]
76
Pmax Bifaciality Coefficient*** [%]
- 76
**
Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on installation condition.
**
- Bifacial Gain: The additional gain from the back side compared to the power of the front side at the standard test condition. It depends on installation condition.
***
Pmax Bifaciality Coefficient 25years warranty based on front output warranty. tolerance 7%
***
- Pmax Bifaciality Coefficient 25years warranty based on front output warranty. tolerance 7%
MECHANICAL PROPERTIES
Cells
6 x 12
Cells
- 6 x 12
Cell Type
Monocrystalline / N-type
Cell Type
- Monocrystalline / N-type
Cell Dimensions
161.7 x 161.7 mm / 6 inches
Cell Dimensions
- 161.7 x 161.7 mm / 6 inches
# of Busbar
12(Multi Wire Busbar)
# of Busbar
- 12(Multi Wire Busbar)
Dimensions (L x W x H)
2,064 x 1,024 x 40 mm / 81.26 x 40.31 x 1.57 in
Dimensions (L x W x H)
- 2,064 x 1,024 x 40 mm / 81.26 x 40.31 x 1.57 in
Front Load
5,400 Pa / 113 psf*
Front Load
- 5,400 Pa / 113 psf*
Rear Load
4,300 Pa / 90 psf*
Rear Load
- 4,300 Pa / 90 psf*
Weight
22.0 kg / 48.72 lb
Weight
- 22.0 kg / 48.72 lb
Connector Type
MC4 (MC), PV-JM601A (JMTHY)
Connector Type
- MC4 (MC), PV-JM601A (JMTHY)
Junction Box
IP68 with 3 Bypass Diodes
Junction Box
- IP68 with 3 Bypass Diodes
Frame
Anodized aluminium
Frame
- Anodized aluminium
Glass
Tempered Glass with AR Coating
Glass
- Tempered Glass with AR Coating
*
Please refer to the installation manual for the details
*
- Please refer to the installation manual for the details
Cables
1,200 mm x 2 ea / 47.24 in x 2 ea
Cables
- 1,200 mm x 2 ea / 47.24 in x 2 ea
Temperature Characteristics
NOCT
45 3
NOCT
- 45 3
Pmpp
0.0036
Pmpp
- 0.0036
Voc
-0.0027
Voc
- -0.0027
Isc
0.03 %/°C
Isc
- 0.03 %/°C
Pmax [%/°C]
-0.36
Pmax [%/°C]
- -0.36
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc High Efficiency Lg Neon® 2 Bifacial Module Cells: 6 X 12 Module Efficiency 18.5% Connector Type: Mc4, made by LG Appliances,
