1.2Mm Lscb Curved Ultra Slim Indoor Led With Copper Connectors
SKU: LSCB012CKF
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description
moreFront and Rear Installation and Maintenance
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.

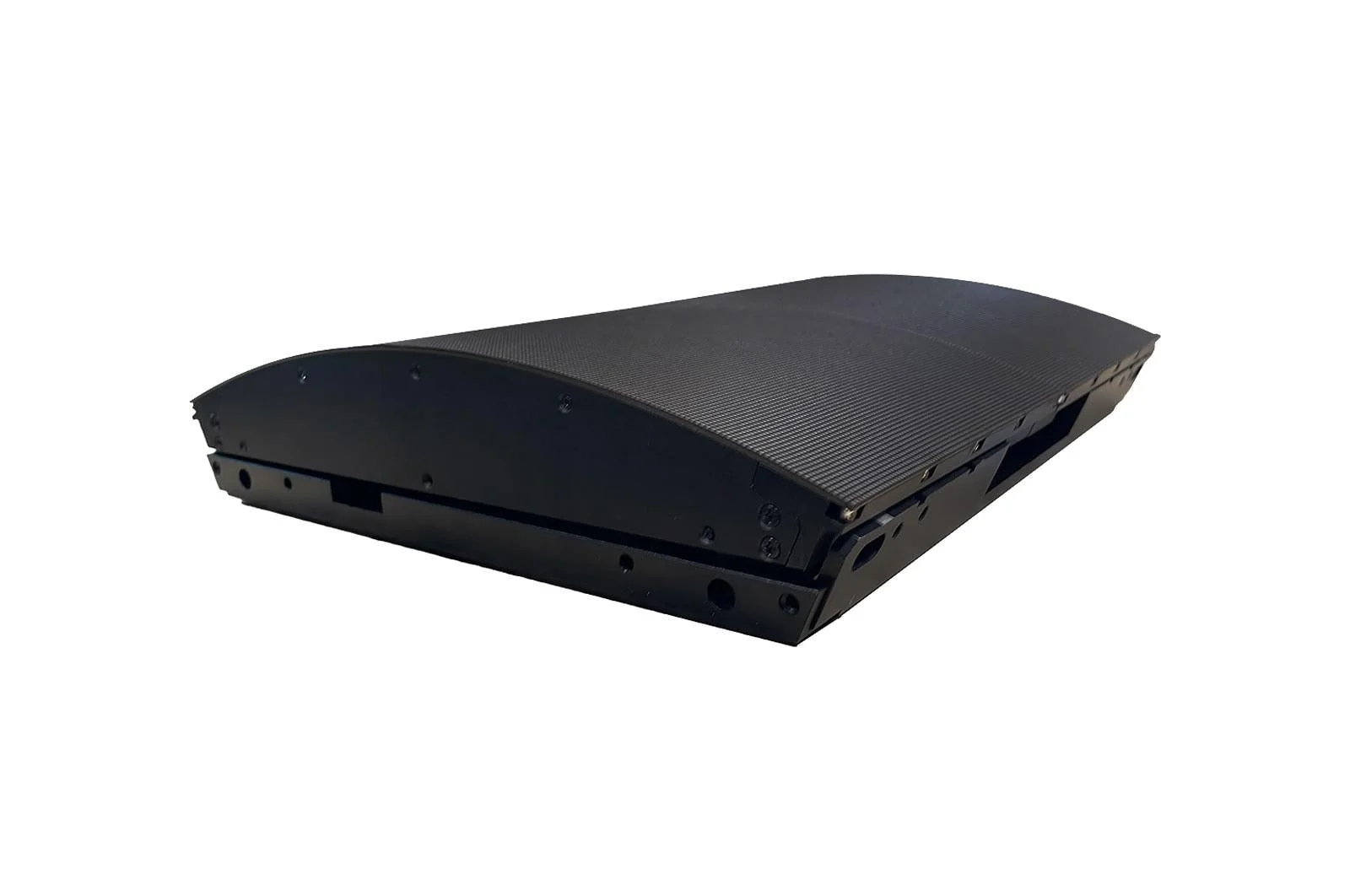

LSCB Direct View LED Customizable to fit your needs
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
*Depending on the radius, the unit case dimension size changes.

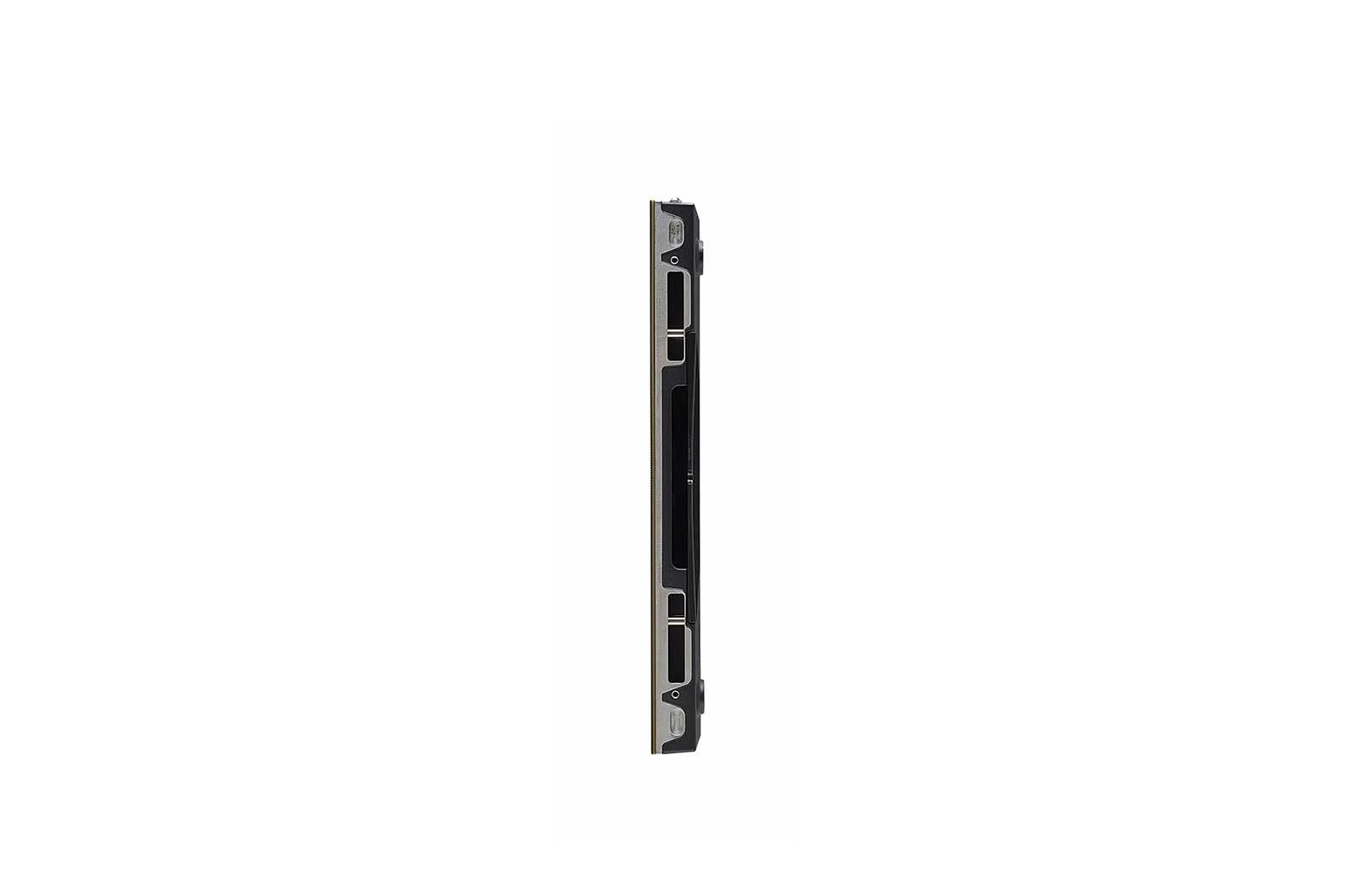

Ultra Slim Depth
The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
The LSCB series cabinets can be accessed from the front or rear for maintenance for added convenience and enhanced installation options.
16:9 FHD/UHD Configuration
Each cabinet uses a 16:9 aspect ratio, the most commonly used in FHD and UHD content displays. This allows you to keep using existing content without additional cost and time for editing.
EMC Certified & Fire Resistant Design
The LSCB Series is safe from electromagnetic waves, harmful to the environment and human body, with EMC Class B Certification and is designed with fire protection certification to prevent the fast spread of flames even if it catches on fire.
LG Recognized as MSAP Leader
LG's environmental practices have earned us the title of Leader in the MindClick Sustainability Assessment Program 22-23. MSAP Ratings recognize environmental and social leadership by acknowledging manufacturers who promote sustainability and sustainable practices. LG has earned the Leader status in the categories of Cruise TVs, Healthcare TVs, Digital Signage, Small Monitors, and Hospitality: H Models.
LSCB Direct View LED Customizable to fit your needs
For added installation flexibility, the LSCB series offers half-height/ half-width and curved cabinets to create various types of screens, including customized curvature, concave and convex configurations*.
*Depending on the radius, the unit case dimension size changes.
Ultra Slim Depth
The LSCB Series' ultra-slim cabinet design, with 37.5mm edge thickness, is its most significant advantage. This feature enables the LSCB Series to be installed and utilized in any type of venue without restriction.
Compatibility with LG Software Solution
Powered by LG's high performance system controller and webOS™, the LSCB series is compatible with LG software solutions, including SuperSign CMS, LED Assistant, and ConnectedCare™, which help customers operate their own business flawlessly.
- IP30, EMS Certified and Fire Resistant
- 800 Nits Brightness & Expressive Colors
- Front Accessible
- Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.)
- 1.2 mm Pixel Pitch
- Show your message 24/7
Rebates
view available rebates
1.2Mm Lscb Curved Ultra Slim Indoor Led With Copper Connectors
Misc Collection
Specifications
Specifications
Features
IP30, EMS Certified and Fire Resistant, 800 Nits Brightness & Expressive Colors, Front Accessible, Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.), 1.2 mm Pixel Pitch, Show your message 24/7
- IP30, EMS Certified and Fire Resistant
- 800 Nits Brightness & Expressive Colors
- Front Accessible
- Customizable, Convex/Concave (Interchangeable with others LSCB Copper skus.)
- 1.2 mm Pixel Pitch
- Show your message 24/7
PHYSICAL PARAMETERS
Pitch Name
P1.25
Pitch Name
- P1.25
Pixel Configuration
Single SMD
Pixel Configuration
- Single SMD
Pixel Pitch(mm)
1.25
Pixel Pitch(mm)
- 1.25
Module Resolution (W x H, pixels)
240 x 135
Module Resolution (W x H, pixels)
- 240 x 135
Module Dimensions (W x H)
11.8 x 6.6 in / 300 x 168.75 mm
Module Dimensions (W x H)
- 11.8 x 6.6 in / 300 x 168.75 mm
Weight per Module
0.8 lbs. / 0.37 kg
Weight per Module
- 0.8 lbs. / 0.37 kg
No. of Modules per Cabinet (W x H)
1 x 2
No. of Modules per Cabinet (W x H)
- 1 x 2
Cabinet Resolution (W x H, pixels)
240 x 270
Cabinet Resolution (W x H, pixels)
- 240 x 270
Cabinet Dimensions (Depth Changes for Different Curve)
11.8 x 13.3 x 2.3 in. 300 x 337.5 x 58 mm
Cabinet Dimensions (Depth Changes for Different Curve)
- 11.8 x 13.3 x 2.3 in. 300 x 337.5 x 58 mm
Cabinet Surface Area
1.08 ft2 / 0.1 m2
Cabinet Surface Area
- 1.08 ft2 / 0.1 m2
Weight per Cabinet (Weight Changes for Different Curve)
5.7 lbs. / 2.6 kg
Weight per Cabinet (Weight Changes for Different Curve)
- 5.7 lbs. / 2.6 kg
Weight per Unit Area
5.28 lb/ft2 / 25.78 kg/m2
Weight per Unit Area
- 5.28 lb/ft2 / 25.78 kg/m2
Physical Pixel Density (pixels/m )
640,000
Physical Pixel Density (pixels/m )
- 640,000
Flatness of Cabinet (mm)
0.1
Flatness of Cabinet (mm)
- 0.1
Cabinet Material
Die-casting Aluminum
Cabinet Material
- Die-casting Aluminum
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Max. Brightness (After Calibration, nits)
800
Max. Brightness (After Calibration, nits)
- 800
Color Temperature (K)
3,200 - 9,300
Color Temperature (K)
- 3,200 - 9,300
Visual Viewing Angle (H x V)
160° x 160°
Visual Viewing Angle (H x V)
- 160° x 160°
Brightness Uniformity
0.97
Brightness Uniformity
- 0.97
Color Uniformity
0.003 Cx,Cy
Color Uniformity
- 0.003 Cx,Cy
Contrast Ratio
5,000:1
Contrast Ratio
- 5,000:1
Processing Depth (bit)
14 (HDR10, HDR10 Pro)
Processing Depth (bit)
- 14 (HDR10, HDR10 Pro)
ELECTRICAL SPECIFICATIONS
Power Consumption (W/Cabinet, Max.)
75
Power Consumption (W/Cabinet, Max.)
- 75
Power Consumption (W/Cabinet, Avg.)
25
Power Consumption (W/Cabinet, Avg.)
- 25
Power Consumption (W/ , Max.)
740
Power Consumption (W/ , Max.)
- 740
Heat Dissipation (BTU/h/Cabinet, Max.)
256
Heat Dissipation (BTU/h/Cabinet, Max.)
- 256
Heat Dissipation (BTU/h/Cabinet, Avg.)
85
Heat Dissipation (BTU/h/Cabinet, Avg.)
- 85
Heat Dissipation (BTU/h/m , Max.)
2,528
Heat Dissipation (BTU/h/m , Max.)
- 2,528
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
50 / 60
Frame Rate (Hz)
- 50 / 60
Refresh Rate (Hz)
3,840
Refresh Rate (Hz)
- 3,840
OPERATION SPECIFICATIONS
Lifetime (Half Brightness)*
100,000 hours
Lifetime (Half Brightness)*
- 100,000 hours
Operating Temperature
14 to 113 °F -10 to 45 °C
Operating Temperature
- 14 to 113 °F -10 to 45 °C
Operating Humidity
0 to 80% RH
Operating Humidity
- 0 to 80% RH
IP Rating Front / Rear
IP30 / IP30
IP Rating Front / Rear
- IP30 / IP30
Regulatory
Certification
CE, FCC, ETL, EMC Class-B
Certification
- CE, FCC, ETL, EMC Class-B
Certification (Fire Protection)
BS476 Part7 Class1, EN13501-1
Certification (Fire Protection)
- BS476 Part7 Class1, EN13501-1
ENVIRONMENT
Environment
RoHS, REACH
Environment
- RoHS, REACH
CONTROLLER
Controller
CVCA
Controller
- CVCA
90 DEGREE CORNER CUT
90 Degree corner cut
Yes
90 Degree corner cut
- Yes
WARRANTY
Warranty
3 Year Limited
Warranty
- 3 Year Limited
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
The Misc 1.2Mm Lscb Curved Ultra Slim Indoor Led With Copper Connectors, made by LG Appliances,
