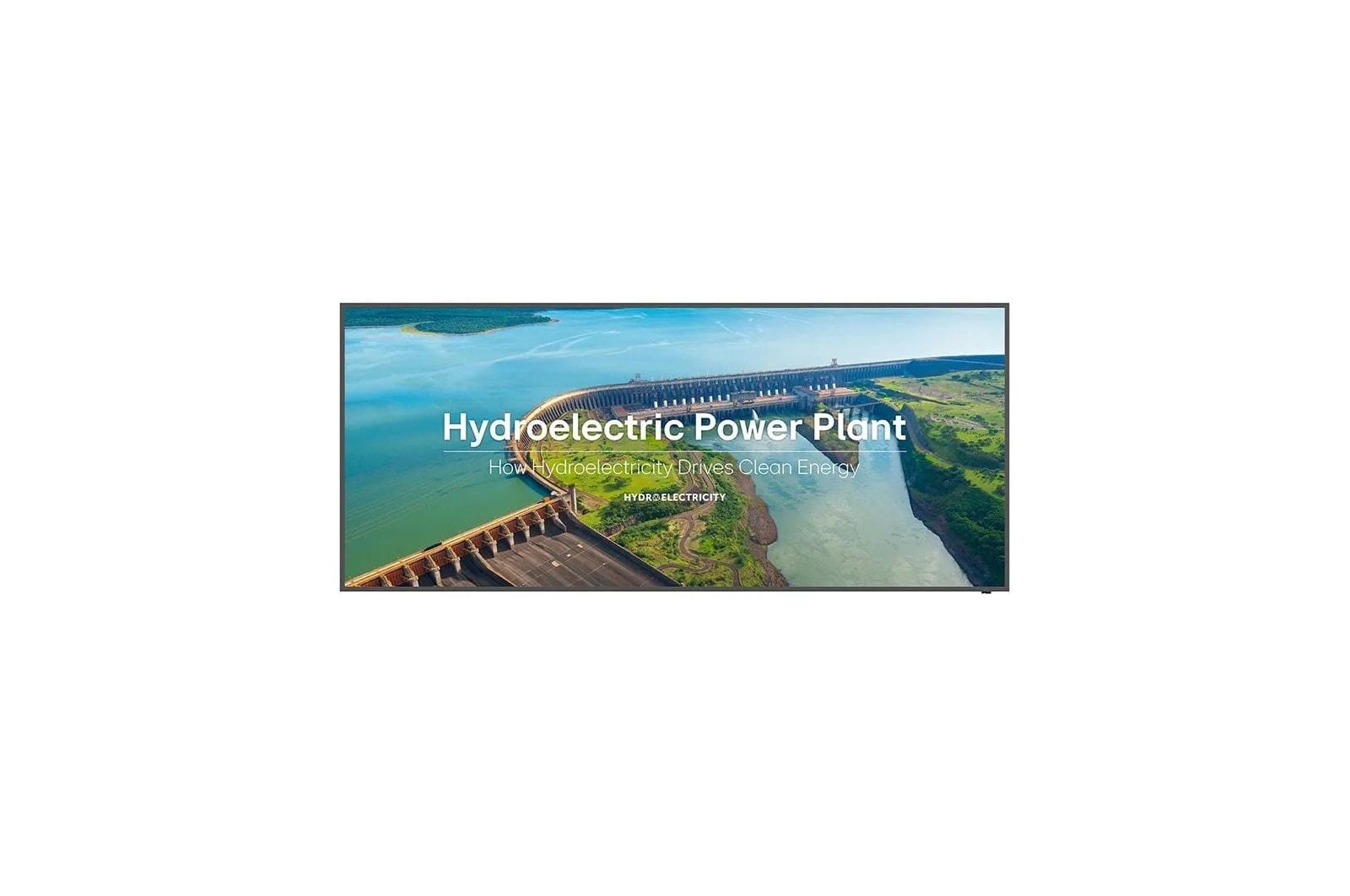

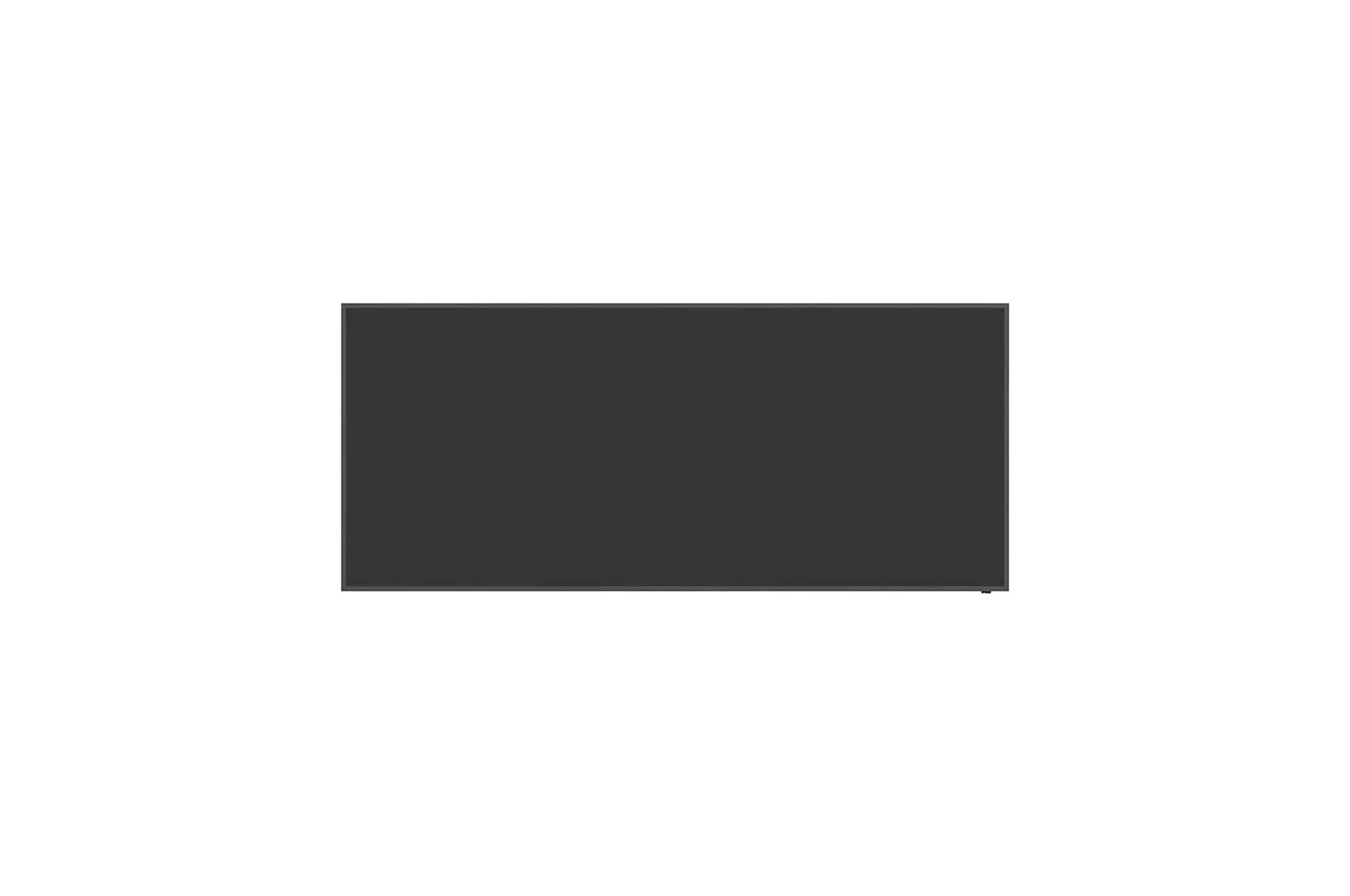

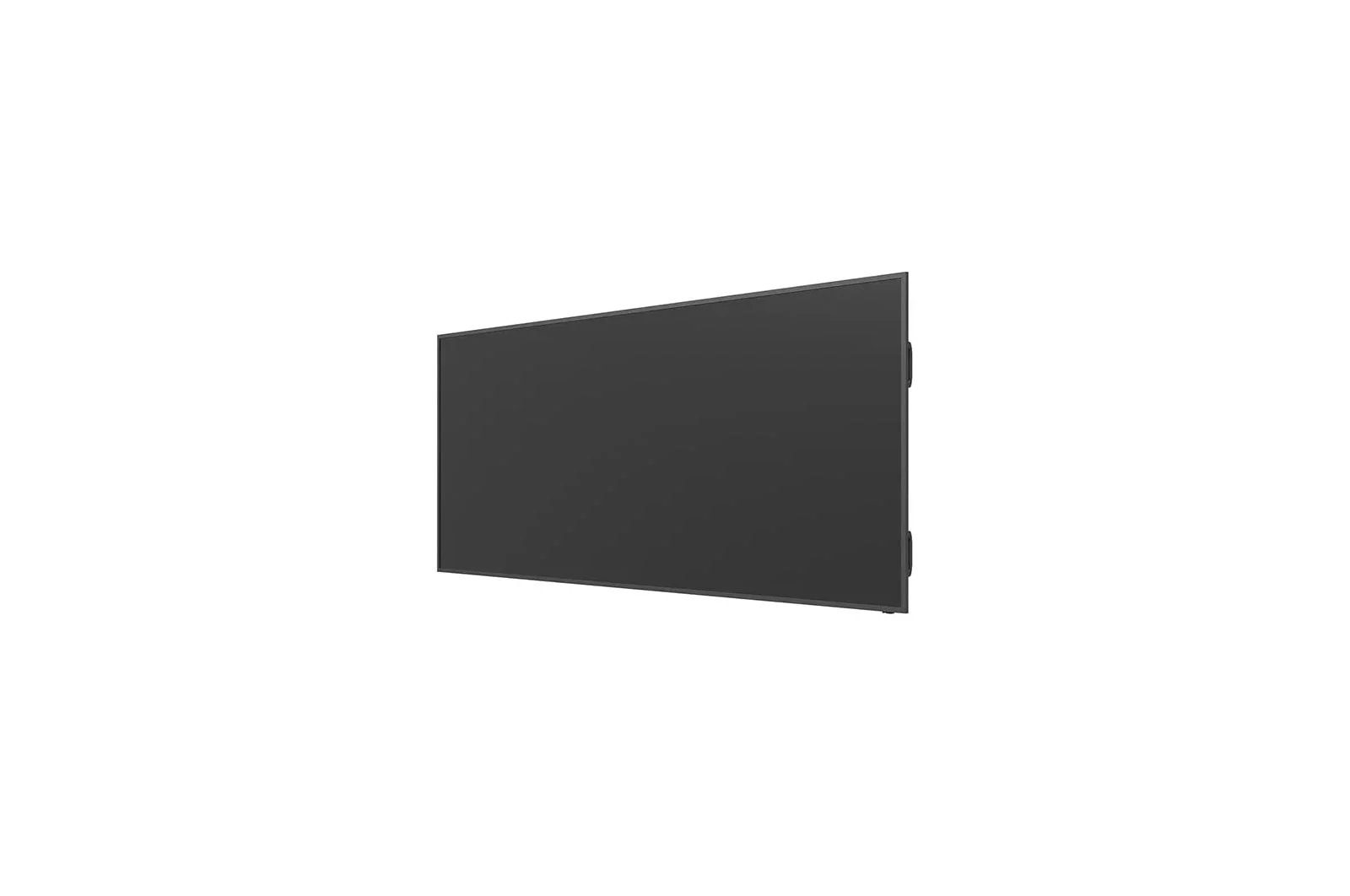

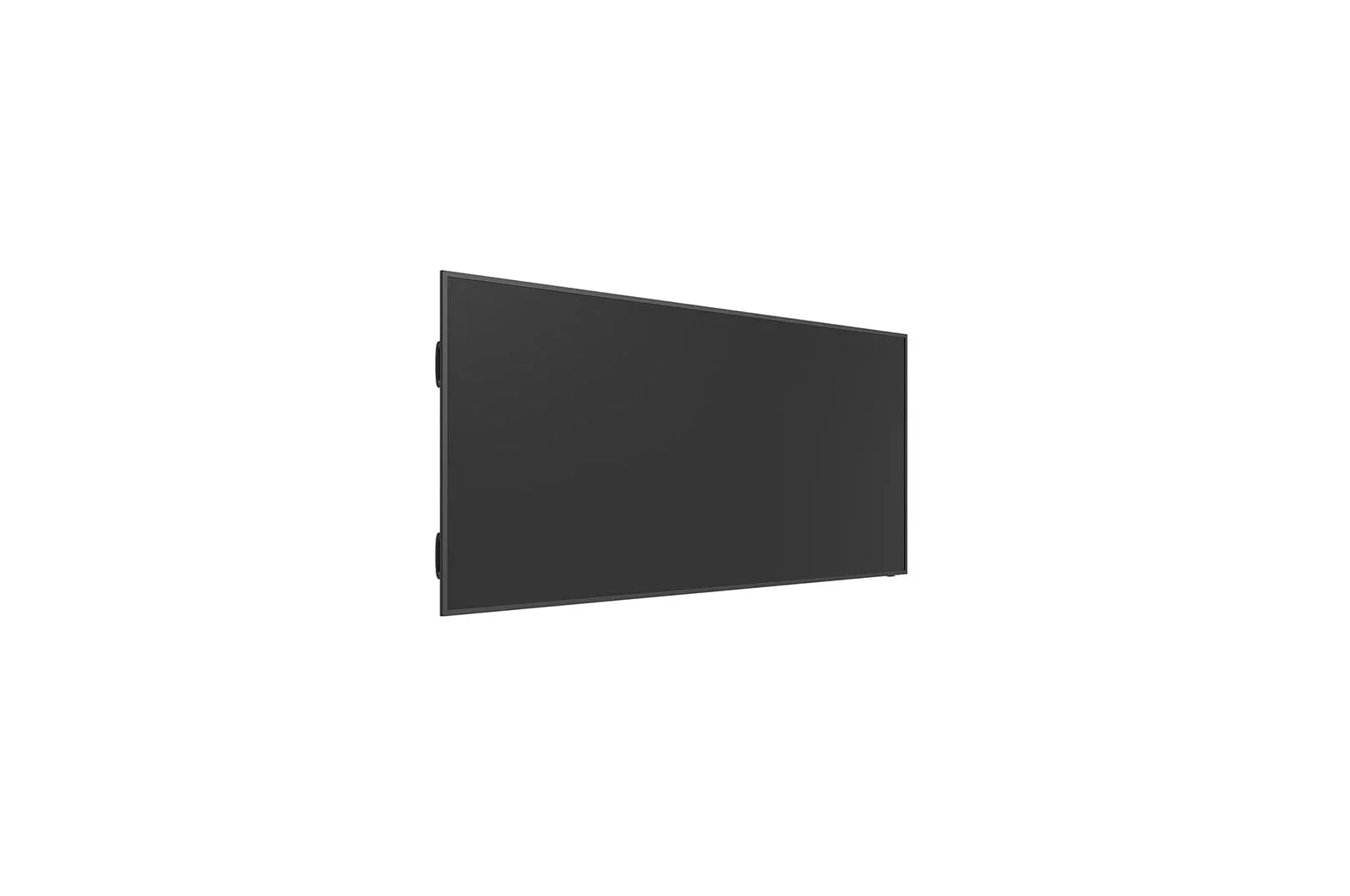

105'' 21:9 5K Ultra Stretch Signage With Wireless Screenshare & Ops Slot

SKU: 105BM5P

Where Can I See This Product in Store?

This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

First Name is required
Last Name is required
Email Address is required
Message is required

Description

High Resolution Display
It provides a resolution that's more than 4 times higher than FHD, creating stunning visuals. With a resolution of 5,120 x 2,160 and a high pixel density, every single detail of the display screen is conveyed.

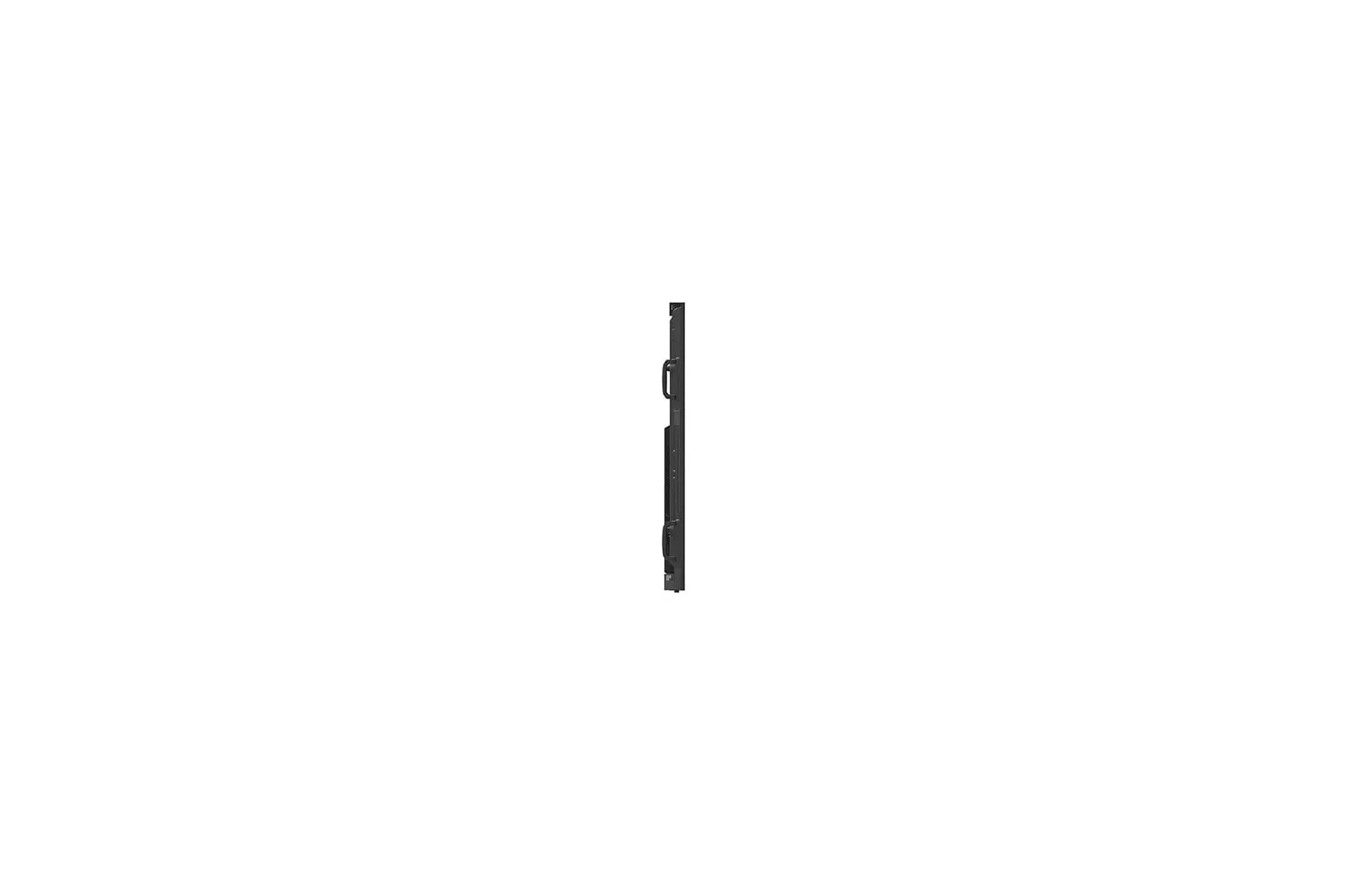

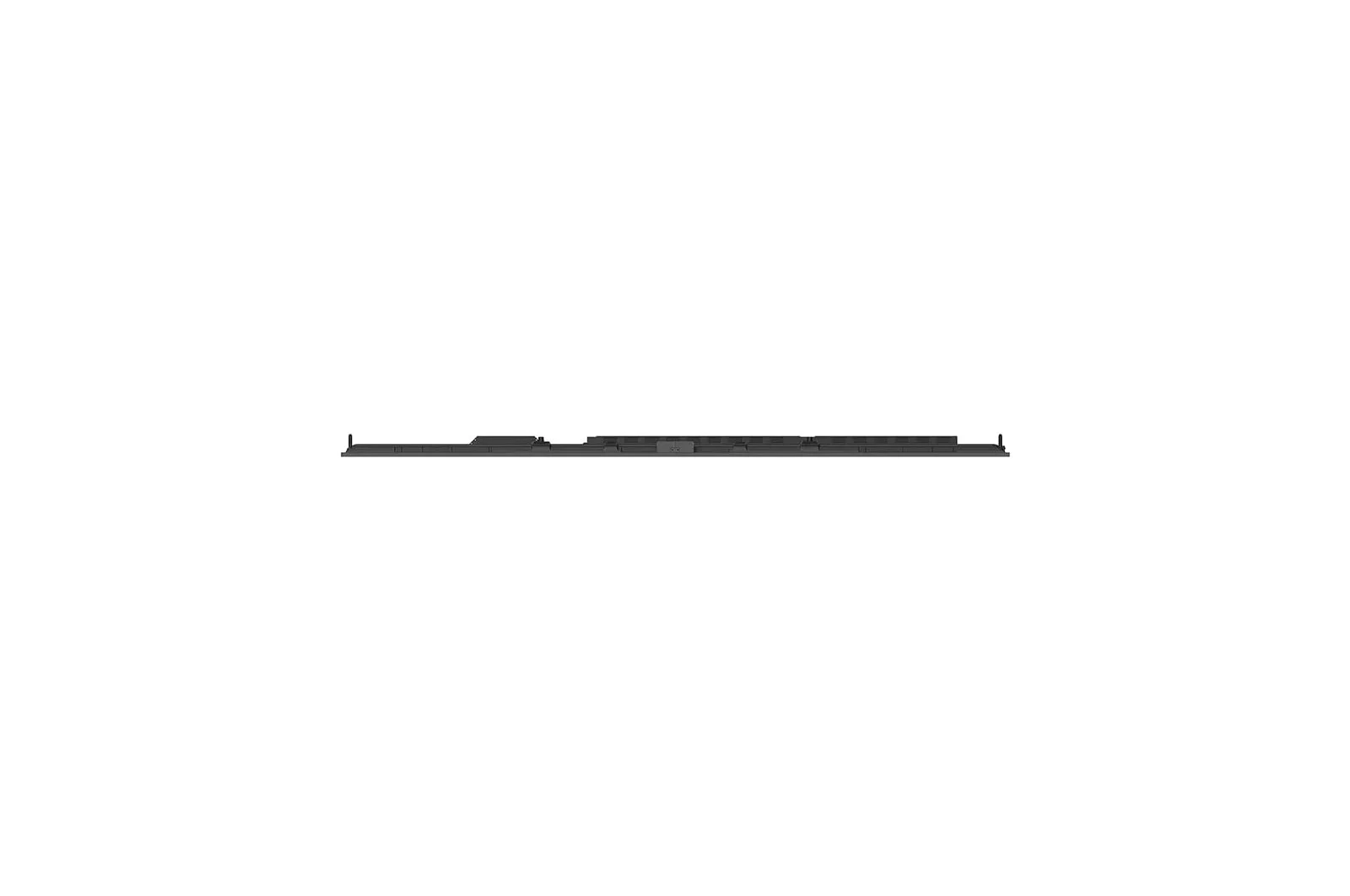

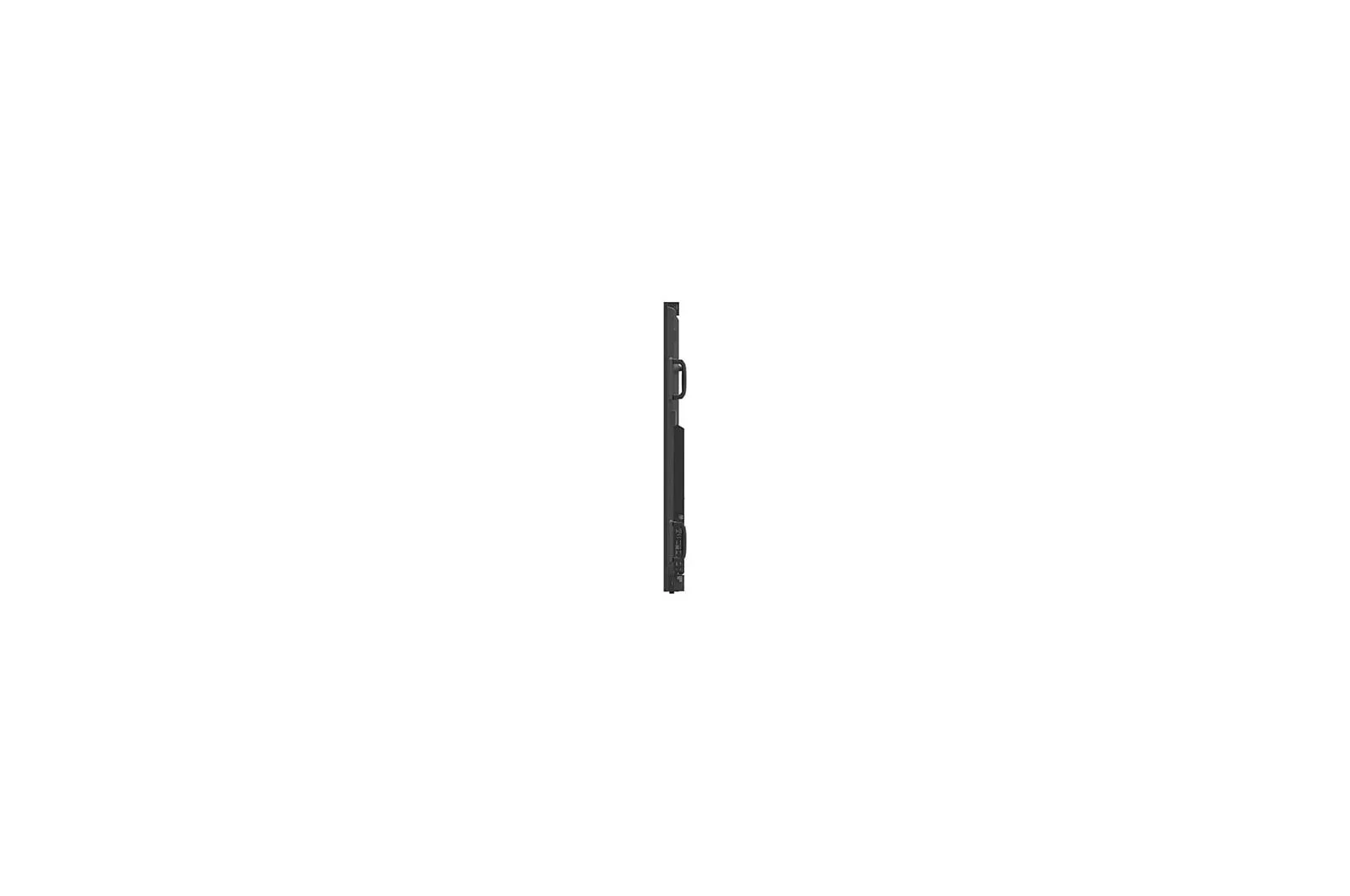

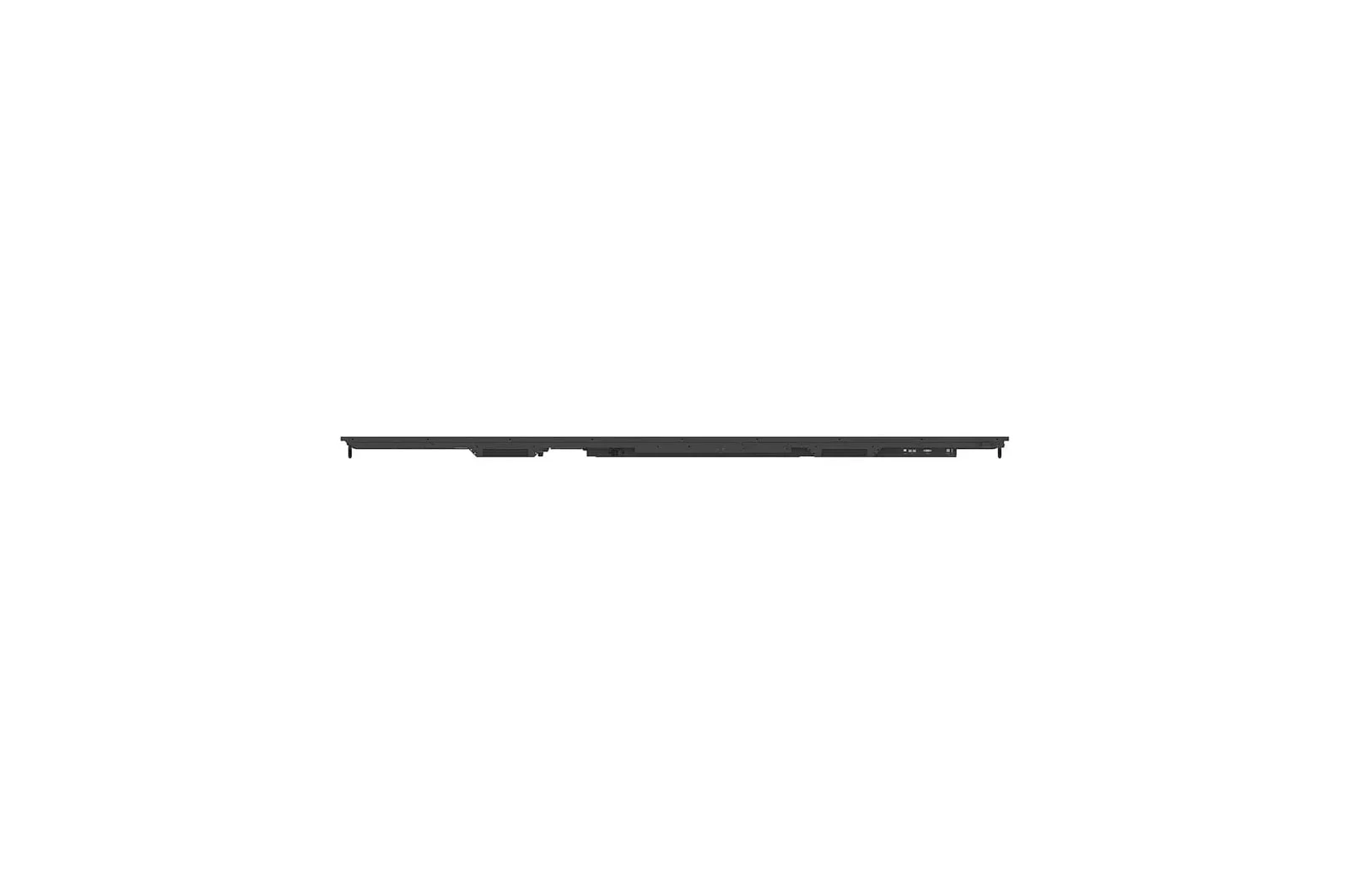

Slim Depth Design
The 105BM5P features a slim bezel and sleek depth design to fit into your space.Easy installation makes it an ideal choice for a variety of settings.*We recommend professional installation. If you choose to install it yourself, please ensure that at least two people are involved.
21:9 Extended Wide Format
With support for a 21:9 widescreen aspect ratio, 105BM5P provides an immersive viewing experience with the wider screen than 16:9 display. Its screen specialization helps display 21:9 content including widescreen videoconferencing platforms with the natural details.
*Images are simulated for illustration purposes only.
Portrait / Landscape Mode
The 105BM5P offers versatile usage, with the ability to be used in both vertical and horizontal orientations. This flexibility allows it to adapt to various installation and usage scenarios.
*The orientation must be manually adjusted when changing the installation direction.
Easily Connect & Charge with USB Type-C
USB Type-C connectivity simplifies connections which enables charging and sending data simultaneously over just one single cable. USB Type-C cables are sold separately.
*Images are simulated for illustration purposes only.
Wireless ScreenShare
The 105BM5P offers a wireless screen sharing feature, known as LG CreateBoard® Share*, allowing for easy sharing of presentation materials wirelessly, thus eliminating the clutter of wires. This enables users to show up to 9 shared screens or a file on a screen in real-time when the LG CreateBoard® Share app is installed on the device. Also, files from the host can be easily sent to any devices connected to the app.
*LG CreateBoard® also supports app-less sharing for PC (via website) and mobile devices within the same network. For a more stable connection, we recommend the installation of a dedicated app (LG CreateBoard® Share). Images are simulated for illustration purposes only.

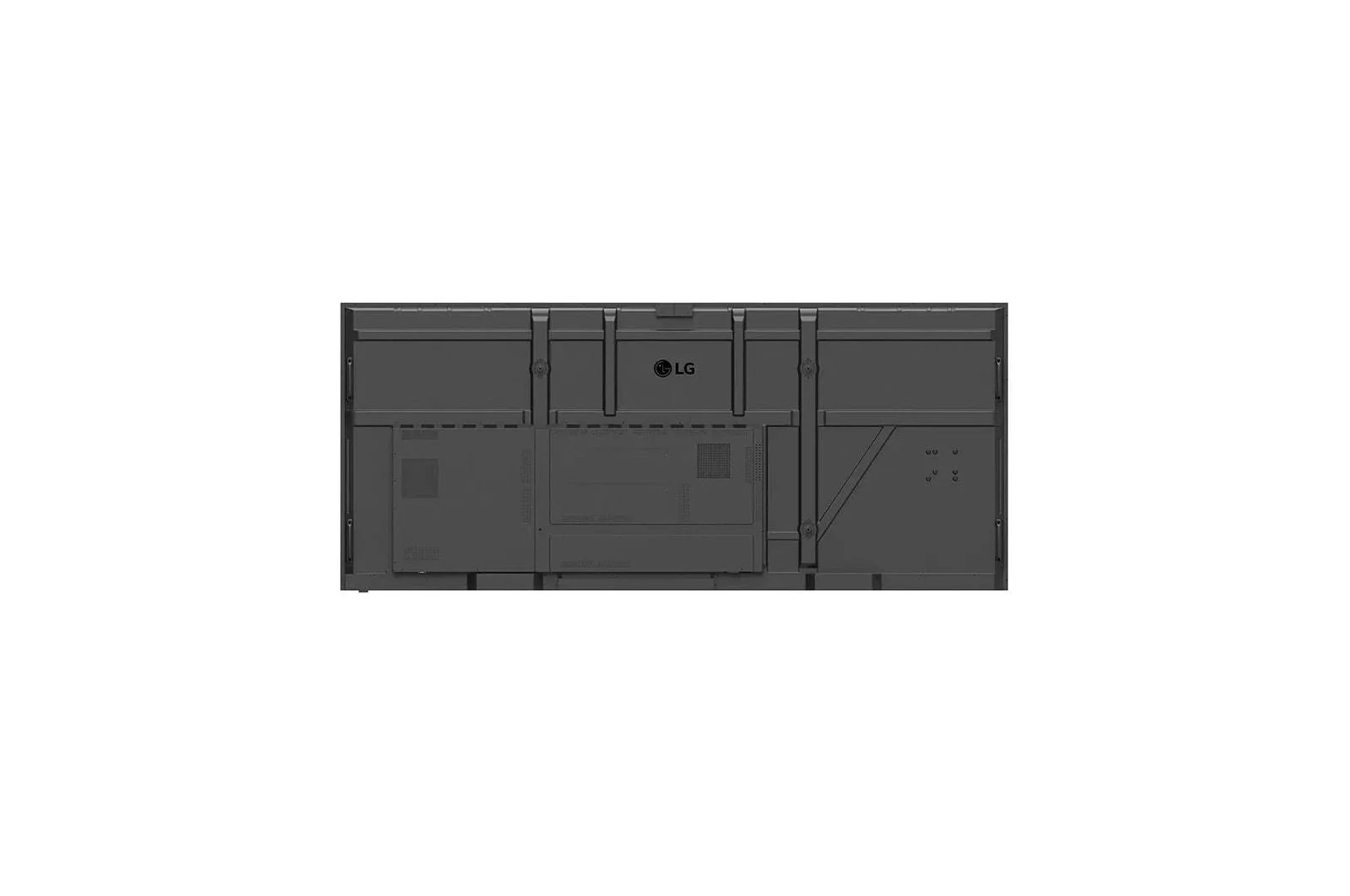

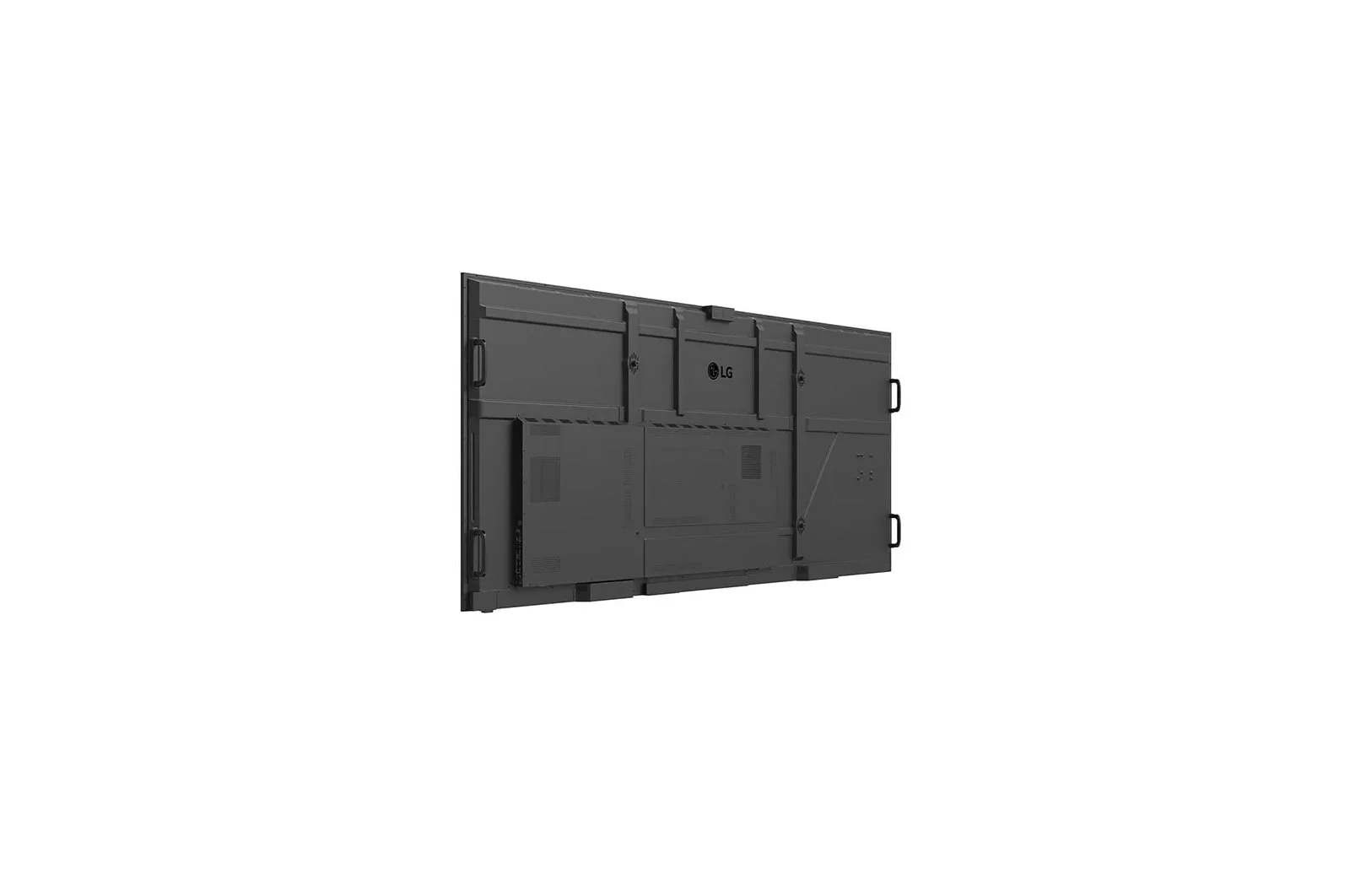

OPS Slot
105BM5P supports OPS slots (Open Pluggable Specification), allowing you to conveniently mount OPS Module at the back of the screen without the hassle of connecting to an external desktop, enabling various PC functions and Windows software even on the 105BM5P. OPS Player sold separately.
*Images are simulated for illustration purposes only.
LG ConnectedCare™ DMS
is a cloud solution for remote monitoring, controlling, and managing the status of devices. This feature enables IT managers to manage important resources on operating devices without physically visiting sites. LG ConnectedCare™ DMS is sold seperately.
*The availability of the LG ConnectedCare DMS service differs by region, so please contact the LG sales representative in your region for more details. LG ConnectedCare DMS supports TV Signage (UM340E, UR640S), LG CreateBoard (TR3DK, TR3DJ, TR3PJ) and Stretch Signage (105BM5N) as of now (plus more to come) under a cloud environment.
Remote Control
Thanks to LG ConnectedCare DMS, IT manager can select specific devices to be controlled remotely and update their settings all at once. General settings, power settings, application management, and multimedia can all be effectively managed and controlled simultaneously, enabling the stable operation of clients' businesses.
Broadcast / Alert Message
Messages and a range of other content can be sent from the main system's hub to individual devices connected to LG ConnectedCare DMS and you can easily display important company notices or schedules right on your device. In case of urgent occasions such as a fire or a natural disaster, alert messages can be distributed manually across the system, which helps people promptly take a safety action.
  • USB-Type C connection & Supports OPS Slot
  • Portrait / Landscape mode
  • Wireless ScreenShare with LG CreateBoard® Share
  • Remote monitoring, control, & management with ConnectedCare DMS
  • 105" 5,120 x 2,160 (5K) Display
  • Operate 16/7 with lifetime up to 50,000 hrs.

Rebates

view available rebates
105'' 21:9 5K Ultra Stretch Signage With Wireless Screenshare & Ops Slot
105'' 21:9 5K Ultra Stretch Signage With Wireless Screenshare & Ops Slot
Misc Collection

Specifications

Specifications

remove

Features

USB-Type C connection & Supports OPS Slot, Portrait / Landscape mode, Wireless ScreenShare with LG CreateBoard® Share, Remote monitoring, control, & management with ConnectedCare DMS, 105" 5,120 x 2,160 (5K) Display, Operate 16/7 with lifetime up to 50,000 hrs.
  • USB-Type C connection & Supports OPS Slot
  • Portrait / Landscape mode
  • Wireless ScreenShare with LG CreateBoard® Share
  • Remote monitoring, control, & management with ConnectedCare DMS
  • 105" 5,120 x 2,160 (5K) Display
  • Operate 16/7 with lifetime up to 50,000 hrs.

PANEL

Screen Size (Inch) 105"
Screen Size (Inch)
  • 105"
Panel Technology Direct
Panel Technology
  • Direct
Aspect Ratio 21:9
Aspect Ratio
  • 21:9
Native Resolution 5,120 x 2,160 (5K)
Native Resolution
  • 5,120 x 2,160 (5K)
Refresh Rate 60 Hz
Refresh Rate
  • 60 Hz
Brightness 440 nits (Typ.), 385 nits (Min.)
Brightness
  • 440 nits (Typ.), 385 nits (Min.)
Contrast Ratio 1,200:1
Contrast Ratio
  • 1,200:1
Dynamic CR 5,000:1
Dynamic CR
  • 5,000:1
Color Gamut NTSC 72%
Color Gamut
  • NTSC 72%
Viewing Angle (H x V) 178 x 178
Viewing Angle (H x V)
  • 178 x 178
Color Depth 10 bit (8 bit + FRC)
Color Depth
  • 10 bit (8 bit + FRC)
Response Time 8ms
Response Time
  • 8ms
Surface Treatment (Haze) 25%
Surface Treatment (Haze)
  • 25%
Lifetime** Up to 50,000 Hours
Lifetime**
  • Up to 50,000 Hours
Operation Hours (Hours / Day) 16/7
Operation Hours (Hours / Day)
  • 16/7
Portrait / Landscape Yes / Yes
Portrait / Landscape
  • Yes / Yes

Connectivity(Jack Interface)

Input HDMI (4, HDCP 2.3 (HDMI 2.1 (1), HDMI 2.0 (3)), DP (HDCP 2.3), Audio In, RS-232C In, RJ45 (LAN), USB Type-C (100 W PD, DP-Alt), USB 3.0 Type-A (4), USB 2.0 Type-A (3), USB 2.0 Type-B Out (3)
Input
  • HDMI (4, HDCP 2.3 (HDMI 2.1 (1), HDMI 2.0 (3)), DP (HDCP 2.3), Audio In, RS-232C In, RJ45 (LAN), USB Type-C (100 W PD, DP-Alt), USB 3.0 Type-A (4), USB 2.0 Type-A (3), USB 2.0 Type-B Out (3)
Output DP Out (HDMI Out), Audio Out (Optical (SPDIF)), RJ45 (LAN)
Output
  • DP Out (HDMI Out), Audio Out (Optical (SPDIF)), RJ45 (LAN)

MECHANICAL

Bezel Color Black
Bezel Color
  • Black
Bezel Width 18 / 18 / 18 / 18 mm (T/R/L/B)
Bezel Width
  • 18 / 18 / 18 / 18 mm (T/R/L/B)
Weight 119.3 lb. / 54.1 kg
Weight
  • 119.3 lb. / 54.1 kg
Packed Weight 167.3 lb. / 75.9 kg
Packed Weight
  • 167.3 lb. / 75.9 kg
Monitor Dimensions (W x H x D) 98 x 42.3 x 3 in. 2,490 x 1,074 x 77 mm
Monitor Dimensions (W x H x D)
  • 98 x 42.3 x 3 in. 2,490 x 1,074 x 77 mm
Carton Dimensions (W x H x D) 105 x 11 x 48.5 in. 2,668 x 280 x 1,233 mm
Carton Dimensions (W x H x D)
  • 105 x 11 x 48.5 in. 2,668 x 280 x 1,233 mm
Handle Yes
Handle
  • Yes
VESATM Standard Mount Interface 1,000 x 600 mm
VESATM Standard Mount Interface
  • 1,000 x 600 mm

KEY FEATURE

Key Feature Internal Memory (64 GB), Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Local Key Operation (Power Key), Android 13.0 (AOSP), USB Plug & Play, Fail Over, Multi-screen (External Source), Screen Share (LG CreateBoard Share), 3rd Party Compatibility (Crestron v2.0), PM Mode, Wake on LAN, Network Ready, HDMI-CEC
Key Feature
  • Internal Memory (64 GB), Wi-Fi (Slot Type), Auto Brightness Sensor, Power Indicator, Local Key Operation (Power Key), Android 13.0 (AOSP), USB Plug & Play, Fail Over, Multi-screen (External Source), Screen Share (LG CreateBoard Share), 3rd Party Compatibility (Crestron v2.0), PM Mode, Wake on LAN, Network Ready, HDMI-CEC

ENVIRONMENT CONDITIONS

Operation Temperature 32°F to 104°F / 0°C to 40°C
Operation Temperature
  • 32°F to 104°F / 0°C to 40°C
Operation Humidity 10% to 90%
Operation Humidity
  • 10% to 90%

POWER

Power Supply AC 100-240 V ~, 50/60 Hz
Power Supply
  • AC 100-240 V ~, 50/60 Hz
Power Type Built-In Power
Power Type
  • Built-In Power
Power Consumption - Typ. / Max. 412 W / 632 W
Power Consumption - Typ. / Max.
  • 412 W / 632 W
Power Consumption - BTU (British Thermal Unit) 1,406 BTU/Hr (Typ.), 2,156 BTU/Hr (Max
Power Consumption - BTU (British Thermal Unit)
  • 1,406 BTU/Hr (Typ.), 2,156 BTU/Hr (Max
Power Consumption - DPM 0.5 W
Power Consumption - DPM
  • 0.5 W
Power Consumption - Power Off 0.5 W
Power Consumption - Power Off
  • 0.5 W

SOUND

Speaker 16 W x 2 + 15 W
Speaker
  • 16 W x 2 + 15 W

REGULATORY & CERTIFICATIONS

Safety UL / cUL
Safety
  • UL / cUL
EMC FCC Class "A" / CE
EMC
  • FCC Class "A" / CE
ERP / Energy Star Yes / Yes
ERP / Energy Star
  • Yes / Yes

OPS Compatibility

OPS Type Compatible Yes (Slot)
OPS Type Compatible
  • Yes (Slot)
OPS Power Built-in Yes
OPS Power Built-in
  • Yes

SOFTWARE COMPATIBILITY

Software Compatibility LG ConnectedCare DMS
Software Compatibility
  • LG ConnectedCare DMS

Language

Language English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Russian, Portugues (Europe), Dutch, Czech, Greek, T rkiye, Swedish, Finnish, Norwegian, Danish
Language
  • English, French, German, Spanish, Italian, Korean, Chinese (Simplified), Chinese (Original), Portugues (Brazil), Russian, Portugues (Europe), Dutch, Czech, Greek, T rkiye, Swedish, Finnish, Norwegian, Danish

WARRANTY & ACCESSORIES

Warranty 3 Year Limited
Warranty
  • 3 Year Limited
Basic Accessories Power Cord, HDMI Cable, Remote Controller, S107B, Wall Mount
Basic Accessories
  • Power Cord, HDMI Cable, Remote Controller, S107B, Wall Mount
Optional Accessory OPSJ-5LDJA (4K)
Optional Accessory
  • OPSJ-5LDJA (4K)

Android System

Android System SoC (A76x4 + A55 x 4), GPU (Mali-G610 MP4), Internal Memory (Storage (64 GB), RAM (8 GB)), Wi-Fi (802.11a/b/g/n/ac/ax (Wi-Fi 6)), Gigabit LAN, Bluetooth 5.2
Android System
  • SoC (A76x4 + A55 x 4), GPU (Mali-G610 MP4), Internal Memory (Storage (64 GB), RAM (8 GB)), Wi-Fi (802.11a/b/g/n/ac/ax (Wi-Fi 6)), Gigabit LAN, Bluetooth 5.2

Product Dedicated Features

Product Dedicated Features DPM, Power On/Off Schedule, Power On Default (Auto Power On), Customized Background, Input Auto Switching, LG RS-232C Command, Power on Status, No Signal Power Off, No IR Power Off, 100 W PD (w/USB-C)
Product Dedicated Features
  • DPM, Power On/Off Schedule, Power On Default (Auto Power On), Customized Background, Input Auto Switching, LG RS-232C Command, Power on Status, No Signal Power Off, No IR Power Off, 100 W PD (w/USB-C)

Item & Dimensions

Manufacturer LG Appliances
Manufacturer
  • LG Appliances
