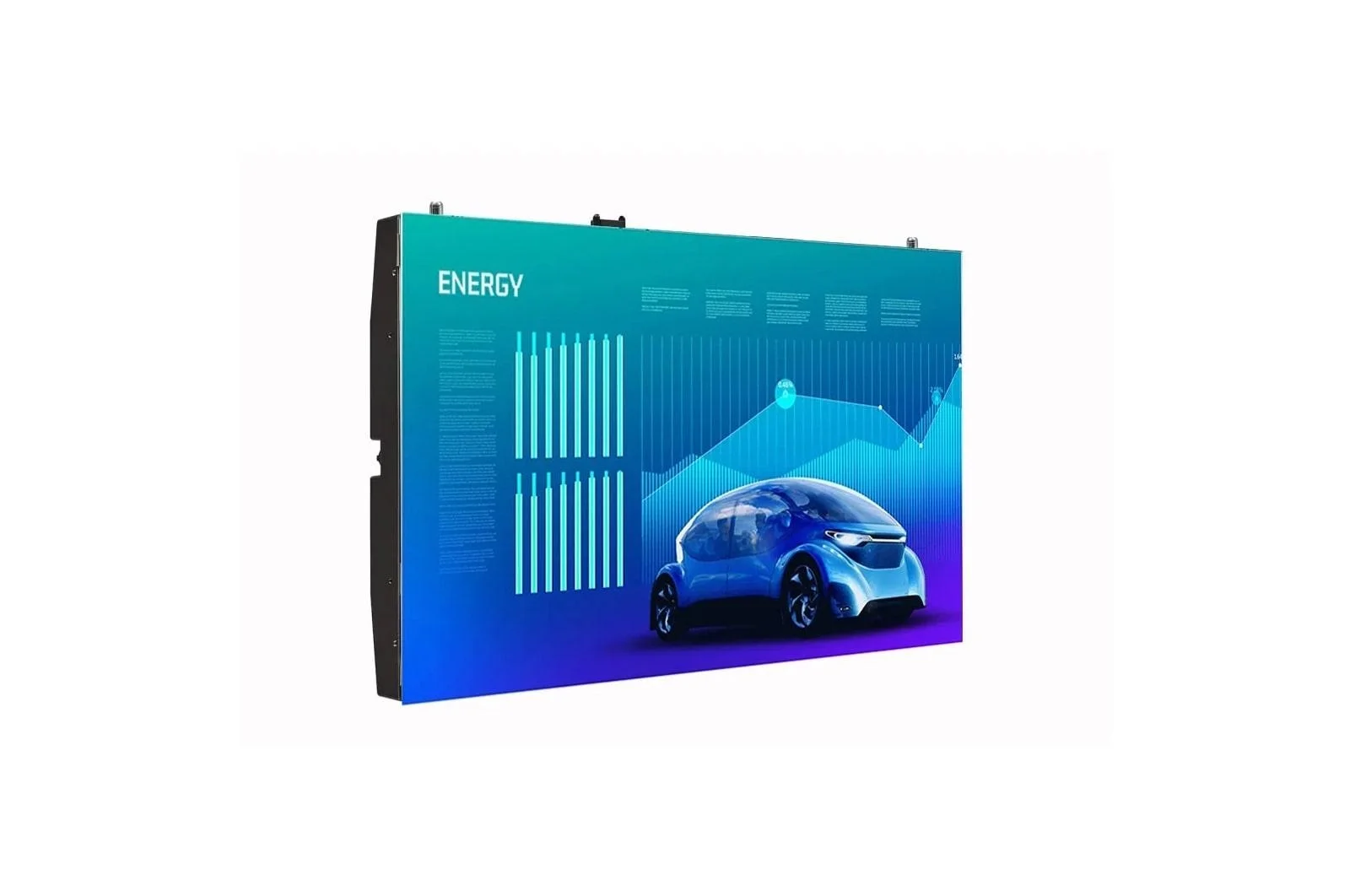

.78 Mm Magnit Pro Microled For Megapixel Vr Helios® Controller, With Ip50 Front & Ip20 Rear, & Lg Software Compatible
SKU: LSAP007
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Powerful UI/UX with MVR Controller
With the MVR controller, LSAP has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available. MRV Controller purchased separately.
Enhanced Uniformity with LG Surface Treatment (LST) Technology
LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces color distortion from virtually any angle, delivering a wide-angle viewing experiences. This technology ensures remarkable color uniformity, resulting in stunning image quality.
Achieving True Black with Direct Chip Mounting
LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards combined with the black coating technology, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black color, ensuring that every image is rich, vibrant, and true to life.
*Based on comparison against LG's conventional LED Signage
Colors as Intended
The narrow wavelength of the LED chip allows uniform color across the screen. And with the support of Gamut Transfer technology, color is displayed close to the original color. This can be essential for some businesses.
Care Less with Sturdy Design
Through several layers of coated film, LG MAGNIT can protect its LED chips from risks caused by water drops, dust, static electricity or physical impacts. Considering that it is usually installed in public places where many people come and go, its stability is vitally important to minimize unforeseen accidents. The front is IP50 rated, while the back is IP20 rated.
*Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.
With the MVR controller, LSAP has the capability to utilize powerful UX and UI functionalities. Real-Time Mapping and Multi-User Control, Superior Color Control, Hyper-Speed Seam Correction using a game controller, and Monitoring and Diagnostics through connected diagnostics are all available. MRV Controller purchased separately.
Enhanced Uniformity with LG Surface Treatment (LST) Technology
LG MAGNIT's innovative Chip Transfer and Surface Treatment Technology enhances white uniformity and reduces color distortion from virtually any angle, delivering a wide-angle viewing experiences. This technology ensures remarkable color uniformity, resulting in stunning image quality.
Achieving True Black with Direct Chip Mounting
LG MAGNIT's advanced and precise method for direct bonding micro-sized chips onto circuit boards combined with the black coating technology, creates a stunning black expression that stands out compared to SMD-type LED displays. This makes it the ideal choice for displaying content that requires deep black color, ensuring that every image is rich, vibrant, and true to life.
*Based on comparison against LG's conventional LED Signage
Colors as Intended
The narrow wavelength of the LED chip allows uniform color across the screen. And with the support of Gamut Transfer technology, color is displayed close to the original color. This can be essential for some businesses.
Care Less with Sturdy Design
Through several layers of coated film, LG MAGNIT can protect its LED chips from risks caused by water drops, dust, static electricity or physical impacts. Considering that it is usually installed in public places where many people come and go, its stability is vitally important to minimize unforeseen accidents. The front is IP50 rated, while the back is IP20 rated.
*Based on in-house testing in accordance with the certification criteria, or under actual operating conditions.
- IP50 Rating Front and IP20 Rating Rear
- Compatible with Megapixel VR HELIOS® Controller
- Experience True Black and Stunning Colors (HDR10)
- Front & Rear Service Access for Easy Install & Maintance
- .78 mm Pixel Pitch COB
- Lifetime up to 100,000 hours
Rebates
view available rebates
.78 Mm Magnit Pro Microled For Megapixel Vr Helios® Controller, With Ip50 Front & Ip20 Rear, & Lg Software Compatible
Misc Collection
Specifications
Specifications
Features
IP50 Rating Front and IP20 Rating Rear, Compatible with Megapixel VR HELIOS® Controller, Experience True Black and Stunning Colors (HDR10), Front & Rear Service Access for Easy Install & Maintance, .78 mm Pixel Pitch COB, Lifetime up to 100,000 hours
- IP50 Rating Front and IP20 Rating Rear
- Compatible with Megapixel VR HELIOS® Controller
- Experience True Black and Stunning Colors (HDR10)
- Front & Rear Service Access for Easy Install & Maintance
- .78 mm Pixel Pitch COB
- Lifetime up to 100,000 hours
PHYSICAL PARAMETERS
Pixel Configuration
COB
Pixel Configuration
- COB
Pixel Pitch(mm)
0.78
Pixel Pitch(mm)
- 0.78
Module Resolution (WxH)
384 x 144
Module Resolution (WxH)
- 384 x 144
Module Dimensions (W x H)
11.8 x 4.4 in. 300 x 112.5 mm
Module Dimensions (W x H)
- 11.8 x 4.4 in. 300 x 112.5 mm
Weight per Module
0.4 lbs. / 0.18 kg
Weight per Module
- 0.4 lbs. / 0.18 kg
No. of Modules per Cabinet (WxH)
2 x 3
No. of Modules per Cabinet (WxH)
- 2 x 3
Cabinet Resolution (WxH)
768 x 432
Cabinet Resolution (WxH)
- 768 x 432
Cabinet Dimensions (W x H x D, mm)
23.6 x 13.3 x 1.8 in. 600 x 337.5 x 44.9 mm
Cabinet Dimensions (W x H x D, mm)
- 23.6 x 13.3 x 1.8 in. 600 x 337.5 x 44.9 mm
Cabinet Surface Area
2.2 ft / 0.2 m
Cabinet Surface Area
- 2.2 ft / 0.2 m
Weight per Cabinet
17.2 lbs. / 7.8 kg
Weight per Cabinet
- 17.2 lbs. / 7.8 kg
Weight per Unit Area
7.9 lbs/ft2 / 38.5 kg/m2
Weight per Unit Area
- 7.9 lbs/ft2 / 38.5 kg/m2
Physical Pixel Density (pixels/m )
1,638,400
Physical Pixel Density (pixels/m )
- 1,638,400
Flatness of Cabinet (mm)
0.5
Flatness of Cabinet (mm)
- 0.5
Cabinet Material
Die-casting Aluminum
Cabinet Material
- Die-casting Aluminum
Service Access
Front
Service Access
- Front
OPTICAL SPECIFICATIONS
Brightness (After Calibration, nits)
Max. 600
Brightness (After Calibration, nits)
- Max. 600
Color Temperature (K)
2,000~10,000 / Default 6,504
Color Temperature (K)
- 2,000~10,000 / Default 6,504
Visual Viewing Angle (Horizontal)
150°
Visual Viewing Angle (Horizontal)
- 150°
Visual Viewing Angle (Vertical)
150°
Visual Viewing Angle (Vertical)
- 150°
Brightness Uniformity
0.95
Brightness Uniformity
- 0.95
Color Uniformity
0.02Cx,Cy
Color Uniformity
- 0.02Cx,Cy
Contrast Ratio
17,000:1 @10lux
Contrast Ratio
- 17,000:1 @10lux
Processing Depth (bit)
22bit Internal processing (HDR10)
Processing Depth (bit)
- 22bit Internal processing (HDR10)
ELECTRICAL SPECIFICATIONS
Max. Power Consumption per Cabinet (W)
70
Max. Power Consumption per Cabinet (W)
- 70
Avg. Power Consumption per Cabinet (W)
40
Avg. Power Consumption per Cabinet (W)
- 40
Max. Power Consumption (W/m2)
346
Max. Power Consumption (W/m2)
- 346
Max. Heat Dissipation per Cabinet (BTU/hr)
239
Max. Heat Dissipation per Cabinet (BTU/hr)
- 239
Avg. Heat Dissipation per Cabinet (BTU/hr)
136
Avg. Heat Dissipation per Cabinet (BTU/hr)
- 136
Max. Heat Dissipation (BTU/h/m2)
1,179
Max. Heat Dissipation (BTU/h/m2)
- 1,179
Power Supply (Vac)
100 to 240
Power Supply (Vac)
- 100 to 240
Frame Rate (Hz)
23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Frame Rate (Hz)
- 23.98 / 24 / 25 / 29.97 / 30 / 50 / 59.94 / 60
Refresh Rate (Hz)
7,680
Refresh Rate (Hz)
- 7,680
OPERATION SPECIFICATIONS
LED Lifetime* (Half brightness)
100,000 Hours
LED Lifetime* (Half brightness)
- 100,000 Hours
Operating Temperature
32°F to +104°F / 0°C to +40°C
Operating Temperature
- 32°F to +104°F / 0°C to +40°C
Operating Humidity
10% to 80% RH
Operating Humidity
- 10% to 80% RH
IP Rating Front
IP50
IP Rating Front
- IP50
IP Rating Rear
IP20
IP Rating Rear
- IP20
Regulatory
Certifications
Safety 62368-1 EMC Class A
Certifications
- Safety 62368-1 EMC Class A
Certifications (Fire Protection)
BS476 Part7 Class1
Certifications (Fire Protection)
- BS476 Part7 Class1
Warranty & Other
Warranty
3 Year Limited Up to 5 w/ ExtendedCare (Optional)
Warranty
- 3 Year Limited Up to 5 w/ ExtendedCare (Optional)
Environmental
RoHS, REACH
Environmental
- RoHS, REACH
Controller
MEGAPIXEL(HELIOS)
Controller
- MEGAPIXEL(HELIOS)
90 degree corner cut
No
90 degree corner cut
- No
Item & Dimensions
Manufacturer
LG Appliances
Manufacturer
- LG Appliances
