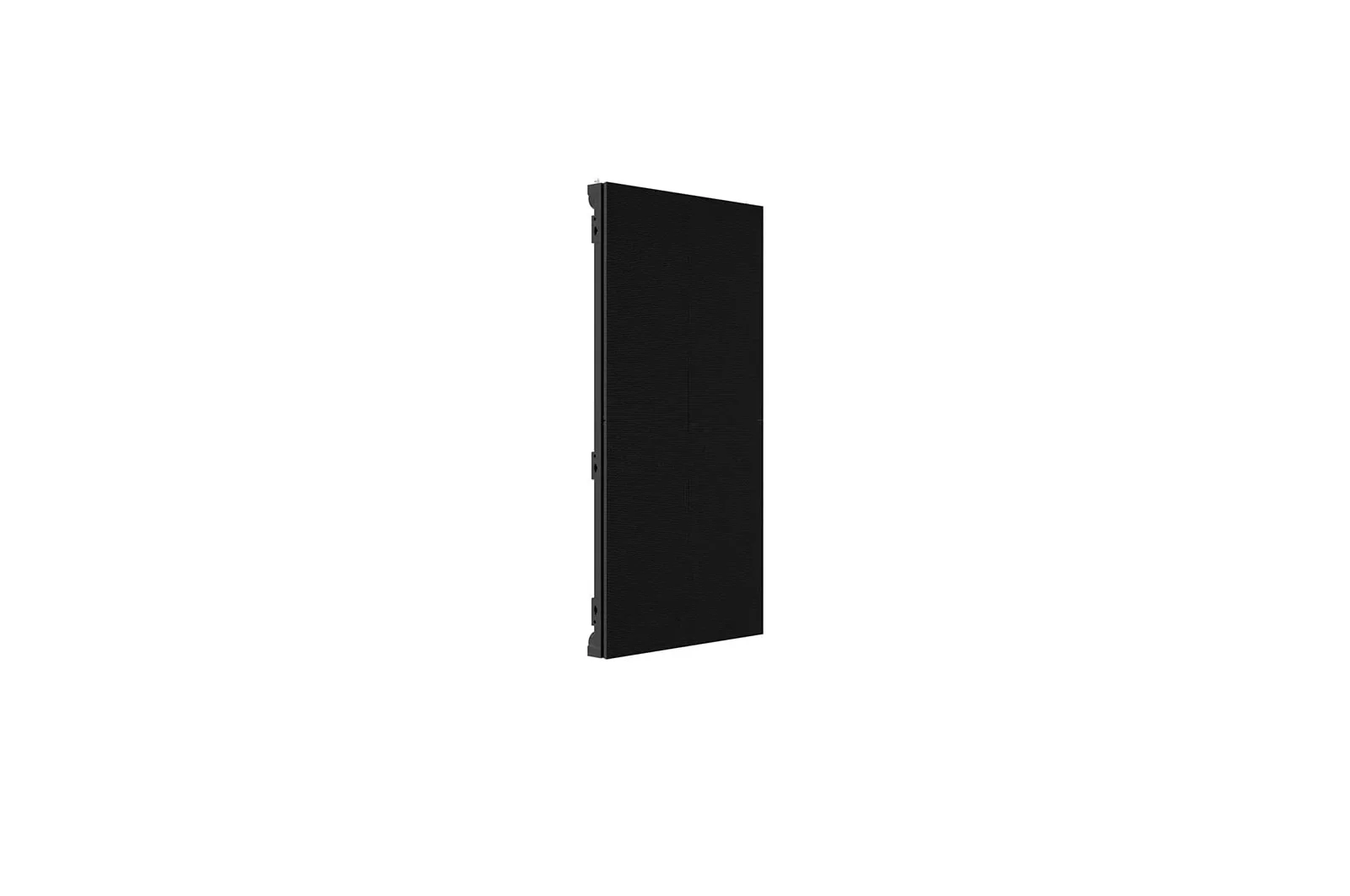

Gsca 4.63Mm Pixel Pitch Versatile Outdoor Led With 5,000Nits Brightness, Ip65, 90° Corner Option, Two Cabinet Options, Easy Access & Maintenance

Name: Misc Miscellaneous
Brand: LG Appliances

Misc Collection by LG Appliances

SKU: GSCA046

Be the first to write a review

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Disclaimer

add

Description

Easy Maintenance
The GSCA series applied a simple Lock Fixing method which requires no additional tools, making it easier to replace LED modules or power/data units.
IP Rated Weatherproof & 90° Corner Design
The cabinet is IP65 certified, allowing stable operation unaffected by weather and harsh outdoor environments. Also, if you add a 90° corner option**, the GSCA series can deliver virtually flawless content even when installed on the corners.

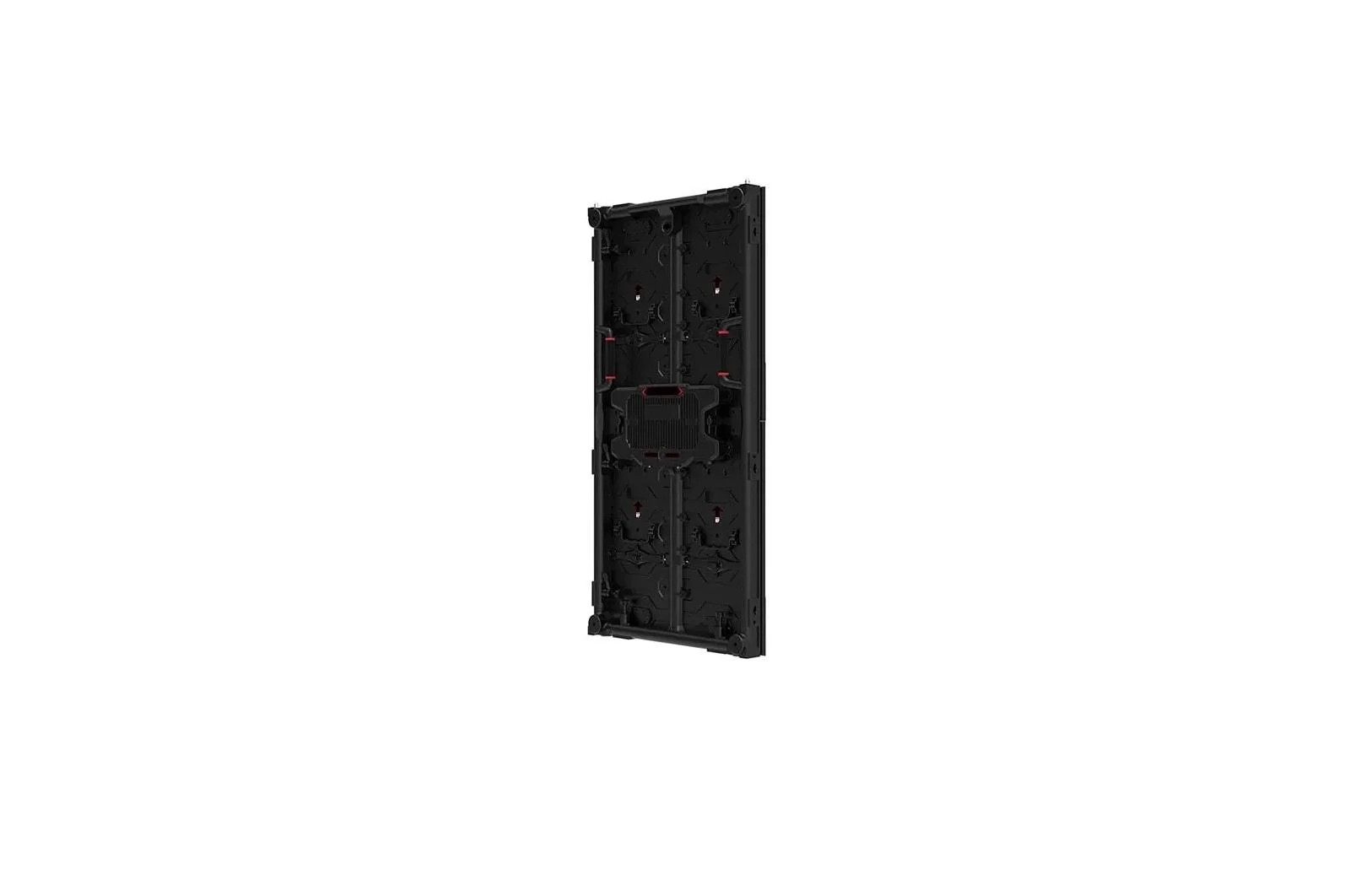

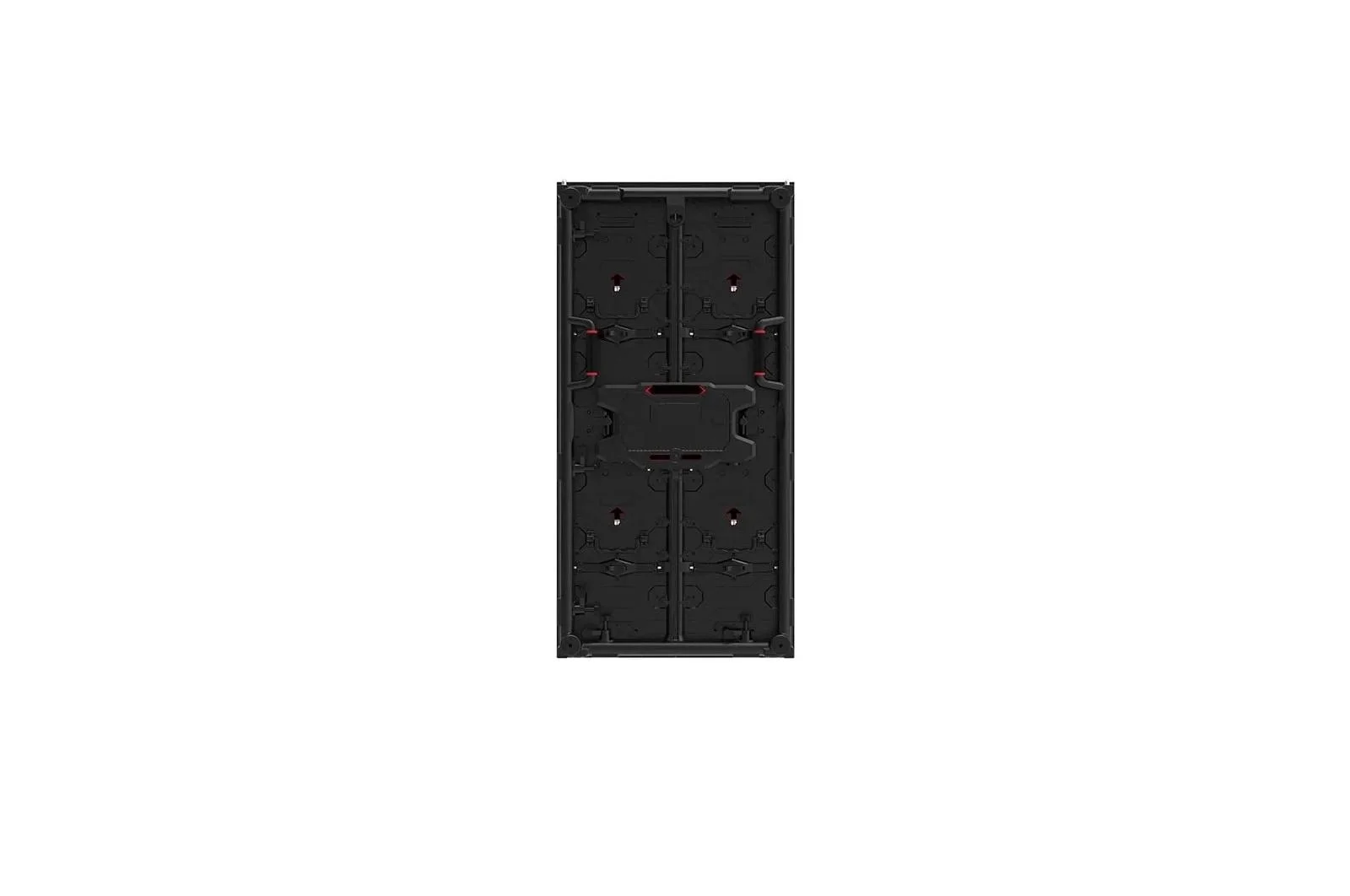

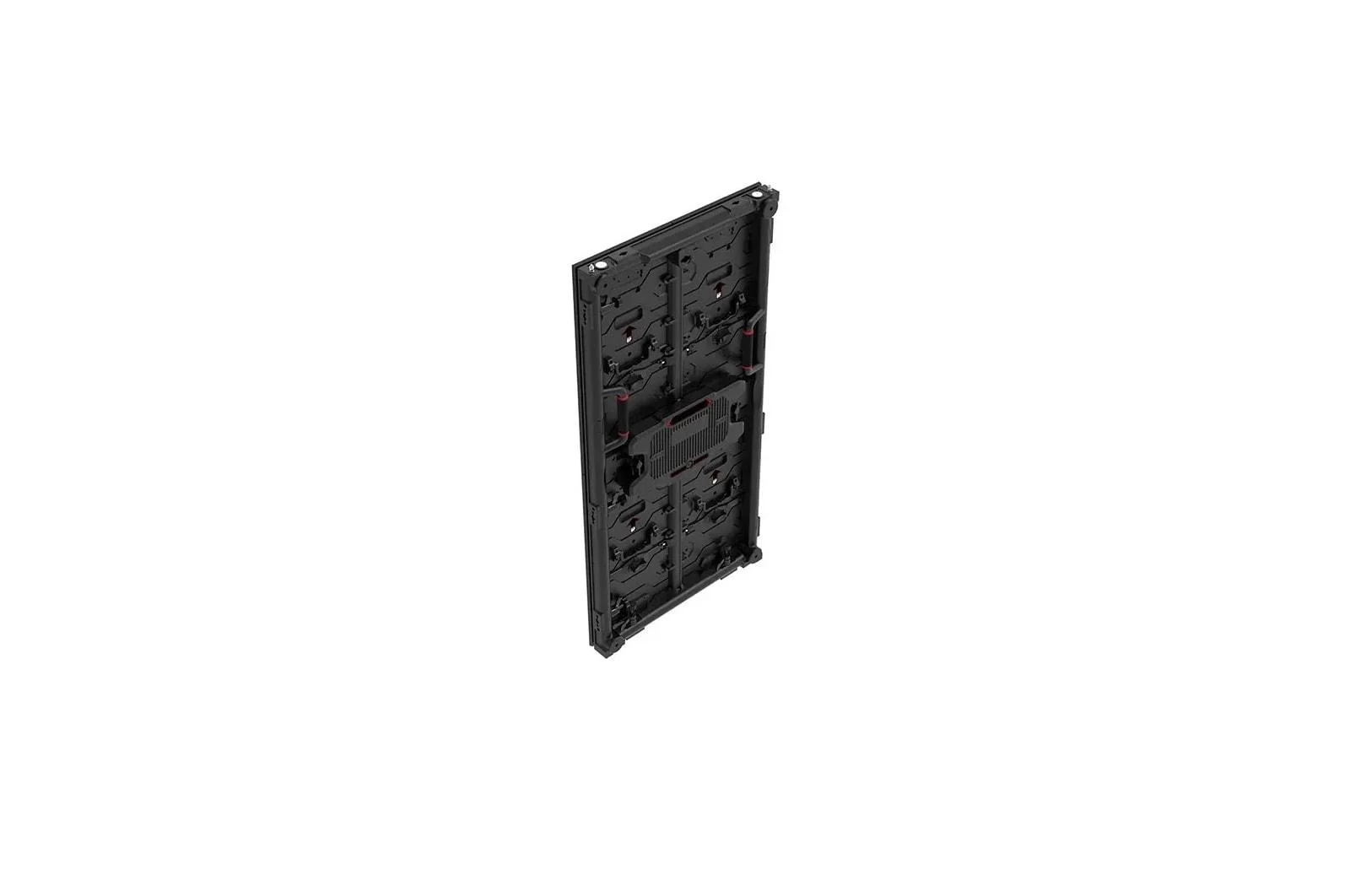

Front or Rear Serviceability
The product offers either front access or rear access, allowing customers to choose installation options according to their environment and minimizes limitations in installation and maintenance.
Fast Installation
Various factors including magnets on the top and bottom, positioning pins, handles and fast locks help installers easily set up and dismantle the LED screens without additional tools.
*Image for illustration purposes only.
Two Cabinet Options

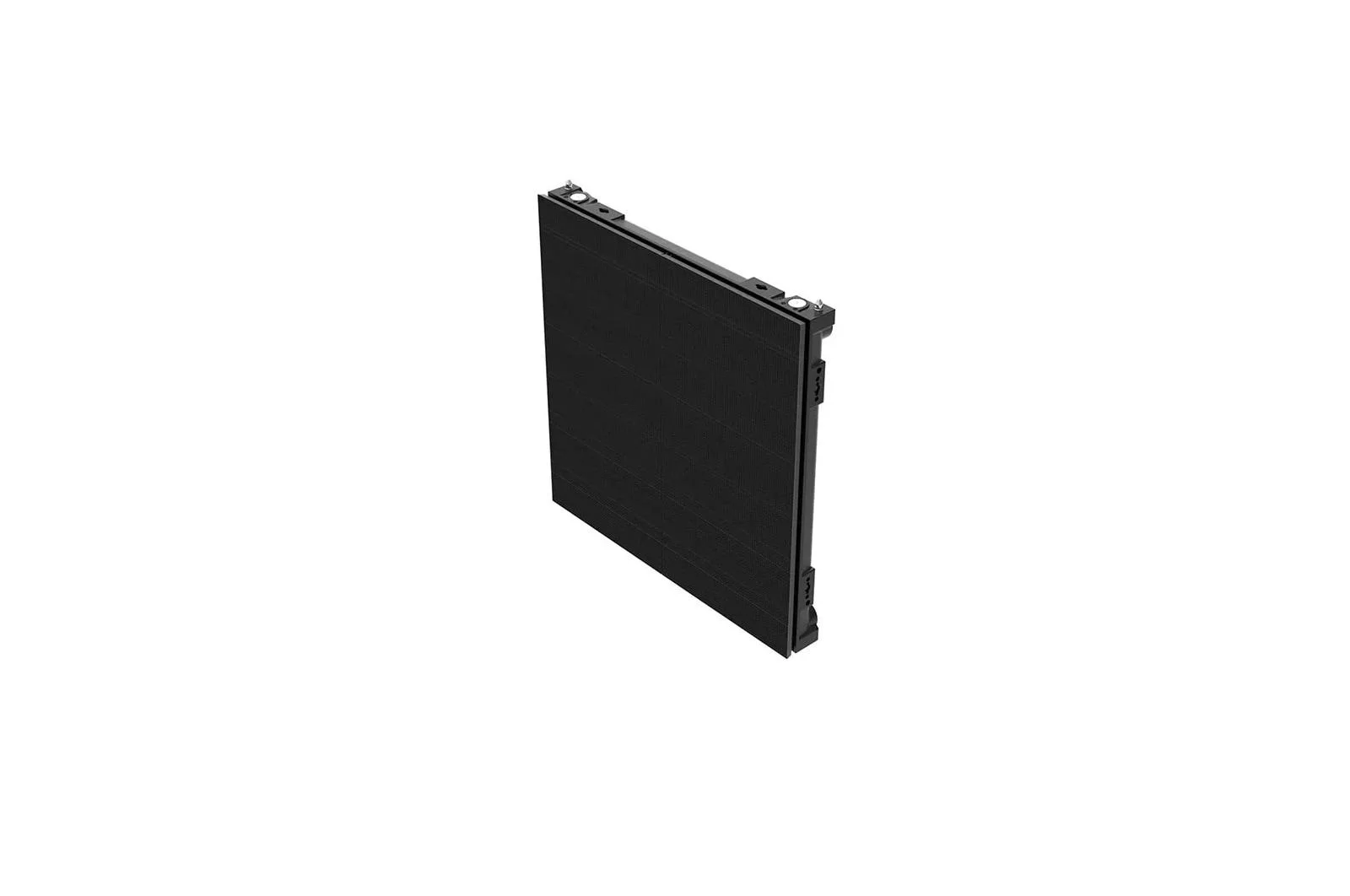

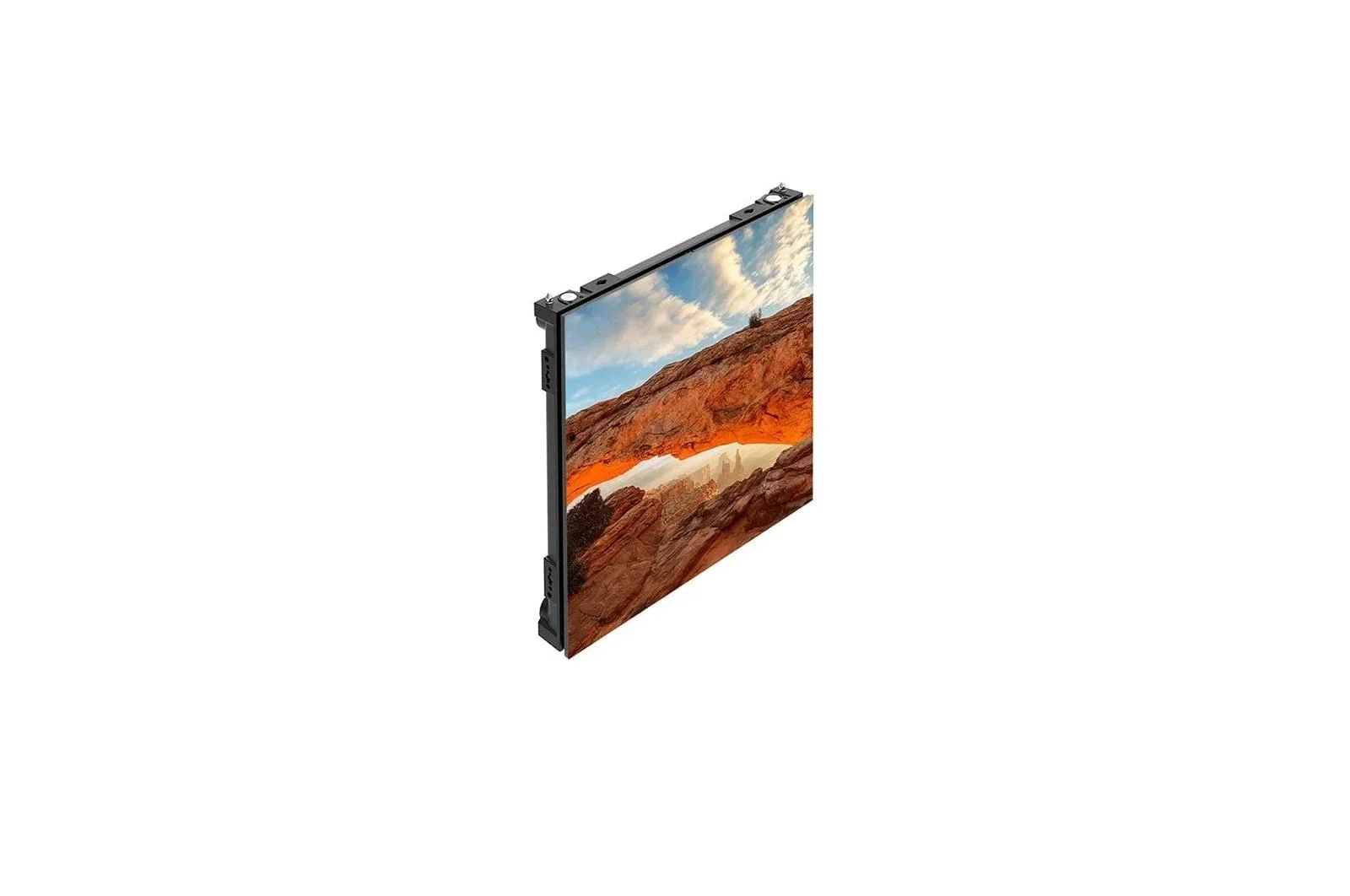

The GSCA series offers two sizes of cabinets enabling a screen size configuration that fits perfectly with customer needs.
*Image for illustration purposes only.

Two Cabinet & 90 Corner Option Available
Brightness: 5,000 cd/m
Fast Assembly and Easy Maintenance
IP65 Weatherproof Design
Pixel Pitch: 4.63mm
Great for Rental & Staging Use

Rebates

view available rebates

Gsca 4.63Mm Pixel Pitch Versatile Outdoor Led With 5,000Nits Brightness, Ip65, 90° Corner Option, Two Cabinet Options, Easy Access & Maintenance

Misc Collection

Specifications

Features

Two Cabinet & 90 Corner Option Available, Brightness: 5,000 cd/m, Fast Assembly and Easy Maintenance, IP65 Weatherproof Design, Pixel Pitch: 4.63mm, Great for Rental & Staging Use

Two Cabinet & 90 Corner Option Available
Brightness: 5,000 cd/m
Fast Assembly and Easy Maintenance
IP65 Weatherproof Design
Pixel Pitch: 4.63mm
Great for Rental & Staging Use

PHYSICAL PARAMETER

Pixel Configuration 3 in 1 SMD

Pixel Configuration

3 in 1 SMD

Pixel Pitch (mm) 4.63

Pixel Pitch (mm)

4.63

Module Resolution (W x H) 54 x 108

Module Resolution (W x H)

54 x 108

Module Dimensions (W x H, mm) 250 x 500

Module Dimensions (W x H, mm)

250 x 500

Weight per Module (kg) 1.40

Weight per Module (kg)

1.40

No. of Modules per Cabinet (W x H) 2 x 2/2 x 1 (Half-sized)

No. of Modules per Cabinet (W x H)

2 x 2/2 x 1 (Half-sized)

Cabinet Resolution (W x H) 108 x 216/108 x 108 (Half-sized)

Cabinet Resolution (W x H)

108 x 216/108 x 108 (Half-sized)

Cabinet Dimensions (W x H x D) 500 x 1,000 x 68/500 x 500 x 68 (Half-sized)

Cabinet Dimensions (W x H x D)

500 x 1,000 x 68/500 x 500 x 68 (Half-sized)

Cabinet Surface Area (m ) 0.500/0.250 (Half-sized)

Cabinet Surface Area (m )

0.500/0.250 (Half-sized)

Weight per Cabinet (kg/cabinet) 12.7/8.1 (Half-sized)

Weight per Cabinet (kg/cabinet)

12.7/8.1 (Half-sized)

Weight per Square Meter (kg/m ) 25.4/32.2 (Half-sized)

Weight per Square Meter (kg/m )

25.4/32.2 (Half-sized)

Physical Pixel Density (pixels/m ) 46,656

Physical Pixel Density (pixels/m )

46,656

Flatness of Cabinet 0.3mm

Flatness of Cabinet

0.3mm

Cabinet Material Die Casting, Magnesium Alloy

Cabinet Material

Die Casting, Magnesium Alloy

Service Access Front or Rear (One Option Only)

Service Access

Front or Rear (One Option Only)

OPTICAL PARAMETER

Brightness 5,000

Brightness

5,000

Color Temperature 6,500

Color Temperature

6,500

Visual Viewing Angle (Horizontal/Vertical) 160/135

Visual Viewing Angle (Horizontal/Vertical)

160/135

Brightness Uniformity 97%

Brightness Uniformity

Color Uniformity 0.003Cx, Cy

Color Uniformity

0.003Cx, Cy

Contrast Ratio 11,000

Contrast Ratio

11,000

Processing Depth (bit) 14

Processing Depth (bit)

ELECTRICAL PARAMETER

Power Consumption (W/cabinet, Max.) 300/150 (Half-sized)

Power Consumption (W/cabinet, Max.)

300/150 (Half-sized)

Power Consumption (W/cabinet, Avg.) 100/50 (Half-sized)

Power Consumption (W/cabinet, Avg.)

100/50 (Half-sized)

Power Consumption (W/m , Max.) 600

Power Consumption (W/m , Max.)

Power Supply (V) 100 to 240

Power Supply (V)

100 to 240

Frame Rate (Hz) 50/60

Frame Rate (Hz)

50/60

Refresh Rate (Hz) 3,840

Refresh Rate (Hz)

3,840

OPERATION CONDITIONS

Lifetime (Hours to Half Brightness) 100,000

Lifetime (Hours to Half Brightness)

100,000

Operating Temperature (°C) -20 to +45

Operating Temperature (°C)

-20 to +45

Operating Humidity 10-99% RH

Operating Humidity

10-99% RH

IP Rating IP65

IP Rating

IP65

CERTIFICATION

Certification CE, FCC, ETL

Certification

CE, FCC, ETL

ENVIRONMENT

Environment RoHS

Environment

RoHS
