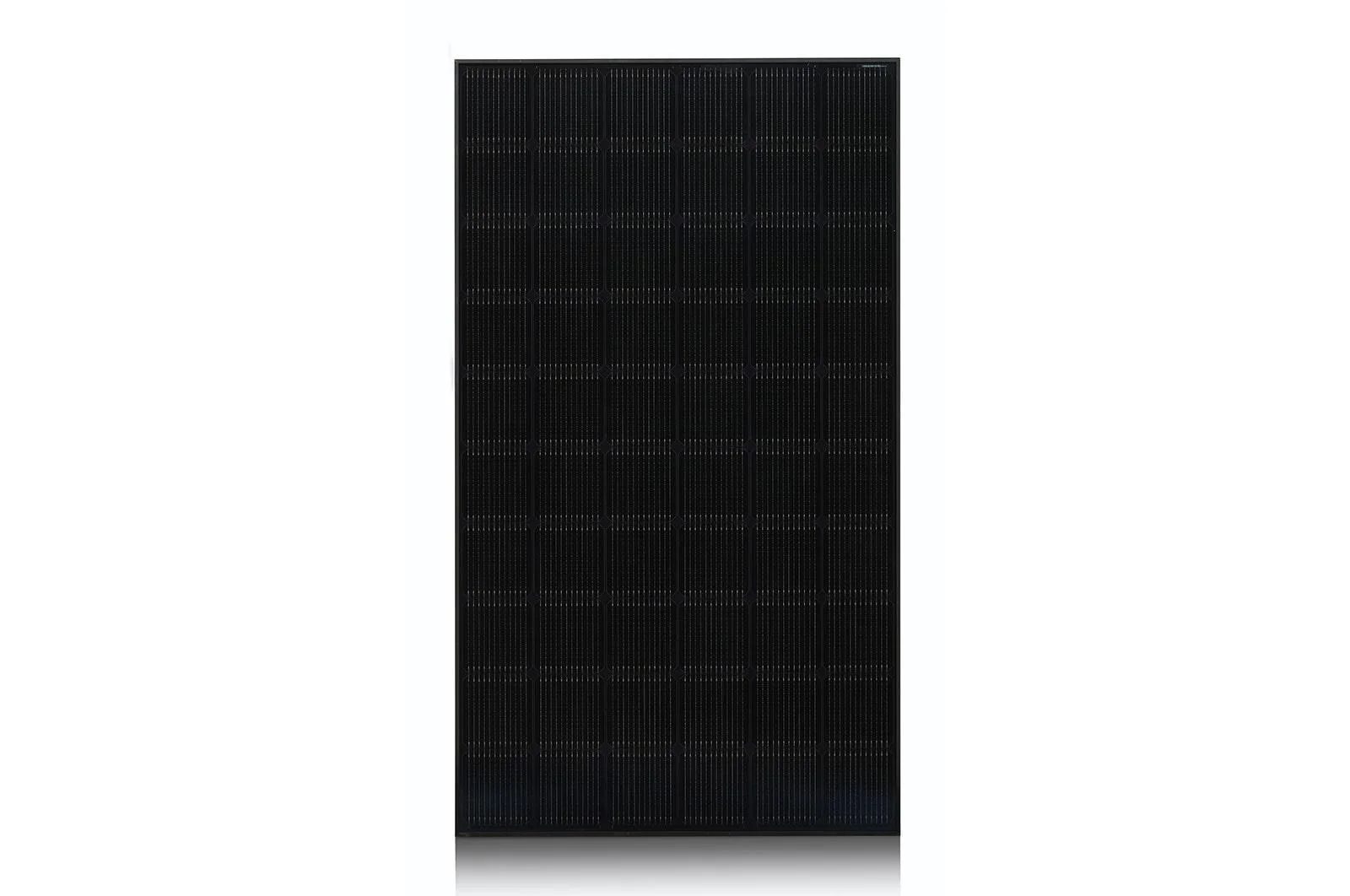

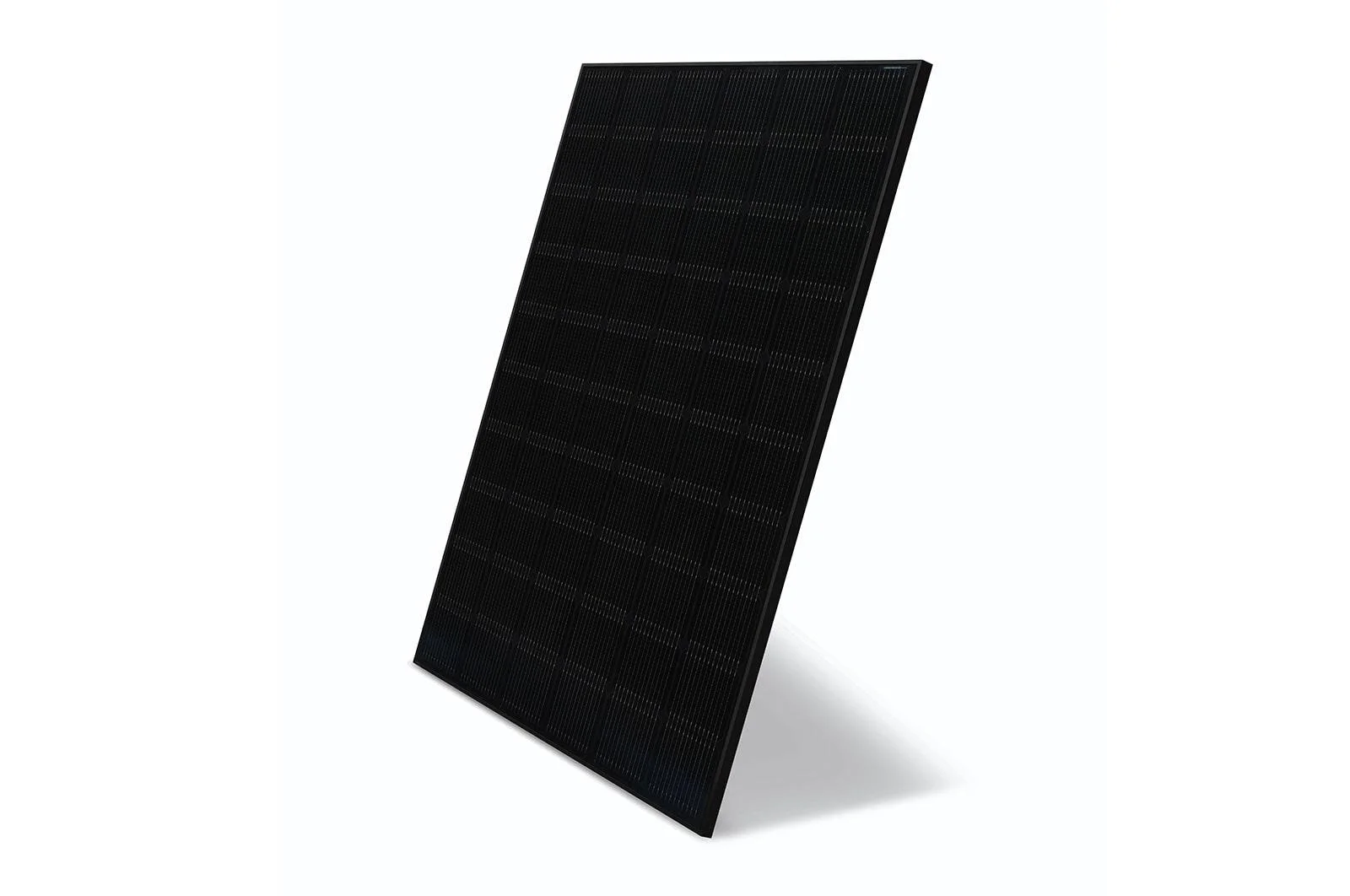

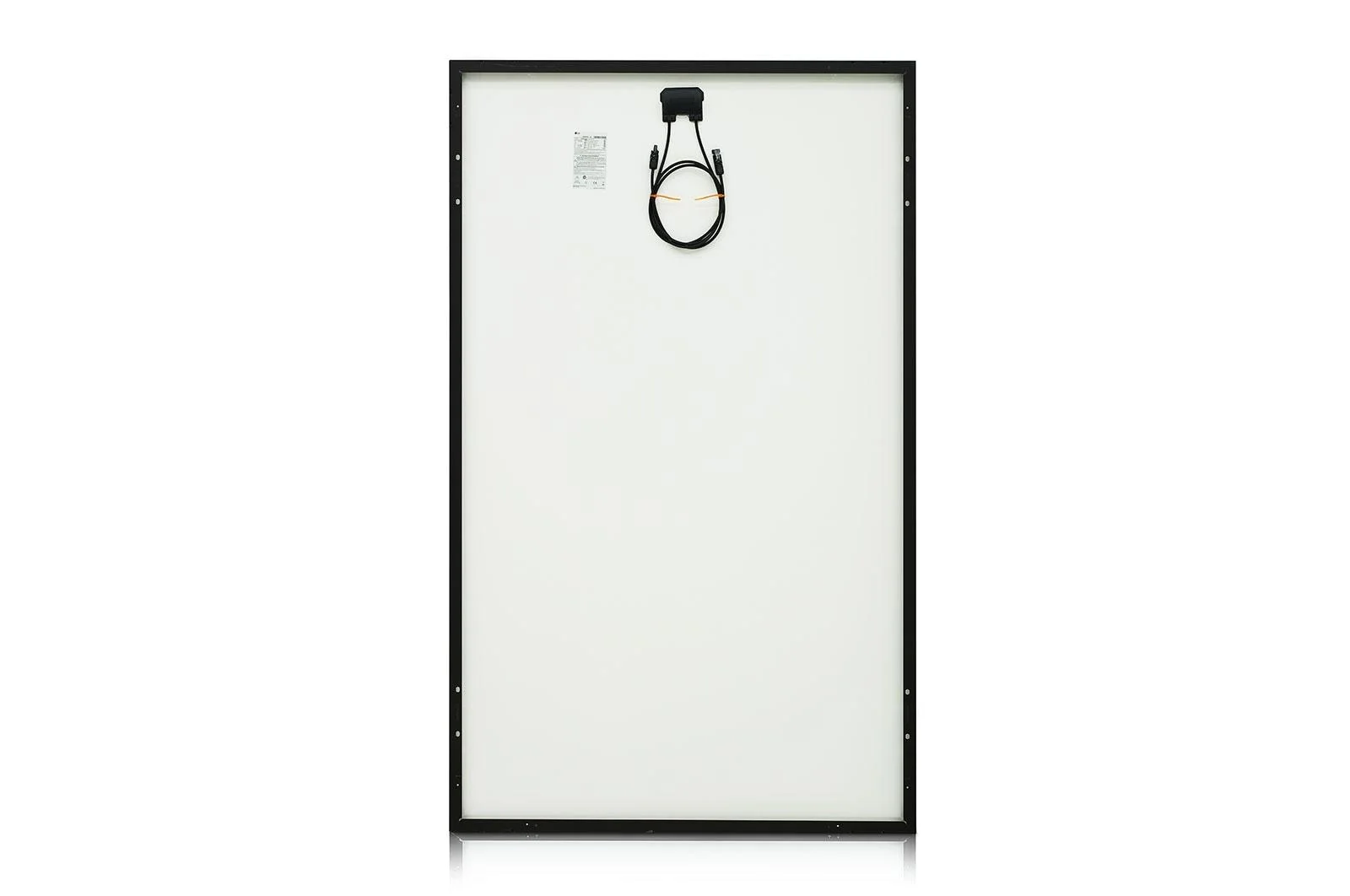

365W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 20.1%, Connector Type: Mc4
SKU: LG365N1KA6
Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Description
Double-Sided Cell Structure
The rear of the cell used in the LG NeON® 2 Black contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.
The rear of the cell used in the LG NeON® 2 Black contributes to generation, just like the front; the light beam reflected from the rear of the module is reabsorbed to generate additional power.
- 20.1% Module Efficiency
- 25-Year Limited Warranty
- Solid Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel for Home
- Attractive Roof Aesthetic
Rebates
view available rebates
365W High Efficiency Lg Neon® 2 Solar Panel For Home With 60 Cells (6 X 10), Module Efficiency: 20.1%, Connector Type: Mc4
Misc Collection
Specifications
Specifications
Features
20.1% Module Efficiency, 25-Year Limited Warranty, Solid Performance on a Sunny Day, Award-Winning Cello Technology™, 60 Cell (6 x 10) Solar Panel for Home, Attractive Roof Aesthetic
- 20.1% Module Efficiency
- 25-Year Limited Warranty
- Solid Performance on a Sunny Day
- Award-Winning Cello Technology™
- 60 Cell (6 x 10) Solar Panel for Home
- Attractive Roof Aesthetic
General Data
Cell Properties (Material/Type)
Monocrystalline/N-type
Cell Properties (Material/Type)
- Monocrystalline/N-type
Cell Maker
LG
Cell Maker
- LG
Cell Configuration
60 Cells (6 x 10)
Cell Configuration
- 60 Cells (6 x 10)
Number of Busbars
12EA
Number of Busbars
- 12EA
Module Dimensions (L x W x H)
1,740mm x 1,042mm x 40mm
Module Dimensions (L x W x H)
- 1,740mm x 1,042mm x 40mm
Weight
18.6kg
Weight
- 18.6kg
Glass (Material)
Tempered Glass with AR Coating
Glass (Material)
- Tempered Glass with AR Coating
Backsheet (Color)
Black
Backsheet (Color)
- Black
Frame (Material)
Anodized Aluminium
Frame (Material)
- Anodized Aluminium
Junction Box (Protection Degree)
IP 68 with 3 Bypass Diodes
Junction Box (Protection Degree)
- IP 68 with 3 Bypass Diodes
Cables (Length)
1,100mm x 2EA
Cables (Length)
- 1,100mm x 2EA
Connector (Type/Maker)
MC 4/MC
Connector (Type/Maker)
- MC 4/MC
CERTIFICATIONS & WARRANTY
Certifications
IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 61730-1 2017, UL61730-2 2017, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test)
Certifications
- IEC 61215-1/-1-1/2:2016, IEC 61730-1/2:2016, ISO 9001, ISO 14001, ISO 50001, OHSAS 18001, UL 61730-1 2017, UL61730-2 2017, IEC 61701 (Salt Mist Corrosion Test), IEC 62716 (Ammonia Corrosion Test)
Salt Mist Corrosion Test
TBD
Salt Mist Corrosion Test
- TBD
Ammonia Corrosion Test
TBD
Ammonia Corrosion Test
- TBD
Module Fire Performance
Type 2
Module Fire Performance
- Type 2
Fire Rating
Class C (UL 790, ULC/ORD C 1703)
Fire Rating
- Class C (UL 790, ULC/ORD C 1703)
Product Warranty
25 Year Limited
Product Warranty
- 25 Year Limited
Output Warranty of Pmax
Linear warranty*
Output Warranty of Pmax
- Linear warranty*
*
Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25
*
- Improved: 1st year 98.5%, from 2-24th year: 0.33%/year down, 90.6% at year 25
Temperature Characteristics
NMOT
42 3
NMOT
- 42 3
Pmax
-0.35
Pmax
- -0.35
Voc
-0.26
Voc
- -0.26
Isc
0.03%/°C
Isc
- 0.03%/°C
*
NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5
*
- NMOT (Nominal Module Operating Temperature):Irradiance 800W/m , Ambient temperature 20 , Wind speed 1m/s, Spectrum AM 1.5
Electrical Properties (NMOT)
Model
TBD
Model
- TBD
Maximum Power (Pmax)
274
Maximum Power (Pmax)
- 274
MPP Voltage (Vmpp)
33.0
MPP Voltage (Vmpp)
- 33.0
MPP Current (Impp)
8.30
MPP Current (Impp)
- 8.30
Open Circuit Voltage (Voc)
39.4
Open Circuit Voltage (Voc)
- 39.4
Short Circuit Current (Isc)
8.78
Short Circuit Current (Isc)
- 8.78
Electrical Properties (STC*)
Model
TBD
Model
- TBD
Maximum Power (Pmax)
365
Maximum Power (Pmax)
- 365
MPP Voltage (Vmpp)
35.1
MPP Voltage (Vmpp)
- 35.1
MPP Current (Impp)
10.41
MPP Current (Impp)
- 10.41
Open Circuit Voltage (Voc)
41.8
Open Circuit Voltage (Voc)
- 41.8
Short Circuit Current (Isc)
10.92
Short Circuit Current (Isc)
- 10.92
Module Efficiency (%)
20.1
Module Efficiency (%)
- 20.1
Power Tolerance (%)
0 ~ +3
Power Tolerance (%)
- 0 ~ +3
Operating Temperature (°C)
-40 ~+85
Operating Temperature (°C)
- -40 ~+85
Maximum System Voltage (V)
1000 (IEC/UL)
Maximum System Voltage (V)
- 1000 (IEC/UL)
Maximum Series Fuse Rating (A)
20
Maximum Series Fuse Rating (A)
- 20
*
STC (Standard Test Condition): Irradiance 1000W/m , cell temperature 25°C, AM 1.5.
*
- STC (Standard Test Condition): Irradiance 1000W/m , cell temperature 25°C, AM 1.5.
Operating Conditions
Operating Temperature [°C]
TBD
Operating Temperature [°C]
- TBD
Maximum System Voltage [V]
TBD
Maximum System Voltage [V]
- TBD
Maximum Series Fuse Rating [A]
TBD
Maximum Series Fuse Rating [A]
- TBD
Mechanical Test Load (Front) [Pa/psf]
TBD
Mechanical Test Load (Front) [Pa/psf]
- TBD
Mechanical Test Load (Rear) [Pa/psf]
TBD
Mechanical Test Load (Rear) [Pa/psf]
- TBD
*
Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005
*
- Based on IEC 61215-2 : 2016 (Test Load = Design Load x Safety Factor(1.5)), Mechanical Test Loads 6,000 Pa/5,400 Pa based on IEC 61215 : 2005
Packaging Configuration
Number of Modules per Pallet [EA]
25
Number of Modules per Pallet [EA]
- 25
Number of Modules per 40ft HQ Container [EA]
650
Number of Modules per 40ft HQ Container [EA]
- 650
Number of Modules per 53' Container [EA]
850
Number of Modules per 53' Container [EA]
- 850
Packaging Box Dimensions (L x W x H) [mm]
1,790 x 1,120 x 1,213
Packaging Box Dimensions (L x W x H) [mm]
- 1,790 x 1,120 x 1,213
Packaging Box Dimensions (L x W x H) [in]
TBD
Packaging Box Dimensions (L x W x H) [in]
- TBD
Packaging Box Gross Weight [kg]
500
Packaging Box Gross Weight [kg]
- 500
Packaging Box Gross Weight [lb]
TBD
Packaging Box Gross Weight [lb]
- TBD
