Description

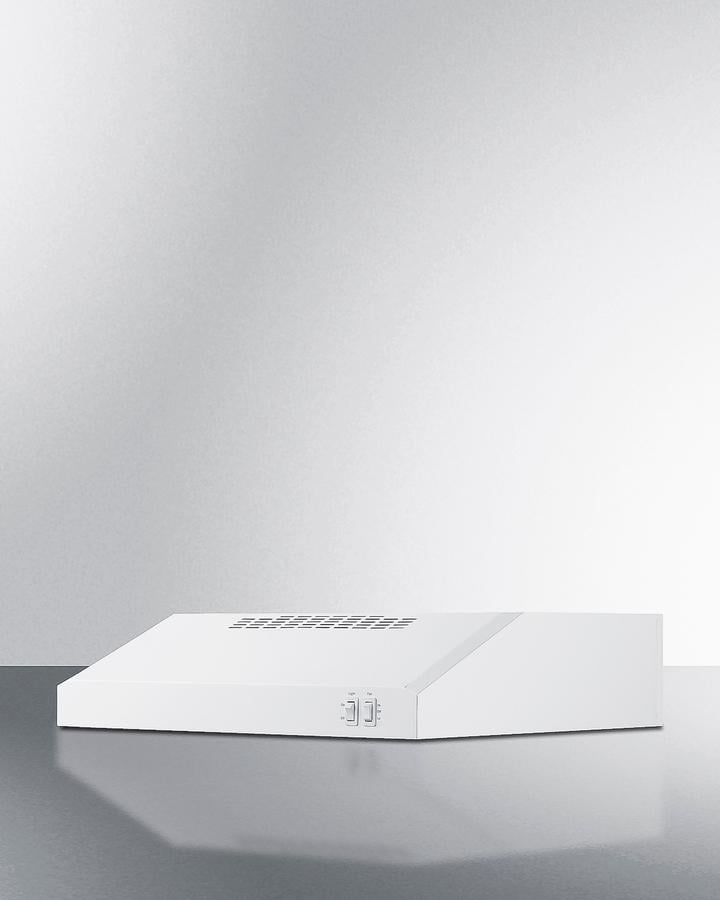

moreSummit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model HC20WWADA is a 20" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It comes in a classic white finish constructed from 21 gauge galvanized steel for a clean look and durable design. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The fan can be set at a high or low setting to best meet your ventilation needs. This unit can operate at 270 CFM for thorough ventilation. Airflow is directed upwards at a slight angle, ensuring smoke and odors won't blow towards the home chef. This hood ships for ductless/recirculating ventilation (where no exhaust connection to the outside is available) but is convertible for horizontal or vertical ducted ventilation (3 1/4" x 10" rectangular ducting or 7" round, transition required). We include a combination aluminum mesh/charcoal filter to absorb grease, smoke, and odors. This unit accepts a standard light bulb (not included). Both the filter and lens cover snap in place, with no tools required to change out as needed. Note: this hood does not include a power cord and is designed to be hard-wired by a licensed professional. In addition to this ADA compliant range hood, Summit manufactures this series in additional colors, as well as shell hoods and wall-mounted European hoods. Browse the full Summit product line to explore your options.
- Sized for use over 20 inch cooking surfaces (additional sizes available)
- Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
- Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user
- Low profile design offers classic style to finish your kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Matte finish in classic white suits any kitchen space
- Ships pre-set for recirculating mode but can be converted in a few simple steps
Specifications
Specifications
Product
Range Hood Type
Hood
Range Hood Type
- Hood
Range Hood Installation Type
Under-The-Cabinet
Range Hood Installation Type
- Under-The-Cabinet
Duct Type
Ducted
Duct Type
- Ducted
Energy Star Compliant
No
Energy Star Compliant
- No
Style Elements
Range Hood Style
Under Cabinet
Range Hood Style
- Under Cabinet
Features
Sized for use over 20 inch cooking surfaces (additional sizes available), Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both), Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included, Can operate at 270 CFM to ensure thorough ventilation of your cooking surface, Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user, Low profile design offers classic style to finish your kitchen, Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible, Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines, Matte finish in classic white suits any kitchen space, Ships pre-set for recirculating mode but can be converted in a few simple steps
- Sized for use over 20 inch cooking surfaces (additional sizes available)
- Can be connected to 3 1/4" x 10" vertical or horizontal exterior venting or 7" round vertical (transition required for both)
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- Can operate at 270 CFM to ensure thorough ventilation of your cooking surface
- Vents are set at a slight upwards angle, ensuring smoke and odors won't be directed towards the user
- Low profile design offers classic style to finish your kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Matte finish in classic white suits any kitchen space
- Ships pre-set for recirculating mode but can be converted in a few simple steps
Overview
Height of Cabinet
5.5" (14 cm)
Height of Cabinet
- 5.5" (14 cm)
Width
20.0" (51 cm)
Width
- 20.0" (51 cm)
Depth
20.0" (51 cm)
Depth
- 20.0" (51 cm)
Cabinet
White
Cabinet
- White
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
1.7
Amps
- 1.7
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
11.0 lbs. (5 kg)
Weight
- 11.0 lbs. (5 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101107189
UPC
- 761101107189
Range Hood
Installation
Under Cabinet
Installation
- Under Cabinet
Venting
Convertible
Venting
- Convertible
Controls
Dial
Controls
- Dial
Number of Fan Speeds
2
Number of Fan Speeds
- 2
Maximum Air Movement
270.0 CFM
Maximum Air Movement
- 270.0 CFM
Sone Rating
6
Sone Rating
- 6
Duct Shape
3"1/4" x 10" rectangular or 7" round with transition
Duct Shape
- 3"1/4" x 10" rectangular or 7" round with transition
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Hoods 20" Under Cabinet Convertible Range Hood, Ada Compliant, made by Summit,
