Description

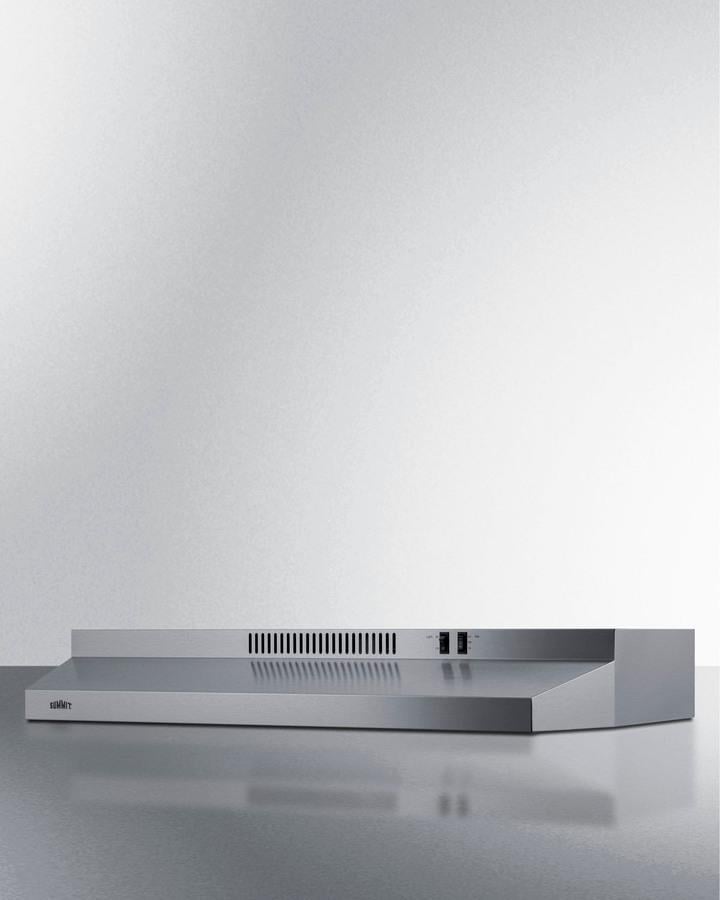

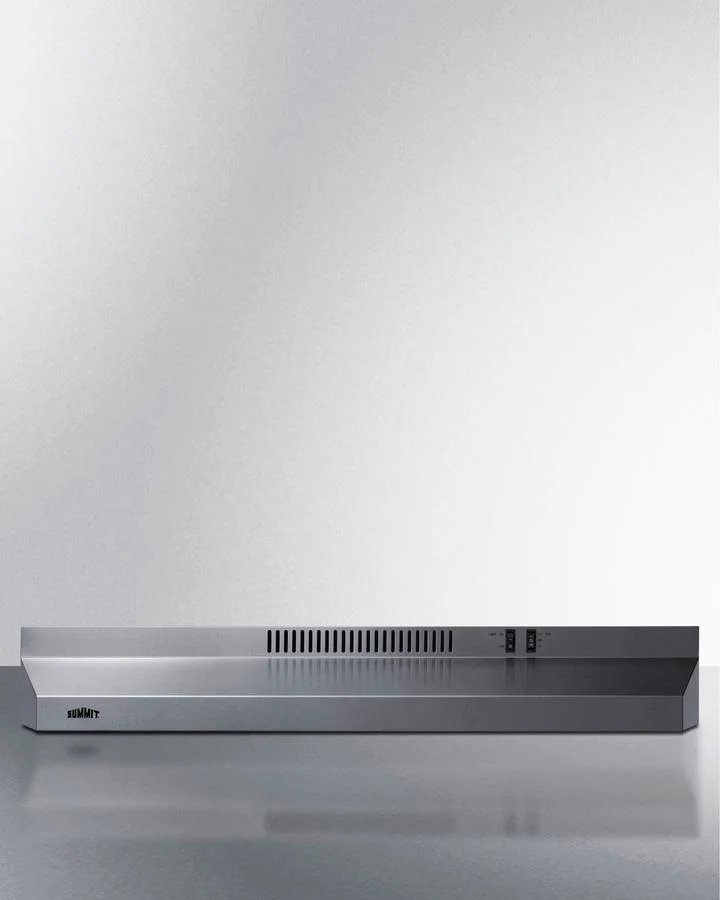

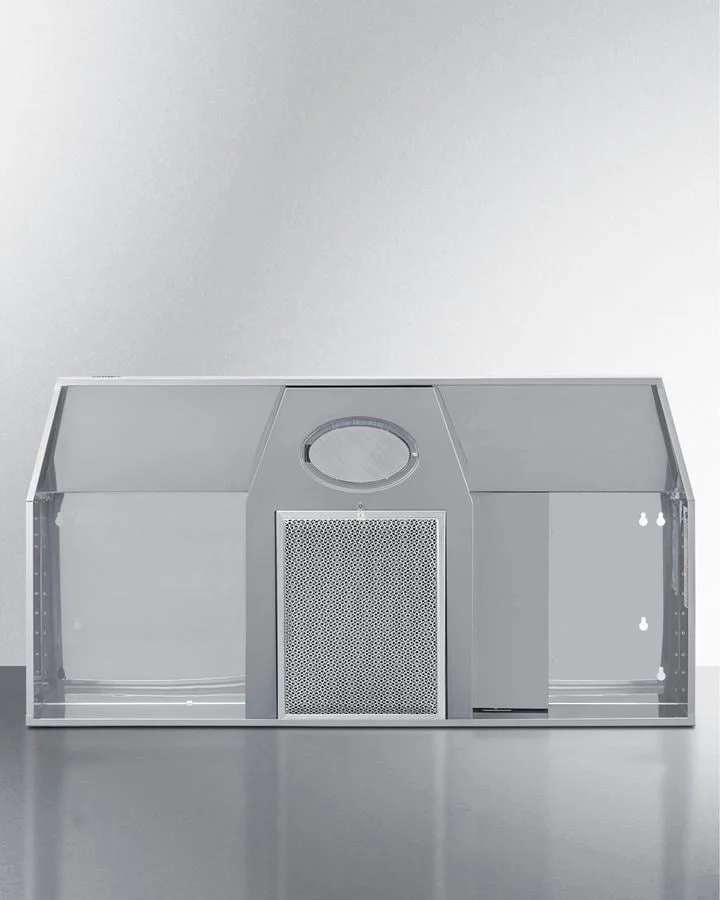

moreSummit's selection of specialty appliances includes accessible range hoods specially designed to be installed in compliance with Section 308 and 309 of the ADA Guidelines. Model H36RSSADA is a 36" wide range hood ideal for apartments, senior living kitchens, hotel suites, and other smaller spaces. It features an attractive stainless steel finish with a horizontal grain. We include a remote terminal block and wall switch cover to allow the controls to be installed separately from the hood and at a lower, accessible height in accordance with ADA guidelines. The 2-speed fan is easily managed by a rocker switch with a high and low ventilation setting. This hood is convertible for horizontal or vertical ducted ventilation or ductless/recirculating ventilation where no exhaust connection to the outside is available. It ships ready for standard 3 1/4" x 10" rectangular ducting, but it can be used with a round 6" or 7" duct with the addition of a transition (not included). We include a metal mesh filter to catch grease and a charcoal filter to absorb smoke and odors when using in recirculating applications. This unit does not include a power cord and is designed to be hard-wired by a licensed professional. Additional convertible range hoods are available in 18", 20", 24", and 30", with more styles and choices coming soon. Browse the full Summit product line to explore your options.
- Sized for use over 36 inch cooking surfaces (additional sizes available)
- Durable construction in an attractive style with a horizontal grain
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- High and low setting to allow proper ventilation of your kitchen as needed
- Includes an incandescent bulb to help illuminate your cooking surface
- Low profile design offers a classic way to finish your kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Rebates
view available rebates
Specifications
Specifications
Product
Range Hood Type
Hood
Range Hood Type
- Hood
Range Hood Installation Type
Under-The-Cabinet
Range Hood Installation Type
- Under-The-Cabinet
Duct Type
Ducted
Duct Type
- Ducted
Style Elements
Range Hood Style
Under Cabinet
Range Hood Style
- Under Cabinet
Features
Sized for use over 36 inch cooking surfaces (additional sizes available), Durable construction in an attractive style with a horizontal grain, Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included, High and low setting to allow proper ventilation of your kitchen as needed, Includes an incandescent bulb to help illuminate your cooking surface, Low profile design offers a classic way to finish your kitchen, Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible, Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines, Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute, Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
- Sized for use over 36 inch cooking surfaces (additional sizes available)
- Durable construction in an attractive style with a horizontal grain
- Hood is wired to run off a wall switch for improved accessibility, with a remote terminal block included
- High and low setting to allow proper ventilation of your kitchen as needed
- Includes an incandescent bulb to help illuminate your cooking surface
- Low profile design offers a classic way to finish your kitchen
- Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible
- Convertible hood designed for ducted or ductless installation in compliant with ADA guidelines
- Ships pre-set for recirculating mode but can be converted for ducted use in less than a minute
- Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)
Overview
Nominal Height
6.0" (15 cm)
Nominal Height
- 6.0" (15 cm)
Height of Cabinet
5.13" (13 cm)
Height of Cabinet
- 5.13" (13 cm)
Nominal Width
36.0" (91 cm)
Nominal Width
- 36.0" (91 cm)
Width
35.88" (91 cm)
Width
- 35.88" (91 cm)
Nominal Depth
19.0" (48 cm)
Nominal Depth
- 19.0" (48 cm)
Depth
18.63" (47 cm)
Depth
- 18.63" (47 cm)
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
13.0 lbs. (6 kg)
Weight
- 13.0 lbs. (6 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101087405
UPC
- 761101087405
Range Hood
Venting
Convertible
Venting
- Convertible
Controls
Dial
Controls
- Dial
Light
Yes
Light
- Yes
Number of Lights
1
Number of Lights
- 1
Light Type
Incandescent
Light Type
- Incandescent
Number of Fan Speeds
2
Number of Fan Speeds
- 2
Duct Shape
3"1/4" x 10" rectangular or 6/7" round with transition
Duct Shape
- 3"1/4" x 10" rectangular or 6/7" round with transition
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Hoods 36" Under Cabinet Convertible Range Hood, Ada Compliant, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Hoods collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: H36RSSADA
