Where Can I See This Product in Store?
This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Dimensions:
31.0" W
×
21.25" D
×
3.813" H
Description
Technical Overview Overall Appliance Dimensions (HxWxD) (in) 3 13/16'' x 31'' x 21 1/4'' Required Cutout Size (HxWxD) (in) 3 13/16'' x 28 15/16'' x 19 1/8''
- - Low-Profile Design for a More Integrated Appearance
- - High Quality Color Matched Knobs with a Stainless Bezel
- - Cooktop Design Coordinates with Bosch Wall Ovens
- PowerBoil - - Quick Heating with Powerful 16,000 BTU
- - Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
user-manuals
View PDF for more information
product-specification
View PDF for more information
installation-instruction
View PDF for more information
installation-instruction
View PDF for more information
installation-instruction
View PDF for more information
supplement
View PDF for more information
abz
View PDF for more information
abz
View PDF for more information
Rebates
view available rebates
Gas Cooktop 30" Stainless Steel
Gas Ranges Collection
Specifications
Specifications
Product
Appliance Fuel Type
Gas
Appliance Fuel Type
- Gas
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Cooktop Type
Gas
Cooktop Type
- Gas
Dimensions
Height (bottom to top)
3.813" H
Height (bottom to top)
- 3.813" H
Width (side to side)
31.0" W
Width (side to side)
- 31.0" W
Depth (front to back)
21.25" D
Depth (front to back)
- 21.25" D
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
Features
- Low-Profile Design for a More Integrated Appearance, - High Quality Color Matched Knobs with a Stainless Bezel, - Cooktop Design Coordinates with Bosch Wall Ovens, PowerBoil - - Quick Heating with Powerful 16,000 BTU, - Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
- - Low-Profile Design for a More Integrated Appearance
- - High Quality Color Matched Knobs with a Stainless Bezel
- - Cooktop Design Coordinates with Bosch Wall Ovens
- PowerBoil - - Quick Heating with Powerful 16,000 BTU
- - Centralized Controls for Easy Use and More Intuitive Operation of Cooktop.
General
Total NG BTUs
39500
Total NG BTUs
- 39500
Total LP BTUs
38700
Total LP BTUs
- 38700
ExtraLow® Burners
No
ExtraLow® Burners
- No
Installation

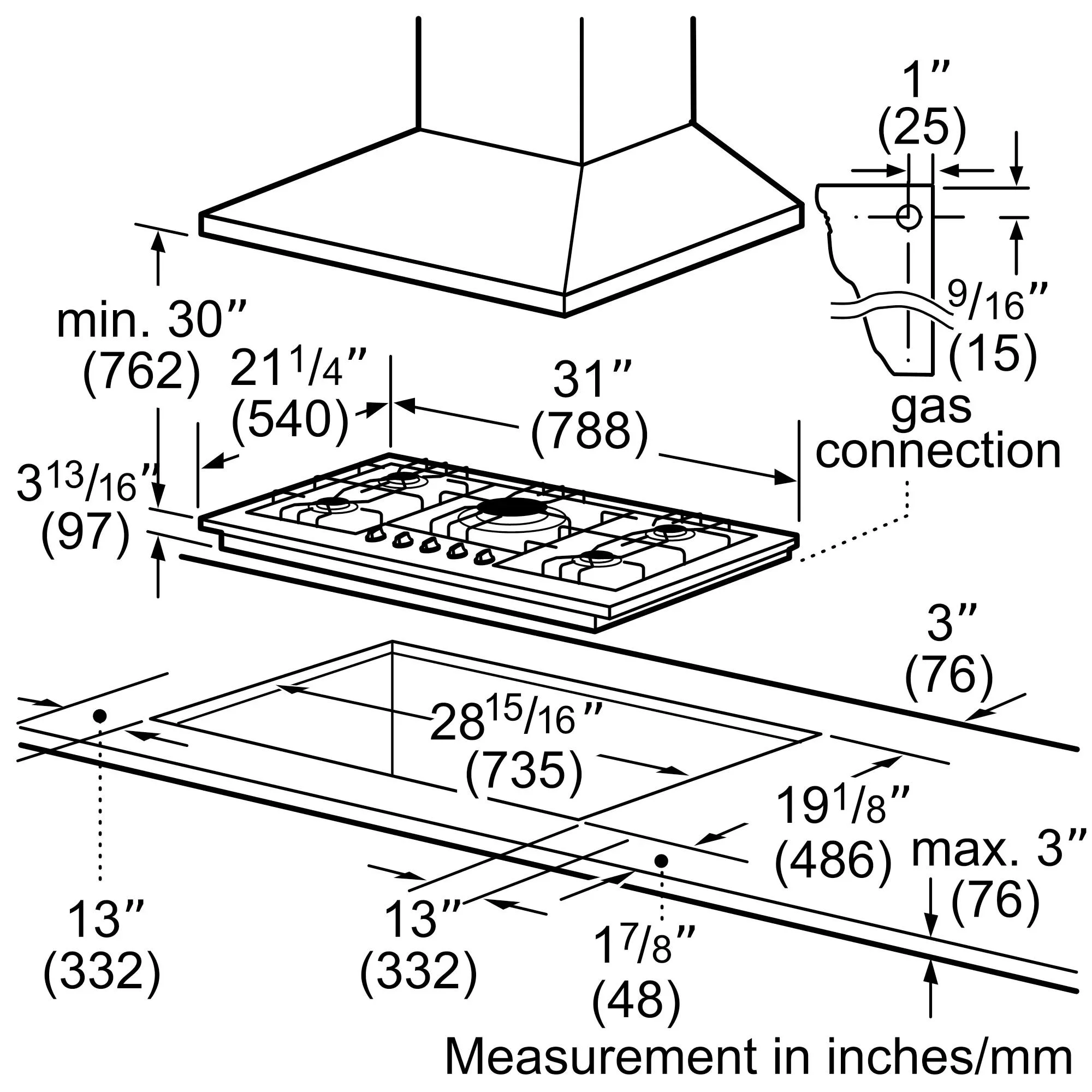

Overall Appliance Dimensions (HxWxD) (in)
3 13/16'' x 31'' x 21 1/4''
Overall Appliance Dimensions (HxWxD) (in)
- 3 13/16'' x 31'' x 21 1/4''
Required Cutout Size (HxWxD) (in)
3 13/16'' x 28 15/16'' x 19 1/8''
Required Cutout Size (HxWxD) (in)
- 3 13/16'' x 28 15/16'' x 19 1/8''
Gas type
Natural gas 15 mbar (USA)
Gas type
- Natural gas 15 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
Liquid gas 27,5 mbar (USA)
Alternative Gas Type (Nozzle Set Included)
- Liquid gas 27,5 mbar (USA)
Plug Type
120V-3 prong
Plug Type
- 120V-3 prong
Power Cord Length
60''
Power Cord Length
- 60''
Fuse protection
15
Fuse protection
- 15
Volts
120
Volts
- 120
Product Packaging Dimensions (HxWxD)
8 3/8'' x 37 1/8'' x 24 3/4''
Product Packaging Dimensions (HxWxD)
- 8 3/8'' x 37 1/8'' x 24 3/4''
Design
Surface Materials
Stainless Steel
Surface Materials
- Stainless Steel
Grate Materials
Cast Iron with Rubber Feet
Grate Materials
- Cast Iron with Rubber Feet
Location of Control Panel
Front
Location of Control Panel
- Front
Comfort and Convenience
Number of Gas Burners
4
Number of Gas Burners
- 4
Pedestal Star® Burners
No
Pedestal Star® Burners
- No
Sealed Burners
Yes
Sealed Burners
- Yes
ExtraLow® Burners
No
ExtraLow® Burners
- No
Special Features
Reignition
Special Features
- Reignition
Griddle
No
Griddle
- No
ADA Compliant (When Installed to ADA requirements)
No
ADA Compliant (When Installed to ADA requirements)
- No
Connectivity
Home Connect™
No
Home Connect™
- No
Safety
Safety
Without Safety
Safety
- Without Safety
Accessories
Included Accessories
3 x cast iron pan support
Included Accessories
- 3 x cast iron pan support
Item & Dimensions
Manufacturer
Bosch
Manufacturer
- Bosch
The Gas Ranges Gas Cooktop 30" Stainless Steel, made by Bosch,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Gas Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Cooktops, Electric Cooktop, Gas Cooktop, Down Draft Cooktop, Cook Top, Cooktop Range, Ranges, Cooktop with Downdraft, Kitchen Cooktop, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Stove Top, Rangetops, Range Top
Reference #: NGM3054UC
