24" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included)
SKU: ALFZ53IF
Call for availability
Simon's Price:
$1,992
12 Interest Free Monthly Payments Of
$168
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
23.63" W
×
24.63" D
×
32.0" H
| Width (side to side) | 23.63 |
| Depth (front to back) | 24.63 |
| Height (bottom to top) | 32.0 |
| Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description

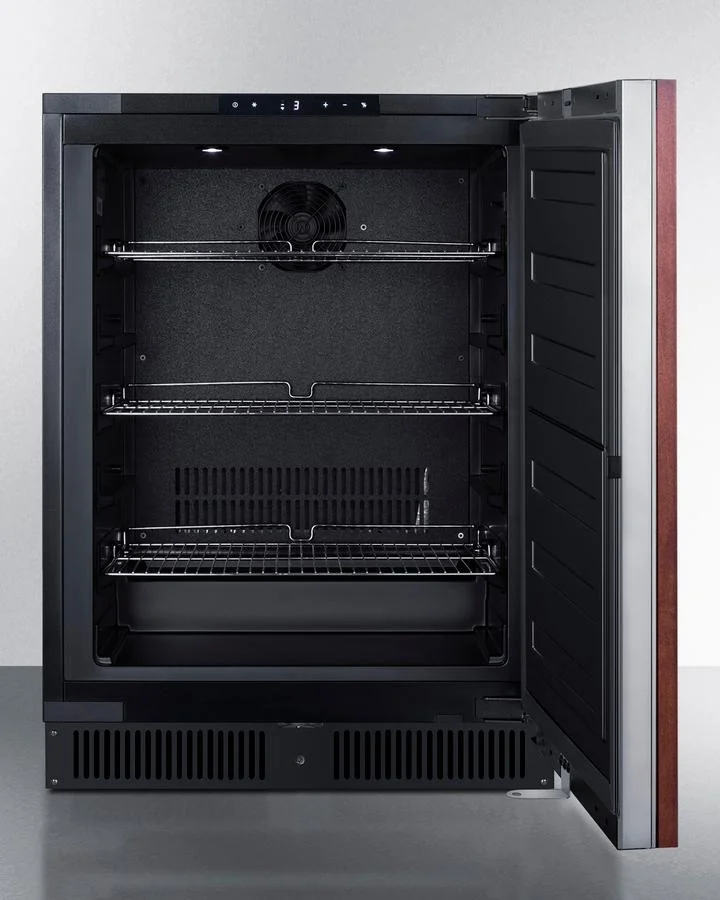

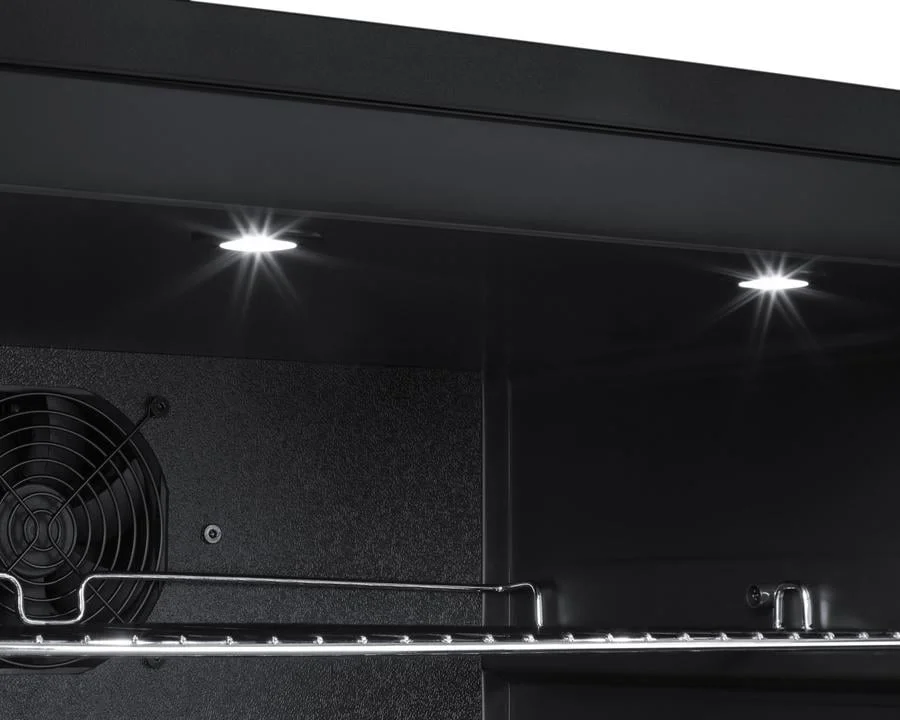

moreSummit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators. Model ALFZ53IF is a 24" wide all-freezer that can be paired with our AL54 all-refrigerator. Sized at just 32" high, it can easily be installed under an ADA compliant counter. The reversible door features a European-style fully articulating hinge for smooth opening. This also allows the door to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 28.38" H x 23.4" W; maximum weight: 10 lbs.). This unit has a flush back for easy cleaning and a right angle plug for a better fit. Inside, the ALFZ53IF utilizes frost-free operation with fan-forced cooling to ensure low maintenance and even temperature distribution. Recessed LED lighting offers an attractive yet efficient look inside the black interior. Three adjustable chrome shelves can be set at five different positions to best accommodate your storage needs. Additional user-friendly features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance. This unit features intuitive digital controls located in the external kickplate. The ALFZ53IF freezer is approved for residential use and also ETL-S listed to NSF-7 standards for commercial applications. With its deluxe style and user-friendly features, this unit is the perfect choice for home or commercial kitchens. It's a perfect match for our AL54IF all-refrigerator, both panel-ready to create a truly custom refrigerator/freezer set under ADA compliant counters. Additional door finishes are available, including stainless and black stainless steel, and our new vibrant colors. Browse the full selection to explore your options. NOTE: Actual product details may vary slightly from pictured product
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Elegant lighting with an on/off switch located on the control panel
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- 32" height allows easy installation under lower ADA compliant counters

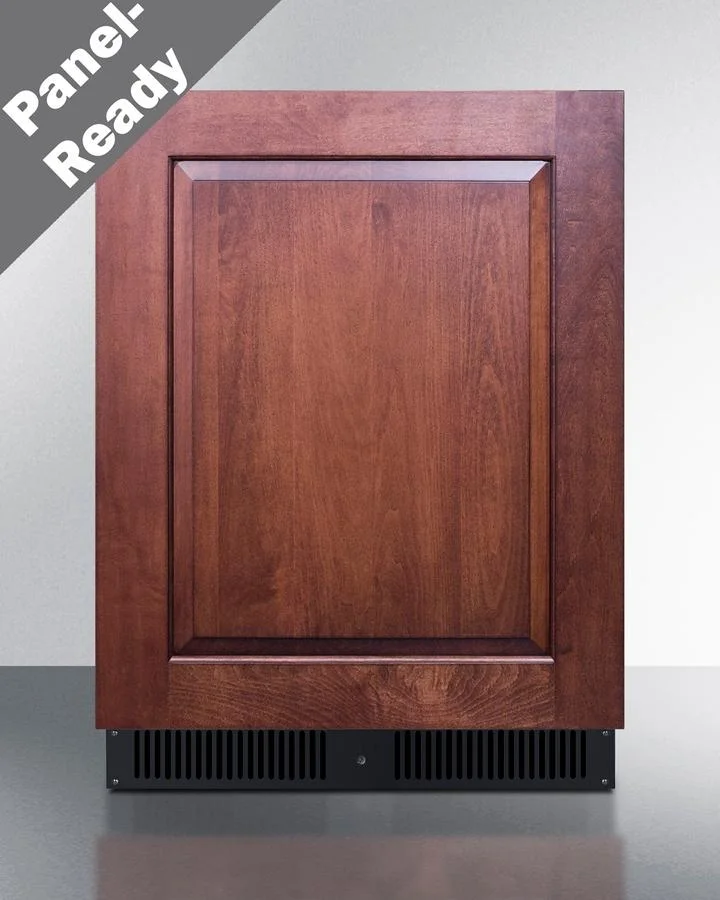

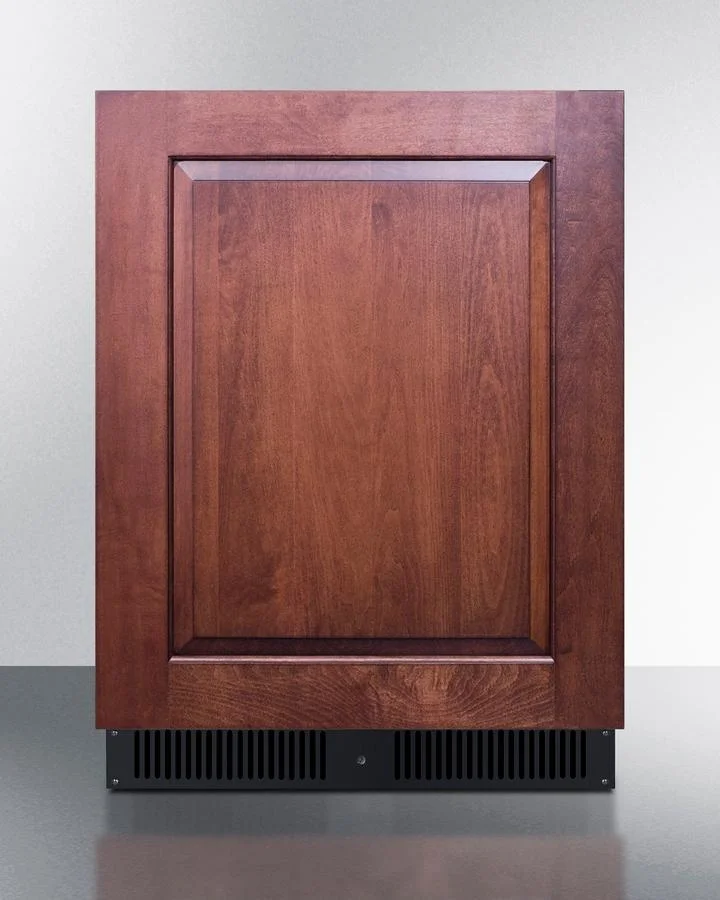

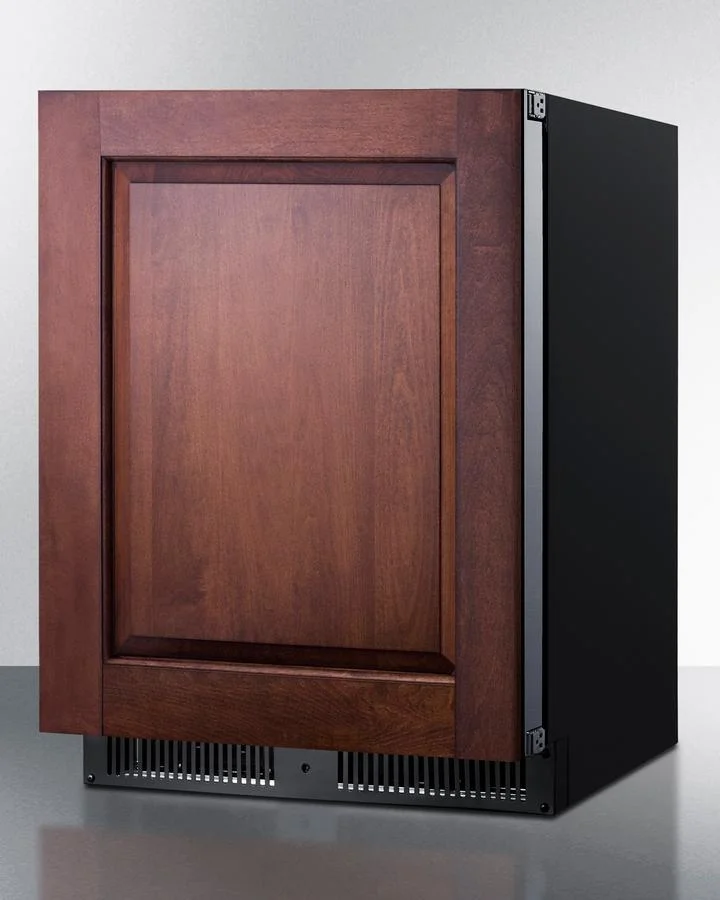

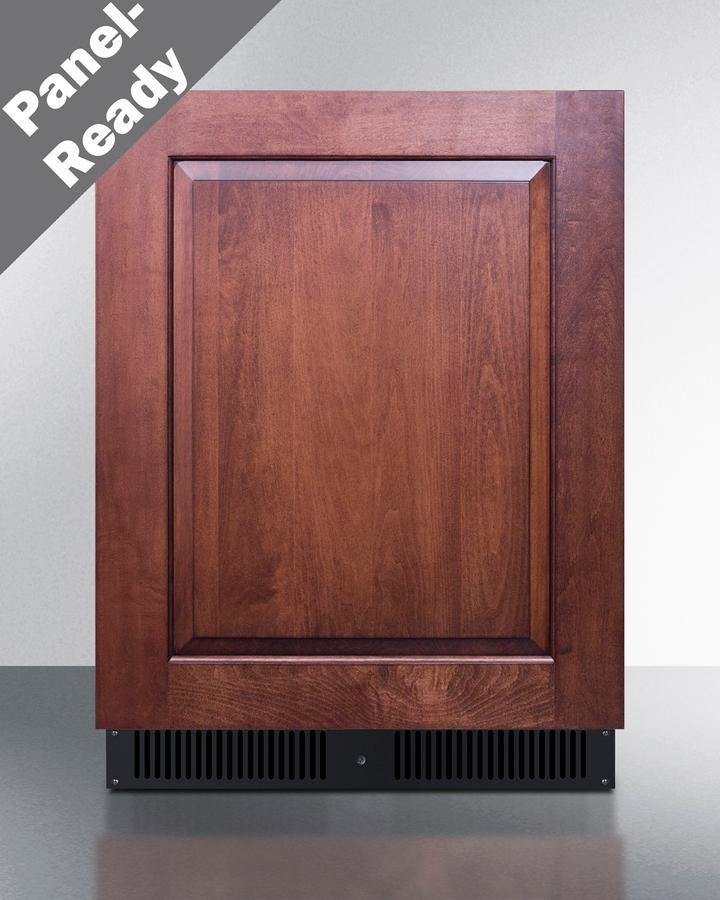

- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)

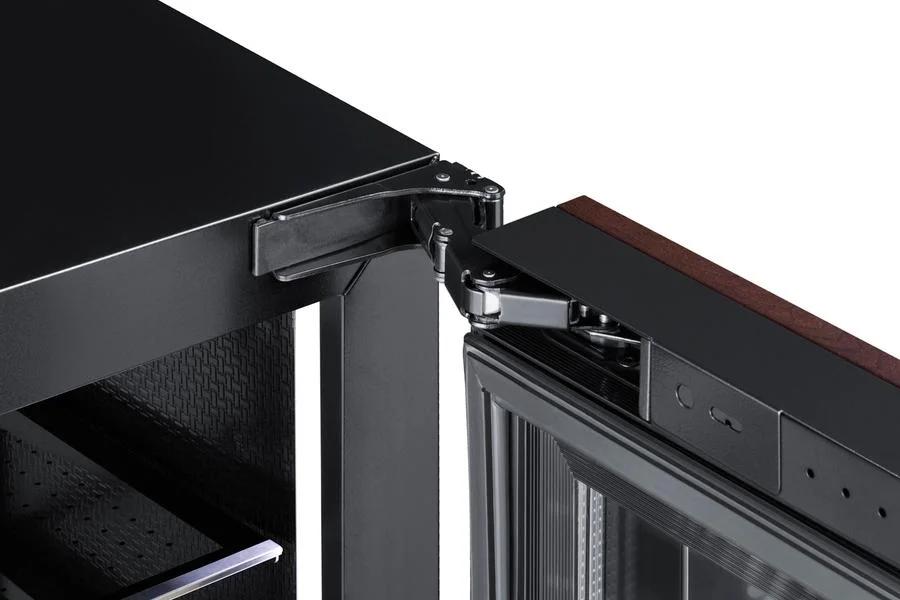

- This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
- No-frost convenience eliminates the need to manually defrost the unit
- Electronic controls offer easy and intuitive temperature management
Rebates
view available rebates
24" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included)
Freezers Collection
Simon's Price:
$1,992
12 Interest Free Monthly Payments Of
$168
Specifications
Specifications
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
23.63" W
Width (side to side)
- 23.63" W
Depth (front to back)
24.63" D
Depth (front to back)
- 24.63" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
3.7
Refrigerator Total Capacity
- 3.7
Freezer Type
Upright
Freezer Type
- Upright
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
3.7
Freezer Cubic Feet Capacity
- 3.7
Overview
Height of Cabinet
32.0" (81 cm)
Height of Cabinet
- 32.0" (81 cm)
Width
23.63" (60 cm)
Width
- 23.63" (60 cm)
Depth
22.63" (57 cm)
Depth
- 22.63" (57 cm)
Depth with Handle
24.63" (63 cm)
Depth with Handle
- 24.63" (63 cm)
Depth with door at 90(degree)
45.0" (114 cm)
Depth with door at 90(degree)
- 45.0" (114 cm)
Capacity
3.7 cu.ft. (105 L)
Capacity
- 3.7 cu.ft. (105 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
345.0kWh/year
Energy Usage/Year
- 345.0kWh/year
Amps
1.5
Amps
- 1.5
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
90.0 lbs. (41 kg)
Weight
- 90.0 lbs. (41 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101088037
UPC
- 761101088037
Freezer
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Interior Height
23.5" (60 cm)
Interior Height
- 23.5" (60 cm)
Interior Width
18.75" (48 cm)
Interior Width
- 18.75" (48 cm)
Interior Depth
15.5" (39 cm)
Interior Depth
- 15.5" (39 cm)
Shelf Type
Chrome
Shelf Type
- Chrome
Shelf Qty
3
Shelf Qty
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Interior Light
Yes
Interior Light
- Yes
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.31 oz.
Refrigerant Amount
- 1.31 oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs
4
Level Legs
- 4
Compressor Step Height
3.75" (10 cm)
Compressor Step Height
- 3.75" (10 cm)
Compressor Step Width
18.75" (48 cm)
Compressor Step Width
- 18.75" (48 cm)
Compressor Step Depth
4.5" (11 cm)
Compressor Step Depth
- 4.5" (11 cm)
Temperature Range
-11°F to 11°F
Temperature Range
- -11°F to 11°F
Sabbath Mode
Yes
Sabbath Mode
- Yes
Sound Level
33.7 dB
Sound Level
- 33.7 dB
Features
Make the best use of space by installing your freezer under the counter and flush with other cabinets, Elegant lighting with an on/off switch located on the control panel, 24" wide frost-free freezer sized to fit under lower ADA compliant counters, Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order, Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up, 32" height allows easy installation under lower ADA compliant counters, European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum), This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details, No-frost convenience eliminates the need to manually defrost the unit, Electronic controls offer easy and intuitive temperature management
- Make the best use of space by installing your freezer under the counter and flush with other cabinets
- Elegant lighting with an on/off switch located on the control panel
- 24" wide frost-free freezer sized to fit under lower ADA compliant counters
- Right hand door swing by default; if you require the door to open from the other direction, add upgrade "LHD" upon order
- Rearrange your freezer space to accommodate all shapes and sizes or remove shelves for a simple clean-up
- 32" height allows easy installation under lower ADA compliant counters
- European style articulating door hinge allows the installation of overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; (panel size: 23.4" W x 28.38" H at 3/4" thick and 10 lbs. maximum)
- This item has recently been upgraded with a fully articulating hinge. The lock has been moved from the door front to kickplate. Images shown on website may not reflect product details
- No-frost convenience eliminates the need to manually defrost the unit
- Electronic controls offer easy and intuitive temperature management
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 24" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included), made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Freezers, Upright Freezer, Chest Freezer, Refrigerator Freezer, Refridgerator and Freezer, Side by Side Refrigerator Freezer, Side x Side Refrigerator Freezer, Bottom Refrigerator Freezer, Compact Freezer, Upright Freezer, Frozen Food Storage, Food Storage, Appliances, Kitchen Appliances, Fridge Freezer, Deep Freezers, Ice Box, Icebox, Freezer Unit, Chest Freezers, Cold Storage
Reference #: ALFZ53IF
