lessDimensions:
20.88" W
×
24.0" D
×
32.0" H
Width (side to side) | 20.88 |
Depth (front to back) | 24.0 |
Height (bottom to top) | 32.0 |
Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description
moreSummit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ36CSSHV is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a sleek vertical handle with a thin 14mm diameter, a popular style that matches many common cabinet handles. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ36CSSHV features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALFZ36CSSHV is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR46WCSSHV all-refrigerator. Additional choices are available in stainless steel and panel-ready exterior finishes.
- Three removable door racks for additional storage of larger items
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm will sound if the door is left ajar for over a minute
- Space-saving design that offers easier cleanability
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius

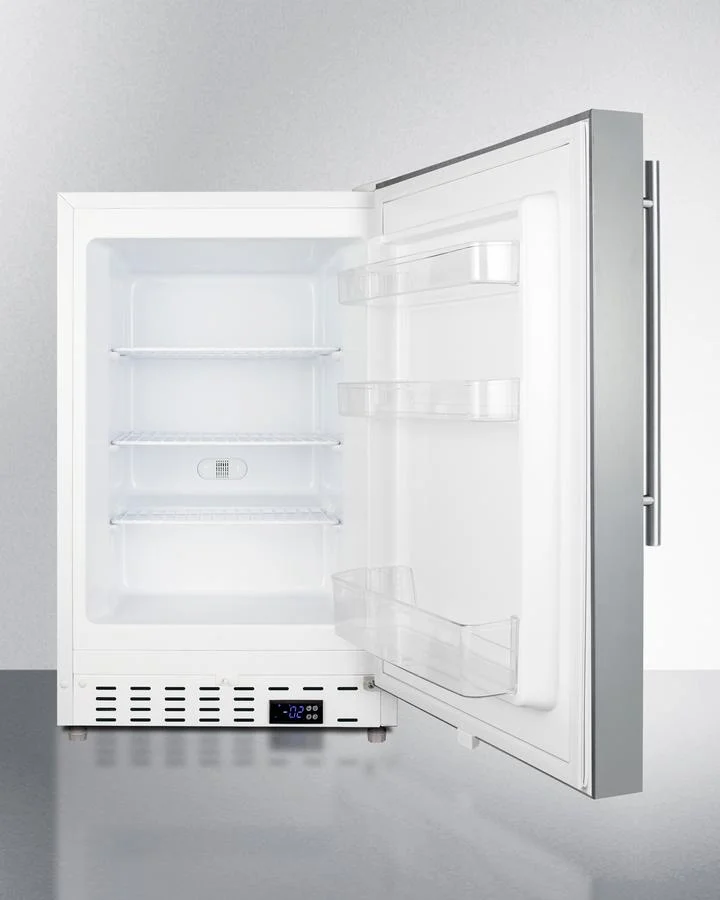

- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- 32" height allows easy installation under lower ADA compliant counters
- Stainless steel, user-reversible door for added flexibility to best accommodate your setting
- Improved insulation for an efficient performance
Specifications
Specifications
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
20.88" W
Width (side to side)
- 20.88" W
Depth (front to back)
24.0" D
Depth (front to back)
- 24.0" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
2.68
Refrigerator Total Capacity
- 2.68
Freezer Type
Upright
Freezer Type
- Upright
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
2.68
Freezer Cubic Feet Capacity
- 2.68
Overview
Height of Cabinet
31.75" (81 cm)
Height of Cabinet
- 31.75" (81 cm)
Height to Hinge Cap
32.0" (81 cm)
Height to Hinge Cap
- 32.0" (81 cm)
Width
20.88" (53 cm)
Width
- 20.88" (53 cm)
Depth
22.5" (57 cm)
Depth
- 22.5" (57 cm)
Depth with Handle
24.0" (61 cm)
Depth with Handle
- 24.0" (61 cm)
Depth with door at 90(degree)
40.25" (102 cm)
Depth with door at 90(degree)
- 40.25" (102 cm)
Capacity
2.68 cu.ft. (76 L)
Capacity
- 2.68 cu.ft. (76 L)
Defrost Type
Manual
Defrost Type
- Manual
Door
Stainless Steel
Door
- Stainless Steel
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Energy Usage/Year
266.0kWh/year
Energy Usage/Year
- 266.0kWh/year
Amps
0.6
Amps
- 0.6
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
105.0 lbs. (48 kg)
Weight
- 105.0 lbs. (48 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101076867
UPC
- 761101076867
Freezer
Door Swing
RHD
Door Swing
- RHD
Reversible
Yes
Reversible
- Yes
Interior Height
23.75" (60 cm)
Interior Height
- 23.75" (60 cm)
Interior Width
14.5" (37 cm)
Interior Width
- 14.5" (37 cm)
Interior Depth
17.0" (43 cm)
Interior Depth
- 17.0" (43 cm)
Shelf Type
Wire
Shelf Type
- Wire
Shelf Qty
3
Shelf Qty
- 3
Full Door Shelves
3
Full Door Shelves
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Exterior
Fan Type
- Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.83 oz.
Refrigerant Amount
- 1.83 oz.
High Side PSI
180.0
High Side PSI
- 180.0
Low Side PSI
80.0
Low Side PSI
- 80.0
Level Legs
2
Level Legs
- 2
Wheels
2
Wheels
- 2
Compressor Step Height
5.75" (15 cm)
Compressor Step Height
- 5.75" (15 cm)
Compressor Step Width
14.5" (37 cm)
Compressor Step Width
- 14.5" (37 cm)
Compressor Step Depth
6.0" (15 cm)
Compressor Step Depth
- 6.0" (15 cm)
Temperature Range
-13 to 5 F
Temperature Range
- -13 to 5 F
Sound Level
33.1 dBa
Sound Level
- 33.1 dBa
Features
Three removable door racks for additional storage of larger items, User-set high/low temperature alarms provide added security if temperature goes beyond setpoint, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Audible alarm will sound if the door is left ajar for over a minute, Space-saving design that offers easier cleanability, Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius, Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior, 32" height allows easy installation under lower ADA compliant counters, Stainless steel, user-reversible door for added flexibility to best accommodate your setting, Improved insulation for an efficient performance
- Three removable door racks for additional storage of larger items
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm will sound if the door is left ajar for over a minute
- Space-saving design that offers easier cleanability
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- 32" height allows easy installation under lower ADA compliant counters
- Stainless steel, user-reversible door for added flexibility to best accommodate your setting
- Improved insulation for an efficient performance
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 21" Wide Built-In All-Freezer, Ada Compliant, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Freezers, Upright Freezer, Chest Freezer, Refrigerator Freezer, Refridgerator and Freezer, Side by Side Refrigerator Freezer, Side x Side Refrigerator Freezer, Bottom Refrigerator Freezer, Compact Freezer, Upright Freezer, Frozen Food Storage, Food Storage, Appliances, Kitchen Appliances, Fridge Freezer, Deep Freezers, Ice Box, Icebox, Freezer Unit, Chest Freezers, Cold Storage
Reference #: ALFZ36CSSHV
