lessDimensions:
23.38" W
×
23.88" D
×
31.88" H
| Width (side to side) | 23.38 |
| Depth (front to back) | 23.88 |
| Height (bottom to top) | 31.88 |
| Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description
moreSummit manufactures an extensive selection of drawer refrigeration designed to bring elegant style and modern convenience to any undercounter space, with ADA compliant choices designed for indoor and outdoor installation. Sized at just under 24" wide and 32" high, model ADFD243CSS is a 2-drawer freezer perfectly designed for built-in or freestanding installation in ADA compliant settings with lower counter height. The cabinet and drawers are constructed from weatherproof stainless steel for safe use in outdoor kitchens, with a sealed back to protect all components from the elements. A stainless steel kickplate and sleek horizontally mounted handles complete the stylish look. The drawer fronts can also accept user-provided overlay panels to create a custom look that blends into existing cabinetry designs (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Inside, the ADFD243CSS has a generous 3.7 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two adjustable, removable dividers allow you to separate the drawer compartments into two or four zones to easily accommodate a variety of sizes. A full-width sliding removable chrome basket offers added storage convenience, while white LED lighting makes it easy to view stored contents. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance. The ADFD243CSS is ETL-S listed to NSF-7 commercial settings and also meets all residential standards for home use. We also offer a matching refrigerator drawer (model ADRD241CSS) and this same unit as a 2-zone refrigerator-freezer drawer (model ADRF244CSS). Browse the full Summit line to explore our extensive series of 15", 18", and 24" wide refrigerator drawers.
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- No-frost operation for minimum user maintenance
- Sized just under 32" high to allow installation under lower ADA compliant counters

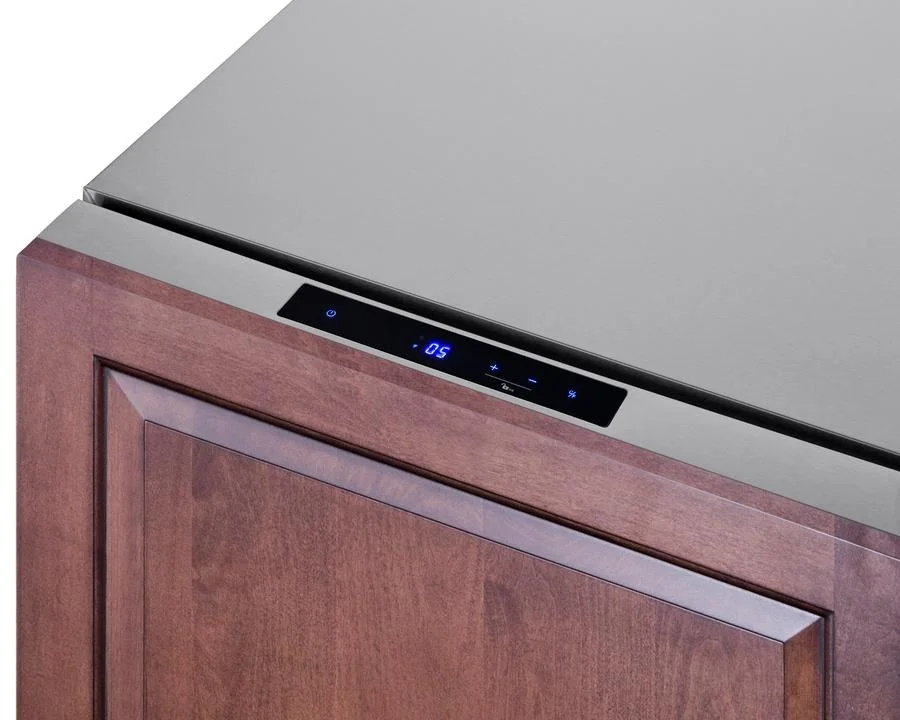

- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button

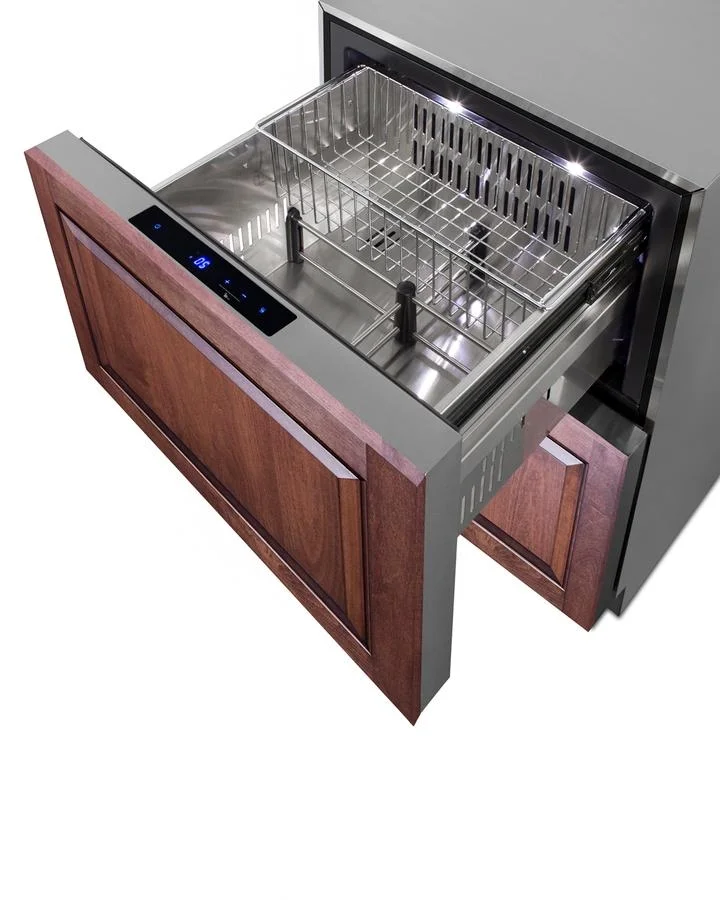

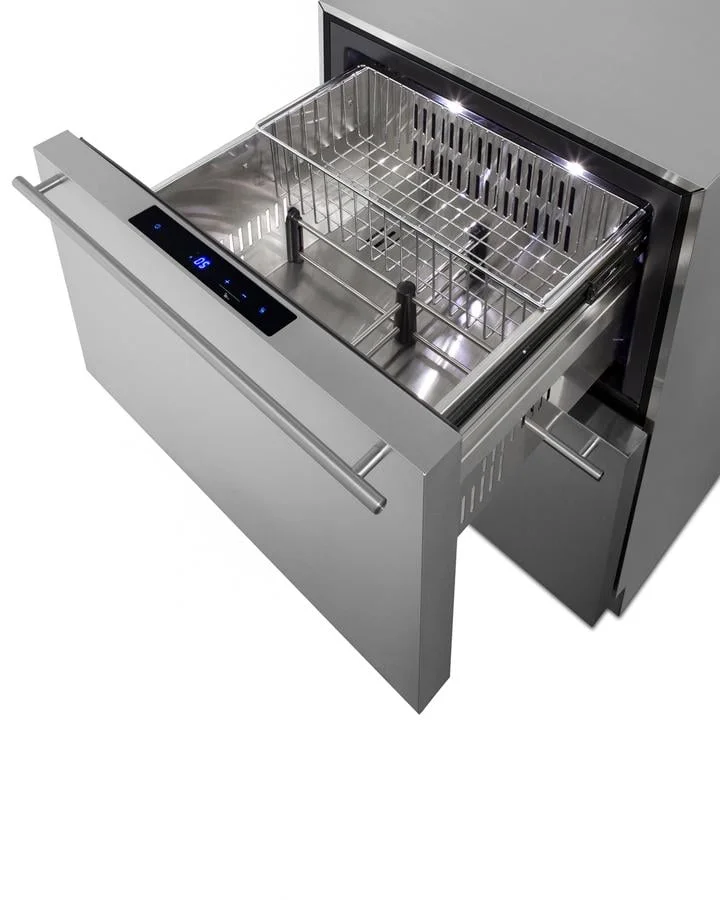

- Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style

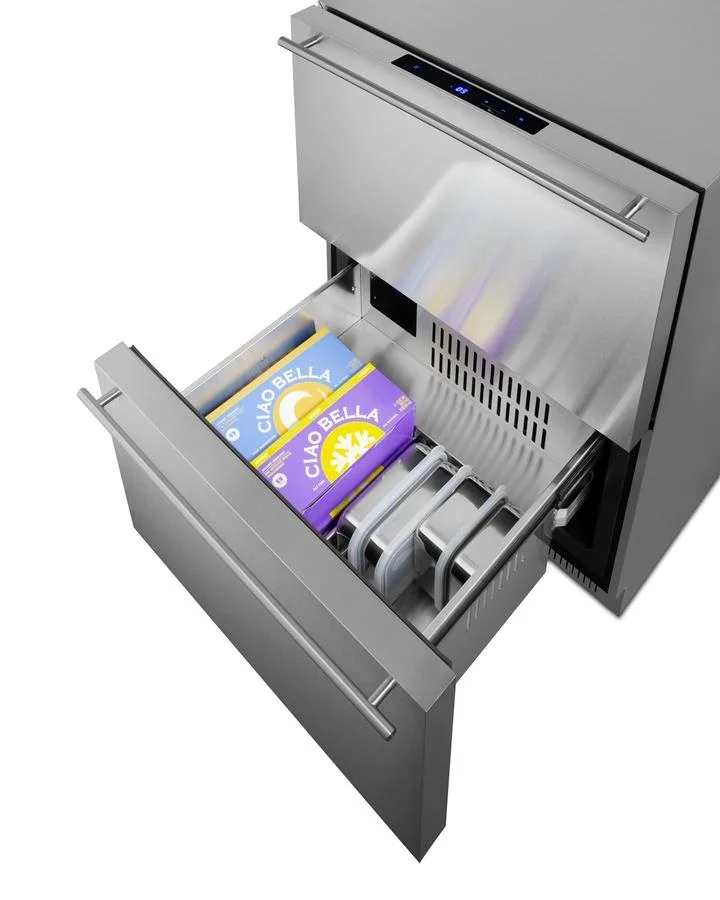

- 24" wide 3.7 cu.ft. freezer with two gliding drawers

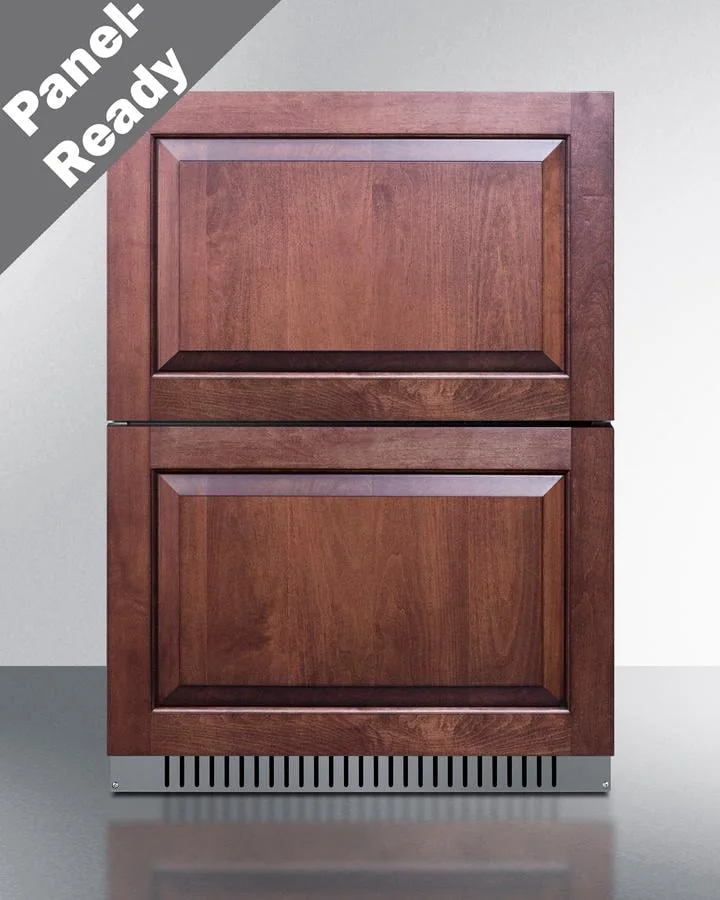

- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design

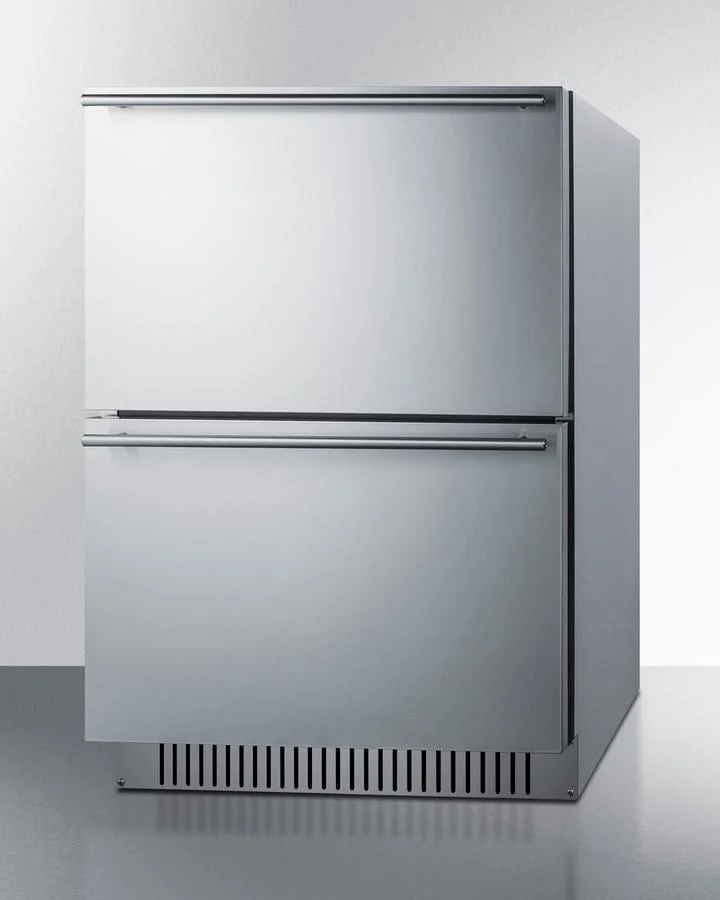

- Sleek stainless steel handles add an elegant touch to any setting
24" Wide 2-Drawer All-Freezer, Ada Compliant
Freezers Collection
Simon's Price:
$3,760
12 Interest Free Monthly Payments Of
$316
Specifications
Specifications
Dimensions
Height (bottom to top)
31.88" H
Height (bottom to top)
- 31.88" H
Width (side to side)
23.38" W
Width (side to side)
- 23.38" W
Depth (front to back)
23.88" D
Depth (front to back)
- 23.88" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
3.7
Refrigerator Total Capacity
- 3.7
Freezer Type
Upright
Freezer Type
- Upright
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
3.7
Freezer Cubic Feet Capacity
- 3.7
Overview
Height of Cabinet
31.88" (81 cm)
Height of Cabinet
- 31.88" (81 cm)
Width
23.38" (59 cm)
Width
- 23.38" (59 cm)
Depth
22.5" (57 cm)
Depth
- 22.5" (57 cm)
Depth with Handle
23.88" (61 cm)
Depth with Handle
- 23.88" (61 cm)
Depth with door at 90(degree)
34.25" (87 cm)
Depth with door at 90(degree)
- 34.25" (87 cm)
Capacity
3.7 cu.ft. (105 L)
Capacity
- 3.7 cu.ft. (105 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Stainless Steel/Panel-Ready
Door
- Stainless Steel/Panel-Ready
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Sanitation
ETL-S
Sanitation
- ETL-S
Energy Usage/Year
395.0kWh/year
Energy Usage/Year
- 395.0kWh/year
Amps
1.5
Amps
- 1.5
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
136.0 lbs. (62 kg)
Weight
- 136.0 lbs. (62 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101088235
UPC
- 761101088235
Freezer
Door Swing
Drawer
Door Swing
- Drawer
Thermostat Type
Digital
Thermostat Type
- Digital
Interior Light
Yes
Interior Light
- Yes
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.31 oz.
Refrigerant Amount
- 1.31 oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
105.0
Low Side PSI
- 105.0
Level Legs
4
Level Legs
- 4
Interior Drawers
Yes
Interior Drawers
- Yes
Drawers Qty
2
Drawers Qty
- 2
Interior Height - Drawer 1
8.0" (20 cm)
Interior Height - Drawer 1
- 8.0" (20 cm)
Interior Width - Drawer 1
17.0" (43 cm)
Interior Width - Drawer 1
- 17.0" (43 cm)
Interior Depth - Drawer 1
14.5" (37 cm)
Interior Depth - Drawer 1
- 14.5" (37 cm)
Interior Height - Drawer 2
8.0" (20 cm)
Interior Height - Drawer 2
- 8.0" (20 cm)
Interior Width - Drawer 2
17.0" (43 cm)
Interior Width - Drawer 2
- 17.0" (43 cm)
Interior Depth - Drawer 2
14.5" (37 cm)
Interior Depth - Drawer 2
- 14.5" (37 cm)
Compressor Step Height
4.0" (10 cm)
Compressor Step Height
- 4.0" (10 cm)
Compressor Step Width
17.0" (43 cm)
Compressor Step Width
- 17.0" (43 cm)
Compressor Step Depth
3.5" (9 cm)
Compressor Step Depth
- 3.5" (9 cm)
Temperature Range
-11°F to 11°F
Temperature Range
- -11°F to 11°F
Sabbath Mode
Yes
Sabbath Mode
- Yes
Sound Level
33.8 dB
Sound Level
- 33.8 dB
Features
Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior, No-frost operation for minimum user maintenance, Sized just under 32" high to allow installation under lower ADA compliant counters, Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button, Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior, Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings, Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style, 24" wide 3.7 cu.ft. freezer with two gliding drawers, Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design, Sleek stainless steel handles add an elegant touch to any setting
- Constructed and approved for outdoor installation (as well as use indoors) with a fully sealed cooling system and weatherproof exterior
- No-frost operation for minimum user maintenance
- Sized just under 32" high to allow installation under lower ADA compliant counters
- Electronic controls located on the top drawer ensure intuitive temperature management, with an external readout that can switch from Celsius to Fahrenheit at the touch of a button
- Elegant LED lighting in a gentle white hue illuminates the top drawer for an easy view of the interior
- Front-breathing design allows you to make the best use of space by installing your appliance under the counter and flush with other cabinets in 24" wide openings
- Drawer interiors and exteriors are fully constructed from 304 grade stainless steel for weatherproof durability and elegant style
- 24" wide 3.7 cu.ft. freezer with two gliding drawers
- Drawers accept overlay panels (size: 23.43" x 14.1" at 3/4" thick) to let you seamlessly blend the refrigerator into cabinetry design
- Sleek stainless steel handles add an elegant touch to any setting
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 24" Wide 2-Drawer All-Freezer, Ada Compliant, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Freezers, Upright Freezer, Chest Freezer, Refrigerator Freezer, Refridgerator and Freezer, Side by Side Refrigerator Freezer, Side x Side Refrigerator Freezer, Bottom Refrigerator Freezer, Compact Freezer, Upright Freezer, Frozen Food Storage, Food Storage, Appliances, Kitchen Appliances, Fridge Freezer, Deep Freezers, Ice Box, Icebox, Freezer Unit, Chest Freezers, Cold Storage
Reference #: ADFD243CSS
