21" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included)
SKU: ALFZ37BIF
Simon's Price:
$1,378
12 Interest Free Monthly Payments Of
$116
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
20.25" W
×
24.38" D
×
32.0" H
Width (side to side) | 20.25 |
Depth (front to back) | 24.38 |
Height (bottom to top) | 32.0 |
Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description
moreSummit Appliance offers a quality selection of 21" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience. The ALFZ37BIF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured black cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. Inside, the ALFZ37BIF features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior. Three adjustable wire shelves offer optimal storage options for large and small items, while three removable door racks accommodate additional storage as needed. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs. Sized at just 21" wide, the ALFZ37BIF is the perfect addition for space-challenged spaces seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALR47BIF all-refrigerator. Additional choices are available in complete stainless steel and black cabinet finishes.
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm will sound if the door is left ajar for over a minute
- Space-saving design that offers easier cleanability

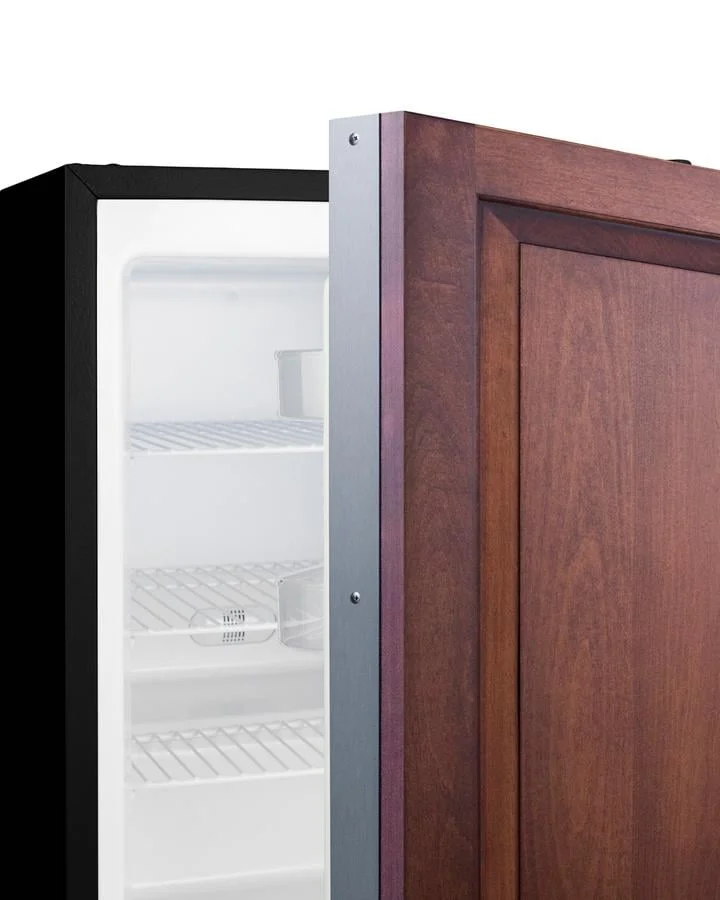

- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles

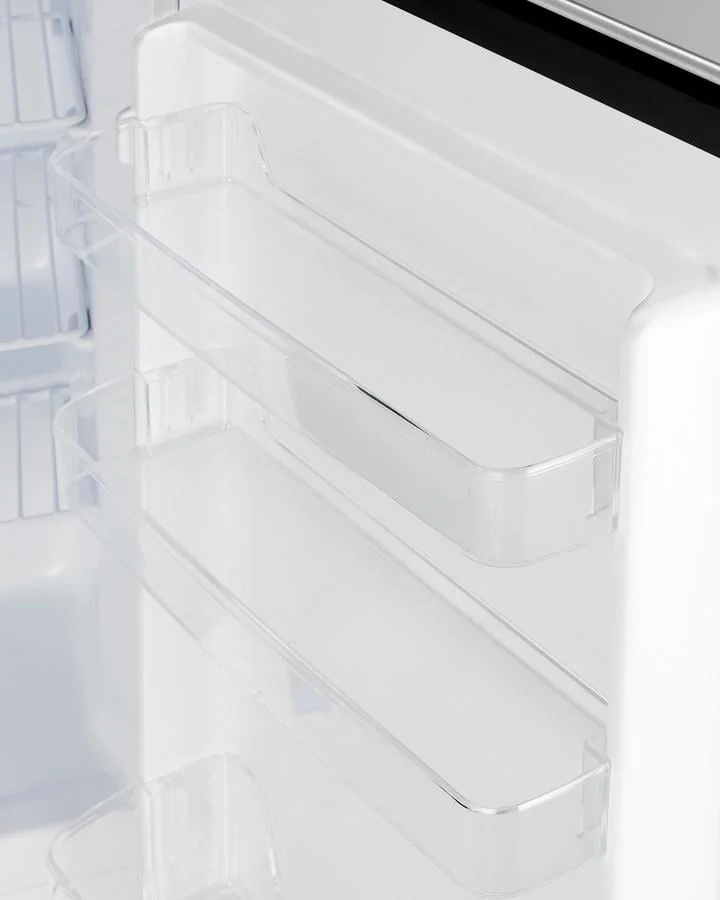

- Three removable door racks for additional storage of larger items
- 32" height allows easy installation under lower ADA compliant counters
- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- Improved insulation for an efficient performance
Specifications
Specifications
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
20.25" W
Width (side to side)
- 20.25" W
Depth (front to back)
24.38" D
Depth (front to back)
- 24.38" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
2.68
Refrigerator Total Capacity
- 2.68
Freezer Type
Upright
Freezer Type
- Upright
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
2.68
Freezer Cubic Feet Capacity
- 2.68
Overview
Height of Cabinet
31.75" (81 cm)
Height of Cabinet
- 31.75" (81 cm)
Height to Hinge Cap
32.0" (81 cm)
Height to Hinge Cap
- 32.0" (81 cm)
Width
20.25" (51 cm)
Width
- 20.25" (51 cm)
Depth
23.0" (58 cm)
Depth
- 23.0" (58 cm)
Depth with Handle
24.38" (62 cm)
Depth with Handle
- 24.38" (62 cm)
Depth with door at 90(degree)
40.25" (102 cm)
Depth with door at 90(degree)
- 40.25" (102 cm)
Capacity
2.68 cu.ft. (76 L)
Capacity
- 2.68 cu.ft. (76 L)
Defrost Type
Manual
Defrost Type
- Manual
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Energy Usage/Year
266.0kWh/year
Energy Usage/Year
- 266.0kWh/year
Amps
0.6
Amps
- 0.6
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
75.0 lbs. (34 kg)
Weight
- 75.0 lbs. (34 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101076607
UPC
- 761101076607
Freezer
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Interior Height
23.75" (60 cm)
Interior Height
- 23.75" (60 cm)
Interior Width
14.5" (37 cm)
Interior Width
- 14.5" (37 cm)
Interior Depth
17.0" (43 cm)
Interior Depth
- 17.0" (43 cm)
Shelf Type
Wire
Shelf Type
- Wire
Shelf Qty
3
Shelf Qty
- 3
Full Door Shelves
3
Full Door Shelves
- 3
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Exterior
Fan Type
- Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.83 oz.
Refrigerant Amount
- 1.83 oz.
High Side PSI
180.0
High Side PSI
- 180.0
Low Side PSI
80.0
Low Side PSI
- 80.0
Level Legs
2
Level Legs
- 2
Wheels
2
Wheels
- 2
Compressor Step Height
5.75" (15 cm)
Compressor Step Height
- 5.75" (15 cm)
Compressor Step Width
14.5" (37 cm)
Compressor Step Width
- 14.5" (37 cm)
Compressor Step Depth
6.0" (15 cm)
Compressor Step Depth
- 6.0" (15 cm)
Temperature Range
-13 to 5 F
Temperature Range
- -13 to 5 F
Sound Level
33.1 dBa
Sound Level
- 33.1 dBa
Features
Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius, User-set high/low temperature alarms provide added security if temperature goes beyond setpoint, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Audible alarm will sound if the door is left ajar for over a minute, Space-saving design that offers easier cleanability, Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles, Three removable door racks for additional storage of larger items, 32" height allows easy installation under lower ADA compliant counters, Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior, Improved insulation for an efficient performance
- Digital thermostat offers easy temperature management with a readout in Fahrenheit or Celsius
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Audible alarm will sound if the door is left ajar for over a minute
- Space-saving design that offers easier cleanability
- Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size: 19 13/16" W x 27 1/8" H; customers provide their own handles
- Three removable door racks for additional storage of larger items
- 32" height allows easy installation under lower ADA compliant counters
- Three adjustable wire shelves for optimal storage in 2.68 cu. ft. interior
- Improved insulation for an efficient performance
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 21" Wide Built-In All-Freezer, Ada Compliant (Panel Not Included), made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Freezers, Upright Freezer, Chest Freezer, Refrigerator Freezer, Refridgerator and Freezer, Side by Side Refrigerator Freezer, Side x Side Refrigerator Freezer, Bottom Refrigerator Freezer, Compact Freezer, Upright Freezer, Frozen Food Storage, Food Storage, Appliances, Kitchen Appliances, Fridge Freezer, Deep Freezers, Ice Box, Icebox, Freezer Unit, Chest Freezers, Cold Storage
Reference #: ALFZ37BIF
