lessDimensions:
23.38" W
×
25.0" D
×
31.75" H
Width (side to side) | 23.38 |
Depth (front to back) | 25.0 |
Height (bottom to top) | 31.75 |
Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description

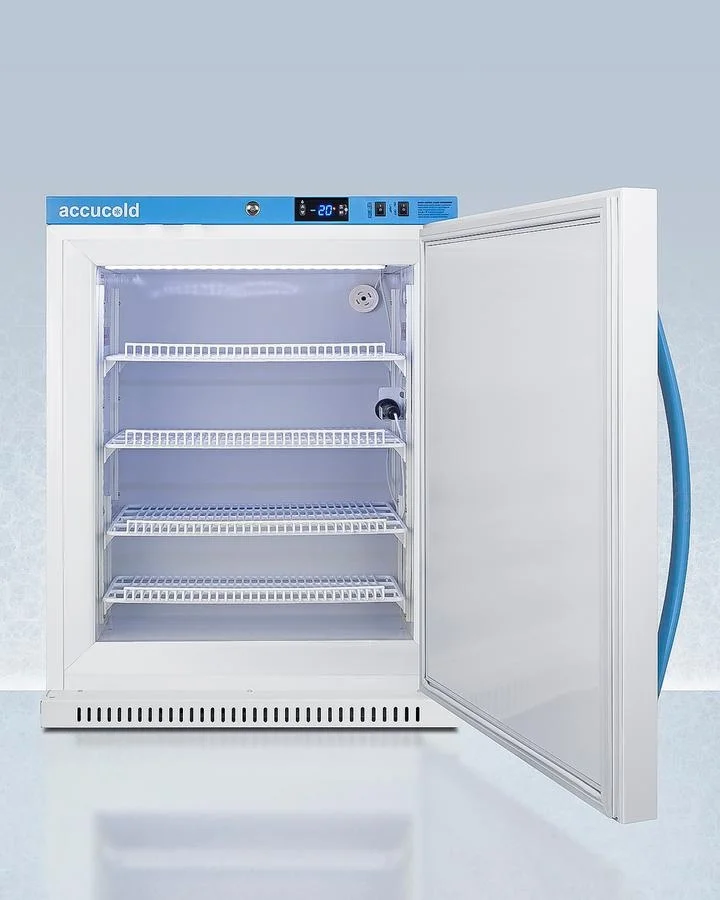

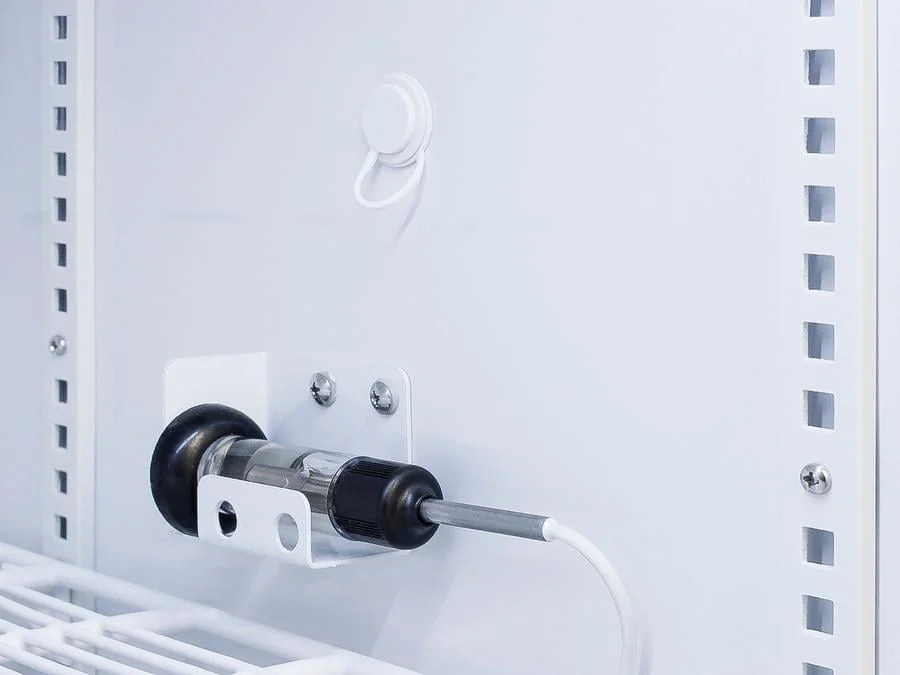

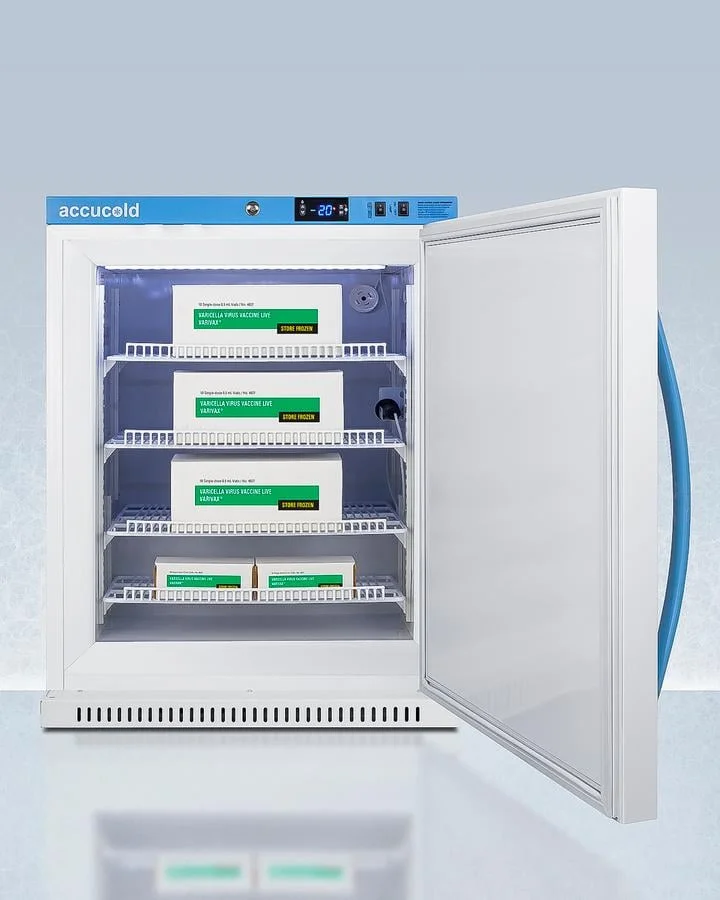

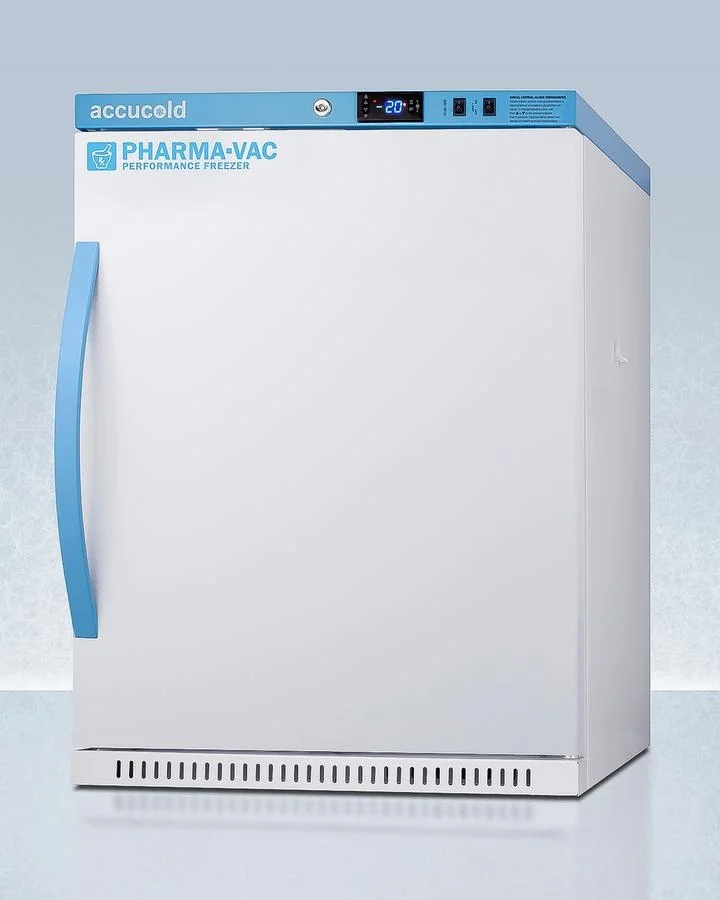

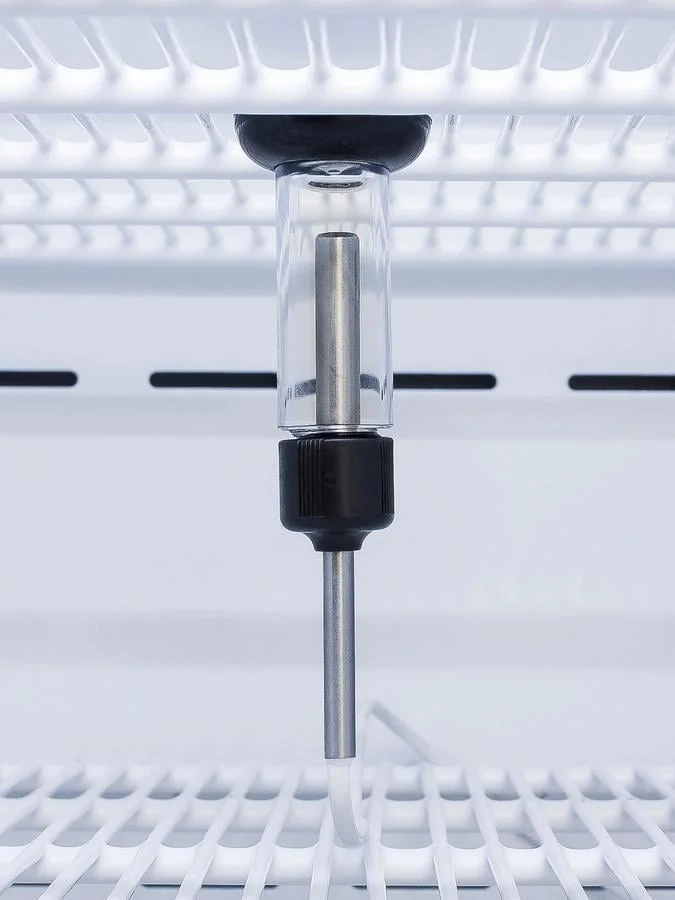

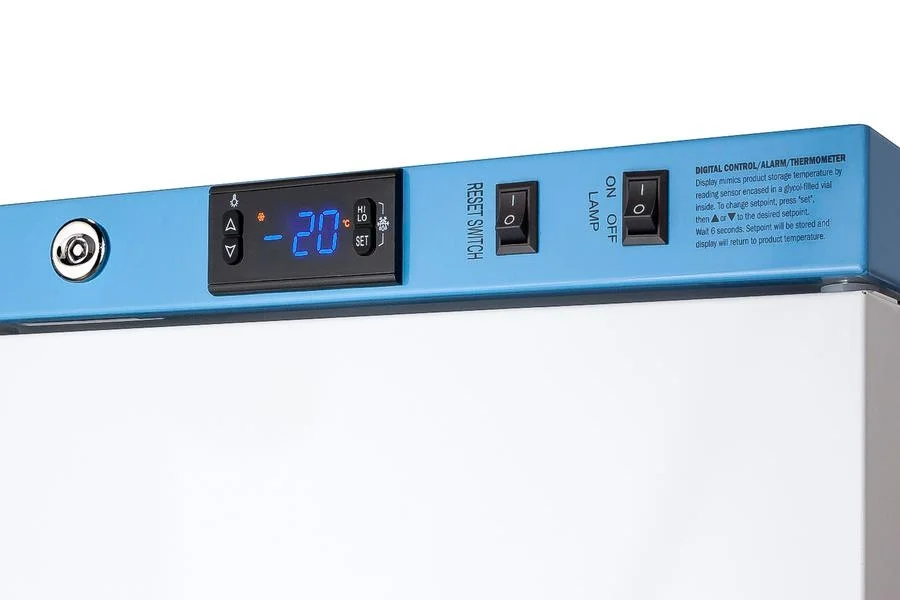

moreAccucold's Pharma-Vac Performance Series are upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines. The AFZ5PVBIADA is a 3.88 cu.ft. all-freezer with a temperature range of -30°C to -10°C as recommended for a variety of vaccines and pharmaceuticals. It is designed for freestanding or recessed installation and sized just under 32" high to fit under lower counters complying with ADA guidelines for accessibility. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit to the nearest tenth of a degree. The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital grade cord with 'green dot' plug is also included for added safety in high traffic areas. Inside, this freezer features adjustable plastic-coated wire shelves that can be positioned at 1/2" increments to accommodate virtually any sized item. This unit includes LED internal lighting with an on/off rocker switch. The interior is constructed from white powder coated metal to ensure added durability and better temperature retention. Static manual defrost cooling helps to ensure stable temperature conditions. The AFZ5PVBIADA comes in a white cabinet finish with a blue accented control panel. The factory-installed antimicrobial handle is powder-coated with naturally occurring silver ions, which help to reduce the spread of germs, allowing for a safer, cleaner user experience. The user-reversible door ships with a right hand swing and self-closing function, while a factory-installed lock provides security as needed, with two keys for staff use. Powerful magnetic gaskets ensure a positive seal. Designed with hydrocarbon refrigerant, Accucold Performance series freezers provide an energy efficient solution to vaccine storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible. Additional sizes, as well as matching refrigerators, are also available. Explore the full Pharma-Vac series at accucold.com/pharmavac. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory.

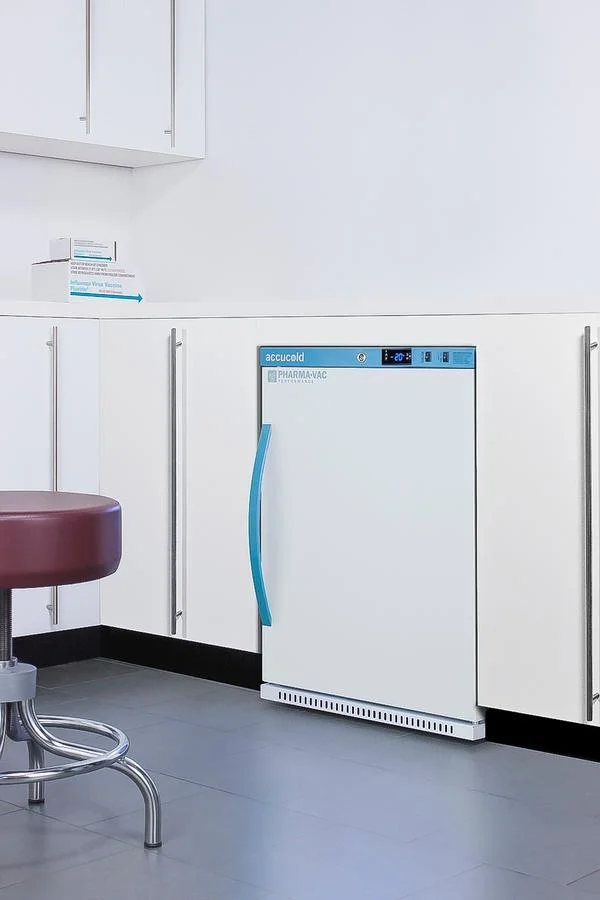

- Versatile design allows recessed installation under counters or freestanding use
- Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
- Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Static cooling system for an efficient and stable interior
- Just under 32" tall designed to fit under ADA compliant counters
- The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
- Meets UL-471 commercial standards
- Intuitive controls let you adjust the interior temperature between -30°C to -10 C
Specifications
Specifications
Dimensions
Height (bottom to top)
31.75" H
Height (bottom to top)
- 31.75" H
Width (side to side)
23.38" W
Width (side to side)
- 23.38" W
Depth (front to back)
25.0" D
Depth (front to back)
- 25.0" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Storage
Number of Shelves
4
Number of Shelves
- 4
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
4.0
Refrigerator Total Capacity
- 4.0
Freezer Type
Upright
Freezer Type
- Upright
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
4.0
Freezer Cubic Feet Capacity
- 4.0
Overview
Height of Cabinet
31.75" (81 cm)
Height of Cabinet
- 31.75" (81 cm)
Width
23.38" (59 cm)
Width
- 23.38" (59 cm)
Width with Door Open
23.88" (61 cm)
Width with Door Open
- 23.88" (61 cm)
Depth
25.0" (64 cm)
Depth
- 25.0" (64 cm)
Depth with Handle
26.75" (68 cm)
Depth with Handle
- 26.75" (68 cm)
Depth with door at 90(degree)
47.0" (119 cm)
Depth with door at 90(degree)
- 47.0" (119 cm)
Capacity
3.88 cu.ft. (110 L)
Capacity
- 3.88 cu.ft. (110 L)
Defrost Type
Manual
Defrost Type
- Manual
Door
White
Door
- White
Cabinet
White
Cabinet
- White
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
1.3
Amps
- 1.3
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
125.0 lbs. (57 kg)
Weight
- 125.0 lbs. (57 kg)
Parts & Labor Warranty
2 Years
Parts & Labor Warranty
- 2 Years
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101102887
UPC
- 761101102887
Freezer
Door Swing
RHD
Door Swing
- RHD
Reversible
Yes
Reversible
- Yes
Interior Height
22.5" (57 cm)
Interior Height
- 22.5" (57 cm)
Interior Width
18.0" (46 cm)
Interior Width
- 18.0" (46 cm)
Interior Depth
18.0" (46 cm)
Interior Depth
- 18.0" (46 cm)
Shelf Type
Wire
Shelf Type
- Wire
Shelf Qty
4
Shelf Qty
- 4
Adjustable Shelves
Yes
Adjustable Shelves
- Yes
Thermostat Type
Digital
Thermostat Type
- Digital
Interior Light
Yes
Interior Light
- Yes
Refrigerant Type
R290
Refrigerant Type
- R290
Refrigerant Amount
1.73 oz.
Refrigerant Amount
- 1.73 oz.
High Side PSI
280.0
High Side PSI
- 280.0
Low Side PSI
130.0
Low Side PSI
- 130.0
Compressor Step Height
6.5" (17 cm)
Compressor Step Height
- 6.5" (17 cm)
Compressor Step Width
18.0" (46 cm)
Compressor Step Width
- 18.0" (46 cm)
Compressor Step Depth
7.13" (18 cm)
Compressor Step Depth
- 7.13" (18 cm)
Temperature Range
-30 to -10 C
Temperature Range
- -30 to -10 C
Features
Versatile design allows recessed installation under counters or freestanding use, Visual and audible alarms alert if the interior temperature rises or falls out of set range, Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines, Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit), Static cooling system for an efficient and stable interior, Just under 32" tall designed to fit under ADA compliant counters, The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period, Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications, Meets UL-471 commercial standards, Intuitive controls let you adjust the interior temperature between -30°C to -10 C
- Versatile design allows recessed installation under counters or freestanding use
- Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC guidelines
- Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Static cooling system for an efficient and stable interior
- Just under 32" tall designed to fit under ADA compliant counters
- The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
- Meets UL-471 commercial standards
- Intuitive controls let you adjust the interior temperature between -30°C to -10 C
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 4 Cu.Ft. Vaccine Freezer, Ada Height, made by Summit,
