Description

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces. Sized just under 18 inches wide and 34.75 inches high, model BIM182IFLHD features a front-breathing design for built-in installation underneath standard height counters and includes a include a stainless steel kickplate extender to cover any gaps. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. Inside, the BIM182IFLHD can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience. With its unique size, user-friendly design, and large capacity, the BIM182IFLHD is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSIFLHD . In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
  • Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
  • Unit allows users to choose from small, medium, or large clear ice cubes
  • Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
  • Reduced maintenance with auto defrost system
  • LED lighting automatically illuminates when the door is opened
  • Make the best use of space by installing your icemaker under the counter
  • Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
  • Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
  • Internal pump affords more flexibility in placing the unit

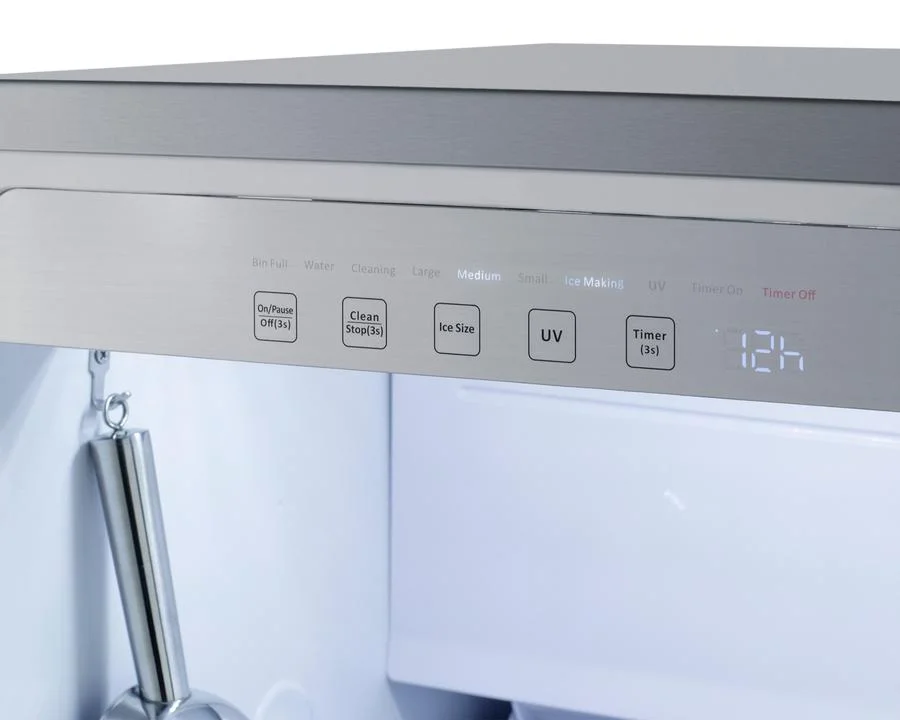

  • Provides easy operation of the unit with indicator lights for each stage of the production process
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information

Rebates

view available rebates
18" Wide Clear Icemaker (Panel Not Included)
18" Wide Clear Icemaker (Panel Not Included)
Freezers Collection
Simon's Price: $3,643
12 Interest Free Monthly Payments Of $304
Design Quiz

Specifications

Specifications

remove

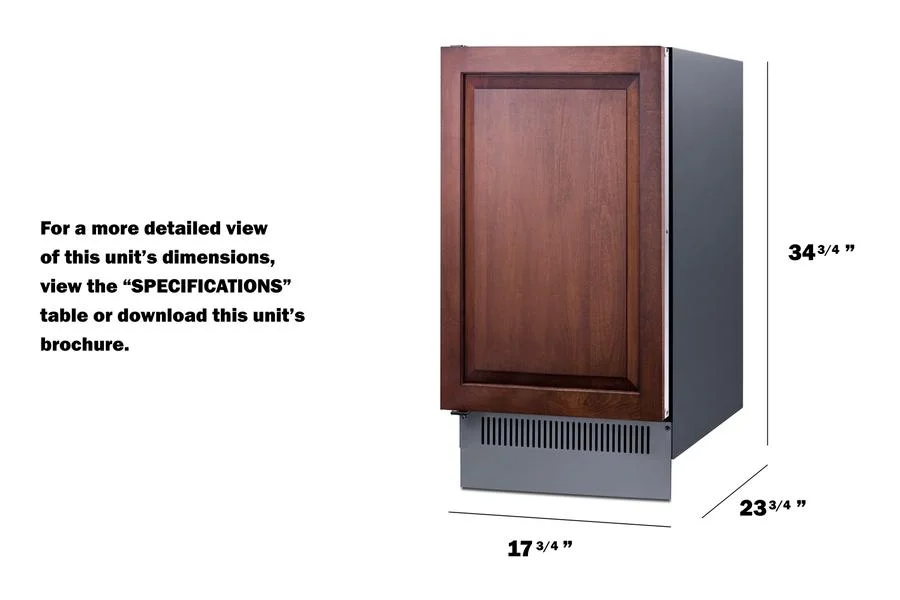

Dimensions

Height (bottom to top) 34.75" H
Height (bottom to top)
  • 34.75" H
Width (side to side) 17.75" W
Width (side to side)
  • 17.75" W

Features

Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day, Unit allows users to choose from small, medium, or large clear ice cubes, Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness), Reduced maintenance with auto defrost system, LED lighting automatically illuminates when the door is opened, Make the best use of space by installing your icemaker under the counter, Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces, Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings, Internal pump affords more flexibility in placing the unit, Provides easy operation of the unit with indicator lights for each stage of the production process
  • Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
  • Unit allows users to choose from small, medium, or large clear ice cubes
  • Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
  • Reduced maintenance with auto defrost system
  • LED lighting automatically illuminates when the door is opened
  • Make the best use of space by installing your icemaker under the counter
  • Unit is sized at 32 1/2" and can be raised to 34 3/4" to best fit a variety of spaces
  • Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
  • Internal pump affords more flexibility in placing the unit
  • Provides easy operation of the unit with indicator lights for each stage of the production process

Overview

Nominal Height 35.0" (89 cm)
Nominal Height
  • 35.0" (89 cm)
Height of Cabinet 34.75" (88 cm)
Height of Cabinet
  • 34.75" (88 cm)
Nominal Width 18.0" (46 cm)
Nominal Width
  • 18.0" (46 cm)
Width 17.75" (45 cm)
Width
  • 17.75" (45 cm)
Depth 23.75" (60 cm)
Depth
  • 23.75" (60 cm)
Depth with door at 90° 41.0" (104 cm)
Depth with door at 90°
  • 41.0" (104 cm)
Defrost Type Automatic
Defrost Type
  • Automatic
Door Panel-Ready
Door
  • Panel-Ready
Cabinet Stainless Steel
Cabinet
  • Stainless Steel
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Amps 11.8
Amps
  • 11.8
Voltage/Frequency 115 V AC/60 Hz
Voltage/Frequency
  • 115 V AC/60 Hz
Weight 95.0 lbs. (43 kg)
Weight
  • 95.0 lbs. (43 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
Compressor Warranty 5 Years
Compressor Warranty
  • 5 Years
UPC 761101150789
UPC
  • 761101150789

Icemaker

Door Swing LHD
Door Swing
  • LHD
Height Adjustable Yes
Height Adjustable
  • Yes
Drain Required Yes
Drain Required
  • Yes
Daily Ice Production 60.0 lbs. (27 kg)
Daily Ice Production
  • 60.0 lbs. (27 kg)
Ice Storage Capacity 33.0 lbs. (15 kg)
Ice Storage Capacity
  • 33.0 lbs. (15 kg)
Ice Shape Cube
Ice Shape
  • Cube
Size of Cube .87" x .87" . 87"
Size of Cube
  • .87" x .87" . 87"
Number of Ice Cube Sizes 3
Number of Ice Cube Sizes
  • 3
Interior Light Yes
Interior Light
  • Yes
Refrigerant Type R290
Refrigerant Type
  • R290
Refrigerant Amount 1.37 oz.
Refrigerant Amount
  • 1.37 oz.
High Side PSI 330.0
High Side PSI
  • 330.0
Low Side PSI 160.0
Low Side PSI
  • 160.0
Interior Height 18.75" (48 cm)
Interior Height
  • 18.75" (48 cm)
Interior Width 14.75" (37 cm)
Interior Width
  • 14.75" (37 cm)
Interior Depth 16.75" (43 cm)
Interior Depth
  • 16.75" (43 cm)
Level Legs 4
Level Legs
  • 4

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
