18" Wide Clear Icemaker, Ada Compliant (Panel Not Included)
SKU: BIM182ADAIF
Simon's Price:
$3,587
12 Interest Free Monthly Payments Of
$302
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question

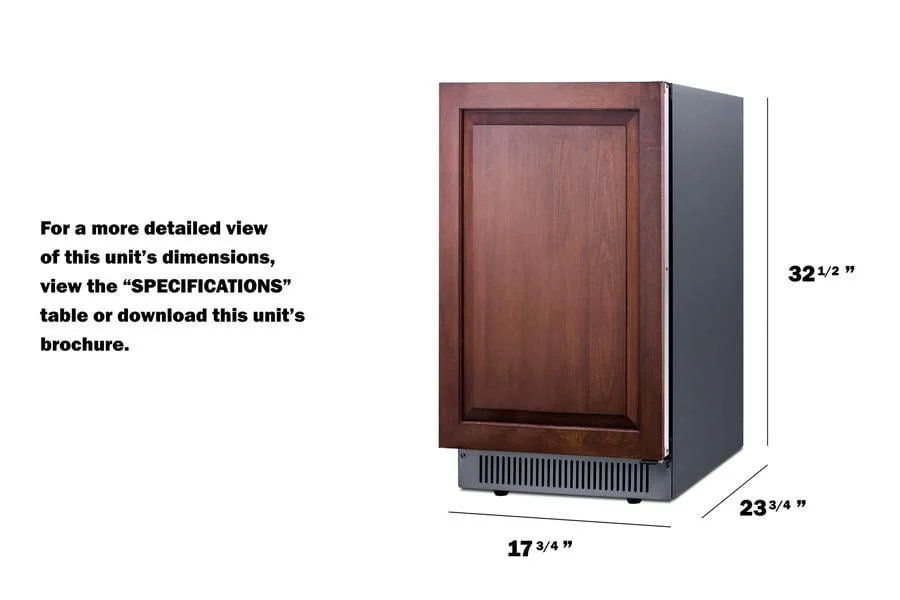

lessDimensions:
17.75" W
×
23.75" D
×
32.5" H
Width (side to side) | 17.75 |
Depth (front to back) | 23.75 |
Height (bottom to top) | 32.5 |
Disclaimer
Description
moreSummit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for 18 inch wide spaces. Sized just under 18 inches wide and 32.5 inches high, model BIM182ADAIF features a front-breathing design for built-in installation underneath ADA-compliant counters. The height can also be raised up to 34.75 inches to accommodate more standard counters. We include a stainless steel kickplate extender to fill the gap. The door includes an integrated stainless steel frame that allows it to accept overlay panels, creating a custom look to match or complement the rest of you cabinetry (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness). This unit features a sealed back and right angle cord for added space savings. Inside, the BIM182ADAIF can produce 60 lbs. of clear ice cubes ice daily. The intuitive control panel ensures ease of use. An indicator light alerts users to each step in the production process and when the bin is full. The interior features UV lighting for easy visibility and added protection against bacteria. The automatic defrost system minimizes user maintenance. This model has an internal pump and ships with the drain hose, water hose, a removable ice bucket, and ice scoop. The interior wall includes a hook to hang the scoop for added convenience. With its unique size, user-friendly design, and large capacity, the BIM182ADAIF is a great fit for various kitchen setups. For a weatherproof outdoor version, see model BIM182OSADAIF. In addition to this icemaker, Summit manufactures drain-free choices, as well as traditional 15 inch wide icemakers and a full assortment of matching 18 inch wide refrigerators, beverage centers, and wine cellars. Browse the complete lineup to complete any residential or commercial undercounter space.
- Make the best use of space by installing your icemaker under the counter

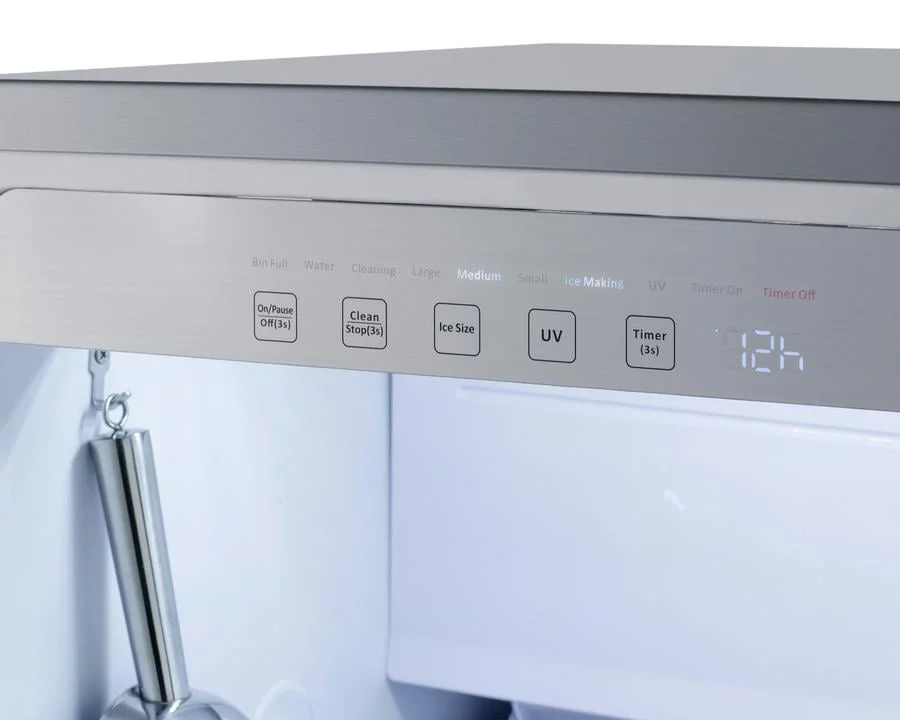

- Provides easy operation of the unit with indicator lights for each stage of the production process
- 32.5" height allows easy installation under lower ADA compliant counters
- Unit allows users to choose from small, medium, or large clear ice cubes
- Reduced maintenance with auto defrost system
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)

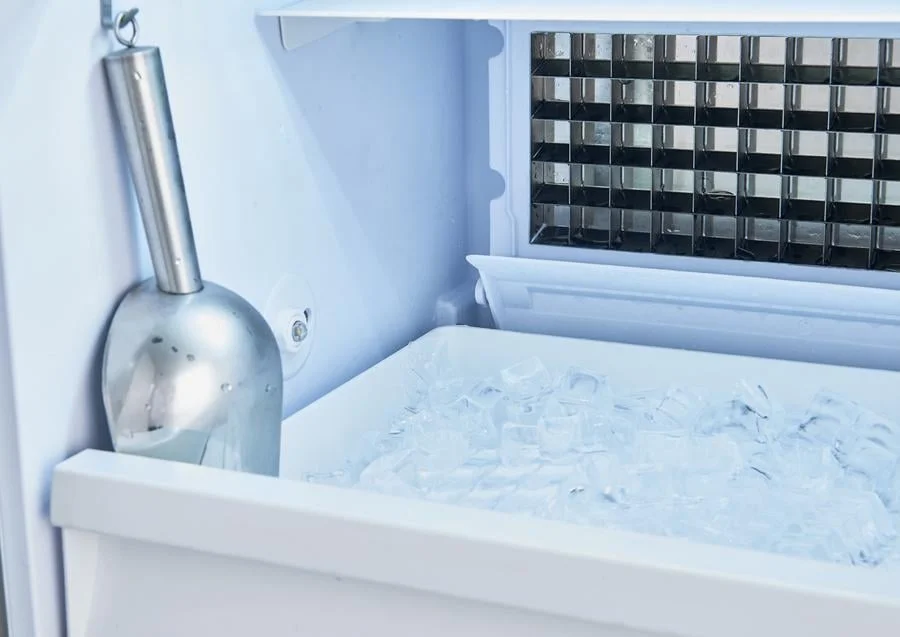

- Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
- Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
- This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
- Internal pump affords more flexibility in placing the unit
Specifications
Specifications
Dimensions
Height (bottom to top)
32.5" H
Height (bottom to top)
- 32.5" H
Width (side to side)
17.75" W
Width (side to side)
- 17.75" W
Depth (front to back)
23.75" D
Depth (front to back)
- 23.75" D
Storage
Number of Shelves
0
Number of Shelves
- 0
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Features
Make the best use of space by installing your icemaker under the counter, Provides easy operation of the unit with indicator lights for each stage of the production process, 32.5" height allows easy installation under lower ADA compliant counters, Unit allows users to choose from small, medium, or large clear ice cubes, Reduced maintenance with auto defrost system, Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness), Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day, Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings, This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic, Internal pump affords more flexibility in placing the unit
- Make the best use of space by installing your icemaker under the counter
- Provides easy operation of the unit with indicator lights for each stage of the production process
- 32.5" height allows easy installation under lower ADA compliant counters
- Unit allows users to choose from small, medium, or large clear ice cubes
- Reduced maintenance with auto defrost system
- Integrated stainless steel door frame allows you to mount full overlay panels over the door to create a custom look that can blend into cabinetry with no exposed frame (panel size: (recommended panel dimensions: 28 1/16" H x 17 11/16" W at 3/4" thickness)
- Can make up to 60 lbs. of clear ice cubes in a day cycle and store up to 33 lbs. per day
- Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings
- This unit can be raised to 34.75", with a taller kickplate included for a seamless aesthetic
- Internal pump affords more flexibility in placing the unit
Overview
Nominal Height
32.0" (81 cm)
Nominal Height
- 32.0" (81 cm)
Height of Cabinet
32.5" (83 cm)
Height of Cabinet
- 32.5" (83 cm)
Nominal Width
18.0" (46 cm)
Nominal Width
- 18.0" (46 cm)
Width
17.75" (45 cm)
Width
- 17.75" (45 cm)
Depth
23.75" (60 cm)
Depth
- 23.75" (60 cm)
Depth with door at 90(degree)
41.0" (104 cm)
Depth with door at 90(degree)
- 41.0" (104 cm)
Defrost Type
Automatic
Defrost Type
- Automatic
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
11.8
Amps
- 11.8
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
95.0 lbs. (43 kg)
Weight
- 95.0 lbs. (43 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101150680
UPC
- 761101150680
Icemaker
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Height Adjustable
Yes
Height Adjustable
- Yes
Drain Required
Yes
Drain Required
- Yes
Daily Ice Production
60.0 lbs. (27 kg)
Daily Ice Production
- 60.0 lbs. (27 kg)
Ice Storage Capacity
33.0 lbs. (15 kg)
Ice Storage Capacity
- 33.0 lbs. (15 kg)
Ice Shape
Cube
Ice Shape
- Cube
Size of Cube
.87" x .87" . 87"
Size of Cube
- .87" x .87" . 87"
Number of Ice Cube Sizes
3
Number of Ice Cube Sizes
- 3
Interior Light
Yes
Interior Light
- Yes
Refrigerant Type
R290
Refrigerant Type
- R290
Refrigerant Amount
1.37 oz.
Refrigerant Amount
- 1.37 oz.
High Side PSI
330.0
High Side PSI
- 330.0
Low Side PSI
160.0
Low Side PSI
- 160.0
Interior Height
18.75" (48 cm)
Interior Height
- 18.75" (48 cm)
Interior Width
14.75" (37 cm)
Interior Width
- 14.75" (37 cm)
Interior Depth
16.75" (43 cm)
Interior Depth
- 16.75" (43 cm)
Level Legs
4
Level Legs
- 4
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 18" Wide Clear Icemaker, Ada Compliant (Panel Not Included), made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: BIM182ADAIF
