18" 8 Lb. Drain-Free Icemaker, Ada Compliant (Panel Not Included)
SKU: BIM18IFADA
Simon's Price:
$2,793
12 Interest Free Monthly Payments Of
$233
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
17.75" W
×
25.75" D
×
31.38" H
| Width (side to side) | 17.75 |
| Depth (front to back) | 25.75 |
| Height (bottom to top) | 31.38 |
Disclaimer
Description

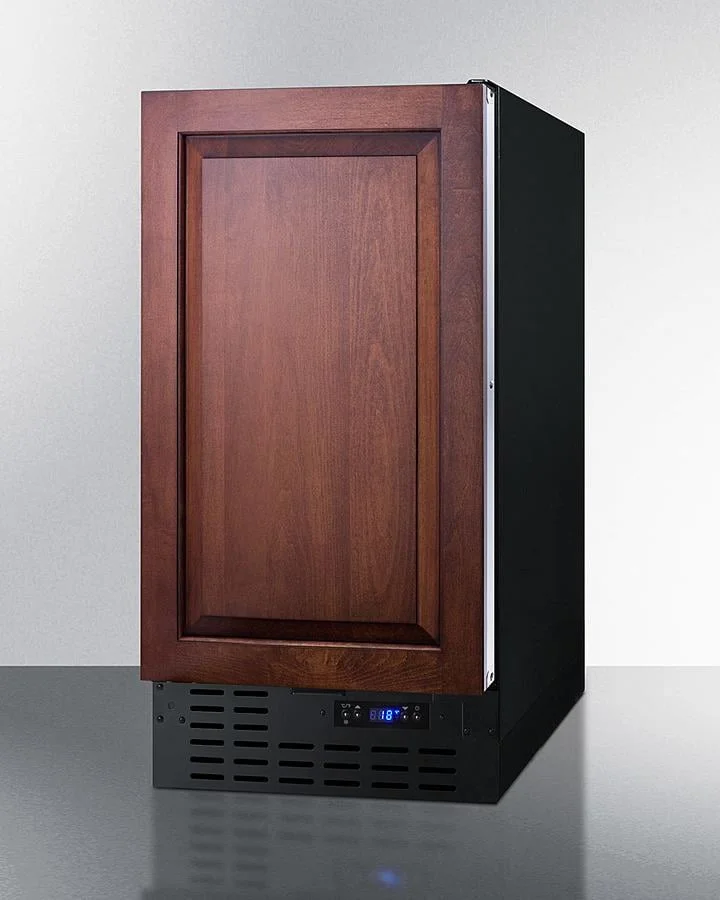

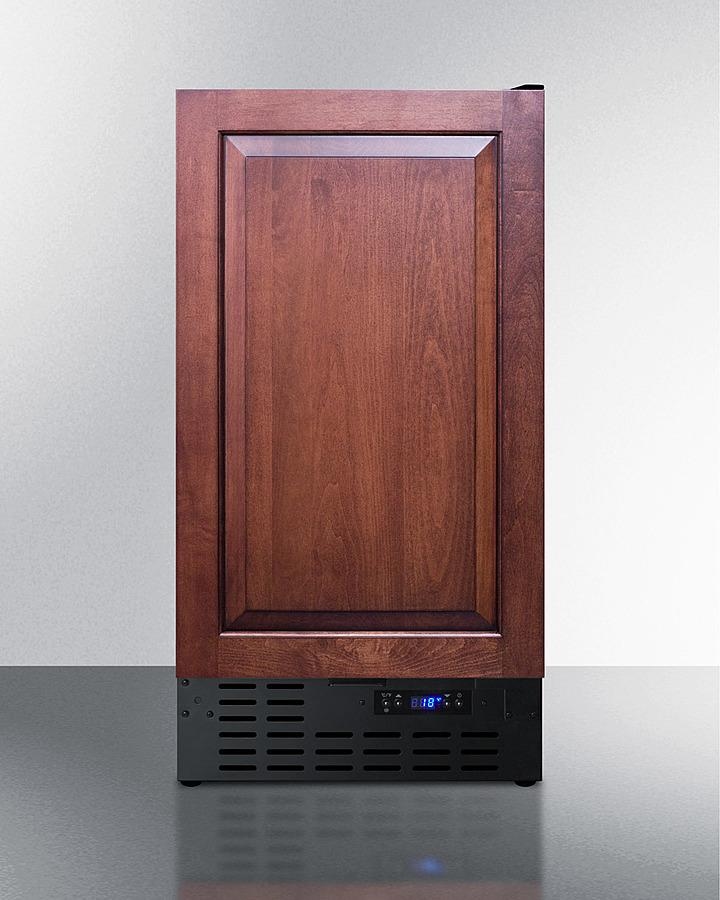

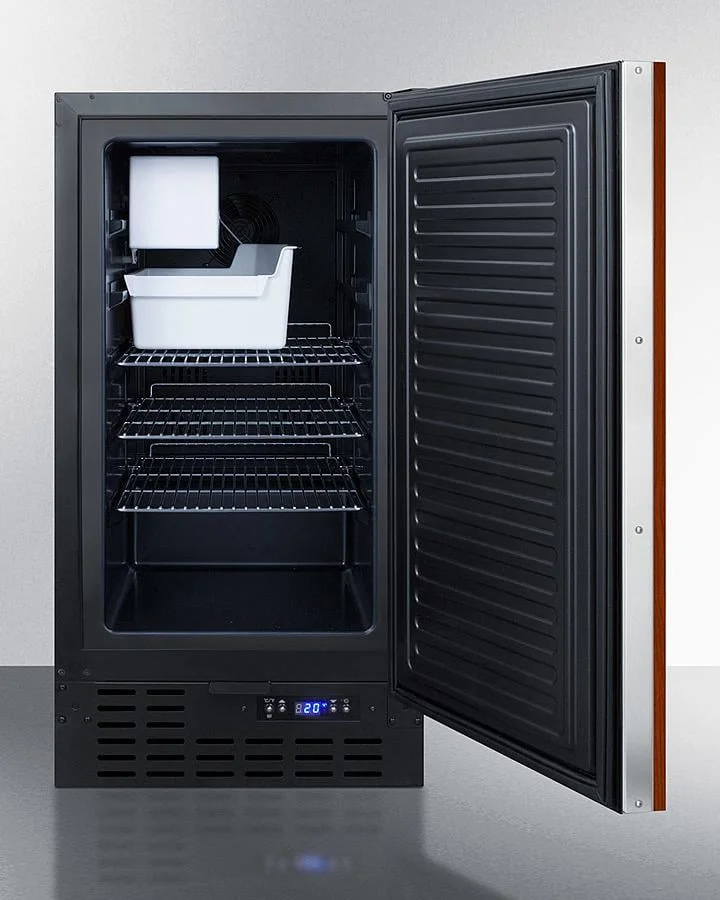

moreSummit brings convenient luxury under the counter with built-in icemakers uniquely sized for use in ADA compliant settings. Sized just under 18 inches wide and 32 inches high, the BIM18IFADA is ideal for use under lower counters following ADA compliant guidelines. The door comes with Summit's integrated stainless steel frame designed to accept overlay panels for a custom look that matches or complements other cabinetry. No drain or pump is required for use, offering more flexibility in where you place the unit. Inside, the BIM18IFADA can produce and hold 8 lbs. of crescent-shaped ice cubes in the removable bucket. Additional chrome shelves allow you to store other frozen items as needed. This unit utilizes frost-free operation to help reduce user maintenance. With its ideal size and customizable design, the BIM18IFADA is a great solution to keeping a steady supply of ice on hand in smaller ADA compliant kitchen spaces. Matching 18 inch wide refrigerators, beverage centers, and wine cellars are also available. Browse our website to explore our complete selection.
- Convenient design allows more flexibility in positioning the unit
- Temperature readout can be shown in Celsius or Fahrenheit
- Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
- Eliminates the need to manually defrost the interior
- Adjustable chrome shelves included to accommodate additional items
- Make the best use of space by installing your appliance under the counter
- Makes and stores up to 8 lbs. of crescent cubes
- Sized just under 32" high for installation under lower ADA compliant counters
- Bucket can be removed for fast and easy cleaning
- Electronic controls for precise temperature management.
Rebates
view available rebates
18" 8 Lb. Drain-Free Icemaker, Ada Compliant (Panel Not Included)
Freezers Collection
Simon's Price:
$2,793
12 Interest Free Monthly Payments Of
$233
Specifications
Specifications
Dimensions
Height (bottom to top)
31.38" H
Height (bottom to top)
- 31.38" H
Width (side to side)
17.75" W
Width (side to side)
- 17.75" W
Depth (front to back)
25.75" D
Depth (front to back)
- 25.75" D
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
2.7
Refrigerator Total Capacity
- 2.7
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
2.7
Freezer Cubic Feet Capacity
- 2.7
Features
Convenient design allows more flexibility in positioning the unit, Temperature readout can be shown in Celsius or Fahrenheit, Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.), Eliminates the need to manually defrost the interior, Adjustable chrome shelves included to accommodate additional items, Make the best use of space by installing your appliance under the counter, Makes and stores up to 8 lbs. of crescent cubes, Sized just under 32" high for installation under lower ADA compliant counters, Bucket can be removed for fast and easy cleaning, Electronic controls for precise temperature management.
- Convenient design allows more flexibility in positioning the unit
- Temperature readout can be shown in Celsius or Fahrenheit
- Stainless steel door frame accepts full overlay panels for users to create a seamless custom look (panel size: 17 1/2" W x 27 3/4" H; maximum weight: 10 lbs.)
- Eliminates the need to manually defrost the interior
- Adjustable chrome shelves included to accommodate additional items
- Make the best use of space by installing your appliance under the counter
- Makes and stores up to 8 lbs. of crescent cubes
- Sized just under 32" high for installation under lower ADA compliant counters
- Bucket can be removed for fast and easy cleaning
- Electronic controls for precise temperature management.
Overview
Nominal Height
32.0" (81 cm)
Nominal Height
- 32.0" (81 cm)
Height of Cabinet
31.38" (80 cm)
Height of Cabinet
- 31.38" (80 cm)
Nominal Width
18.0" (46 cm)
Nominal Width
- 18.0" (46 cm)
Width
17.75" (45 cm)
Width
- 17.75" (45 cm)
Nominal Depth
24.0" (61 cm)
Nominal Depth
- 24.0" (61 cm)
Depth
24.0" (61 cm)
Depth
- 24.0" (61 cm)
Depth with Handle
25.75" (65 cm)
Depth with Handle
- 25.75" (65 cm)
Depth with door at 90°
40.0" (102 cm)
Depth with door at 90°
- 40.0" (102 cm)
Capacity
2.7 cu.ft. (76 L)
Capacity
- 2.7 cu.ft. (76 L)
Defrost Type
Frost-Free
Defrost Type
- Frost-Free
Door
Panel-Ready
Door
- Panel-Ready
Cabinet
Black
Cabinet
- Black
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
1.1
Amps
- 1.1
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
82.0 lbs. (37 kg)
Weight
- 82.0 lbs. (37 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101063751
UPC
- 761101063751
Icemaker
Door Swing
RHD
Door Swing
- RHD
Reversible
Factory Reversible
Reversible
- Factory Reversible
Daily Ice Production
8.0 lbs. (4 kg)
Daily Ice Production
- 8.0 lbs. (4 kg)
Ice Storage Capacity
8.0 lbs. (4 kg)
Ice Storage Capacity
- 8.0 lbs. (4 kg)
Ice Shape
Crescent
Ice Shape
- Crescent
Number of Ice Cube Sizes
1
Number of Ice Cube Sizes
- 1
Interior Light
Yes
Interior Light
- Yes
Fan Type
Interior and Exterior
Fan Type
- Interior and Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.06 oz.
Refrigerant Amount
- 1.06 oz.
High Side PSI
270.0
High Side PSI
- 270.0
Low Side PSI
103.0
Low Side PSI
- 103.0
Interior Height
23.5" (60 cm)
Interior Height
- 23.5" (60 cm)
Interior Width
12.75" (32 cm)
Interior Width
- 12.75" (32 cm)
Interior Depth
16.75" (43 cm)
Interior Depth
- 16.75" (43 cm)
Compressor Step Height
4.5" (11 cm)
Compressor Step Height
- 4.5" (11 cm)
Compressor Step Width
12.75" (32 cm)
Compressor Step Width
- 12.75" (32 cm)
Compressor Step Depth
4.5" (11 cm)
Compressor Step Depth
- 4.5" (11 cm)
Level Legs
4
Level Legs
- 4
Temperature Range
-22 to 14 F
Temperature Range
- -22 to 14 F
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 18" 8 Lb. Drain-Free Icemaker, Ada Compliant (Panel Not Included), made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
