20" Wide Built-In Vaccine All-Freezer, Ada Compliant
SKU: ADA305AFSSTBC
Simon's Price:
$1,789
12 Interest Free Monthly Payments Of
$151
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
19.75" W
×
24.38" D
×
32.0" H
Width (side to side) | 19.75 |
Depth (front to back) | 24.38 |
Height (bottom to top) | 32.0 |
Freezer Capacity Ranges | < 5 cu.ft. |
Disclaimer
Description

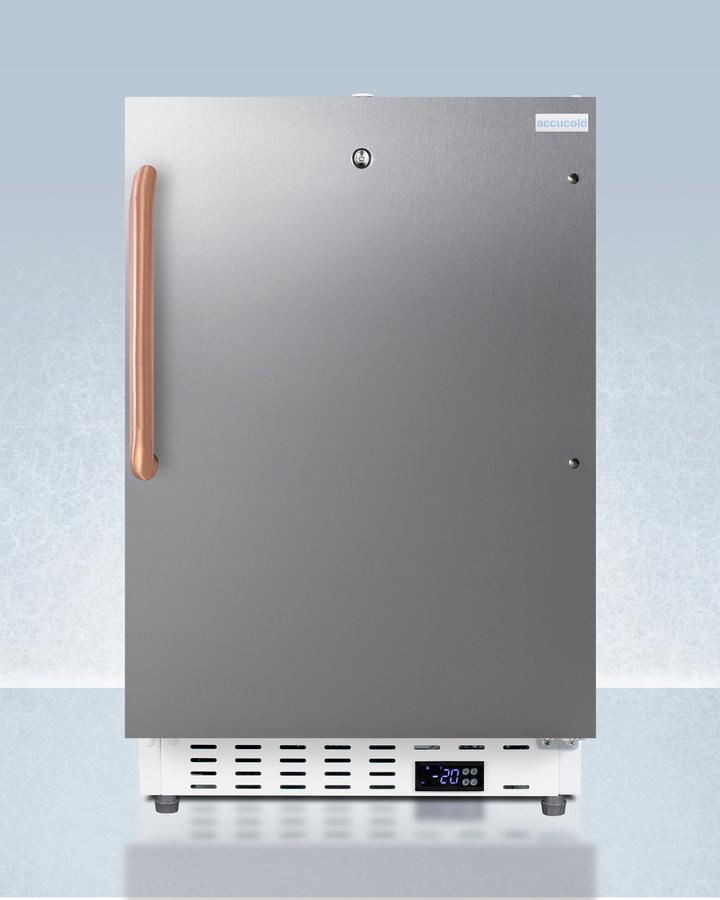

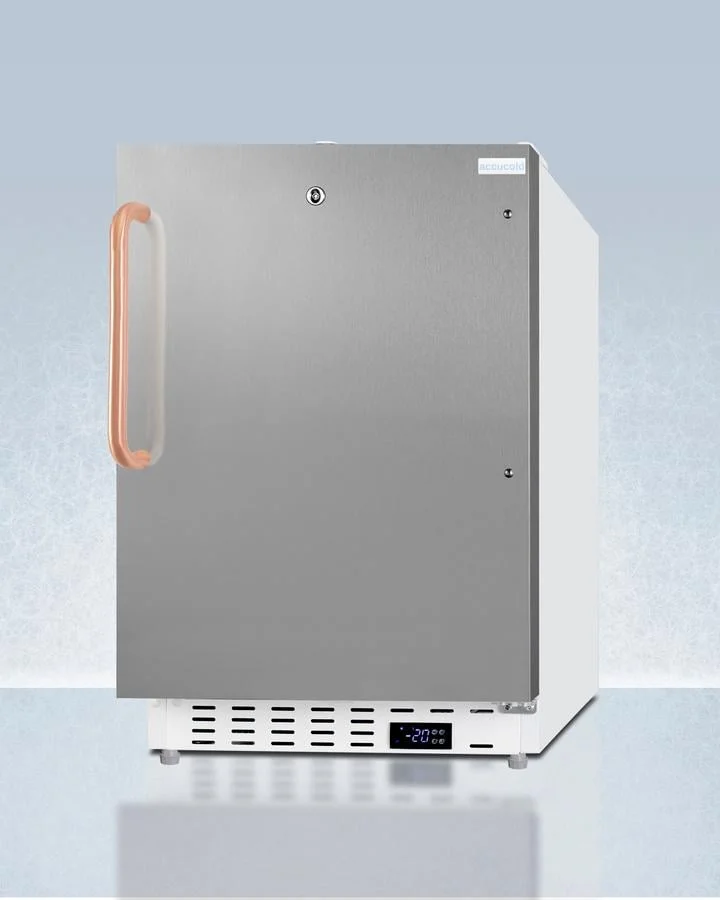

moreAccucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions. The ADA305AFSSTBC is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user reversible stainless steel door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal. The ADA305AFSSTBC includes a factory-installed towel bar style handle made from pure copper. Through its natural antimicrobial properties, copper will kill microbes, including viruses, in a shorter timeframe than most other metal surfaces allowing for a safer, cleaner user experience. Inside, the ADA305AFSSTBC can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AFSSTBC makes an ideal choice for various facilities in need of a dependable freezer capable of -20 C/-25 C operation. For a complete set, pair this unit with the matching ADA404REFSSTBC all-refrigerator. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.

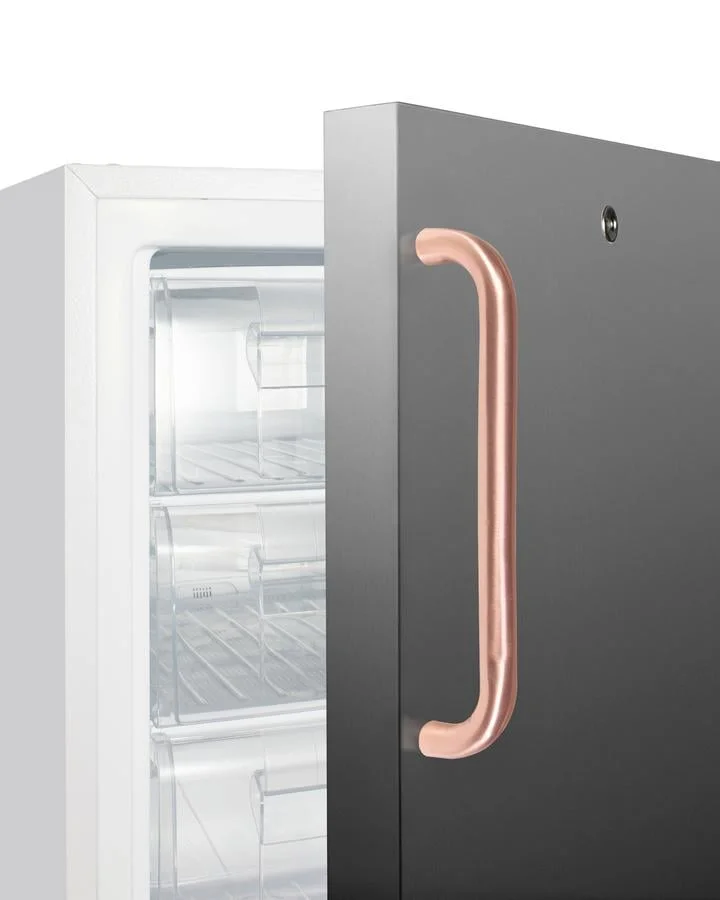

- Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness

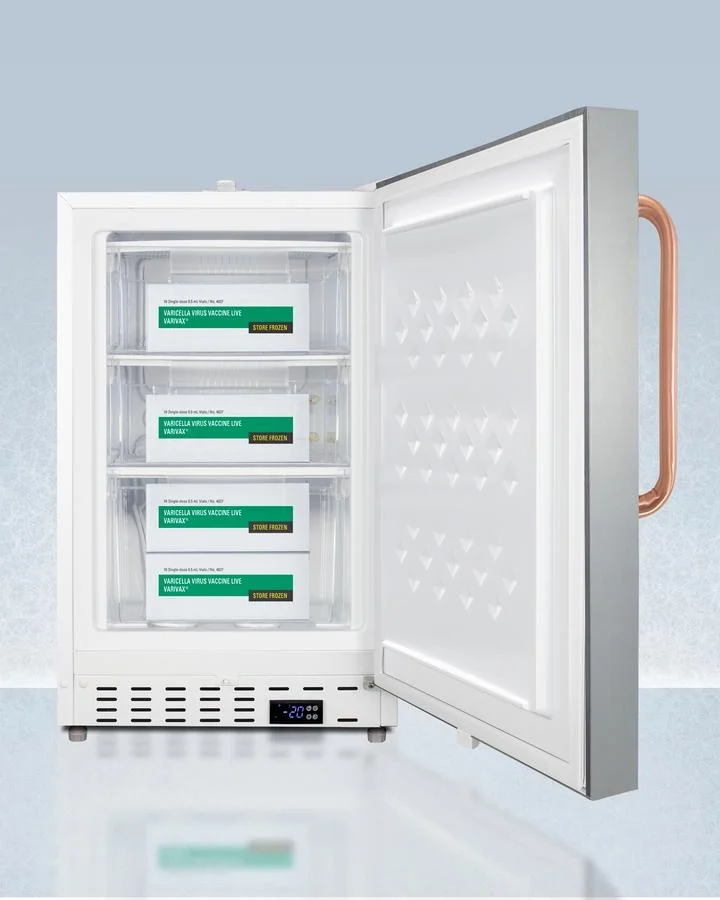

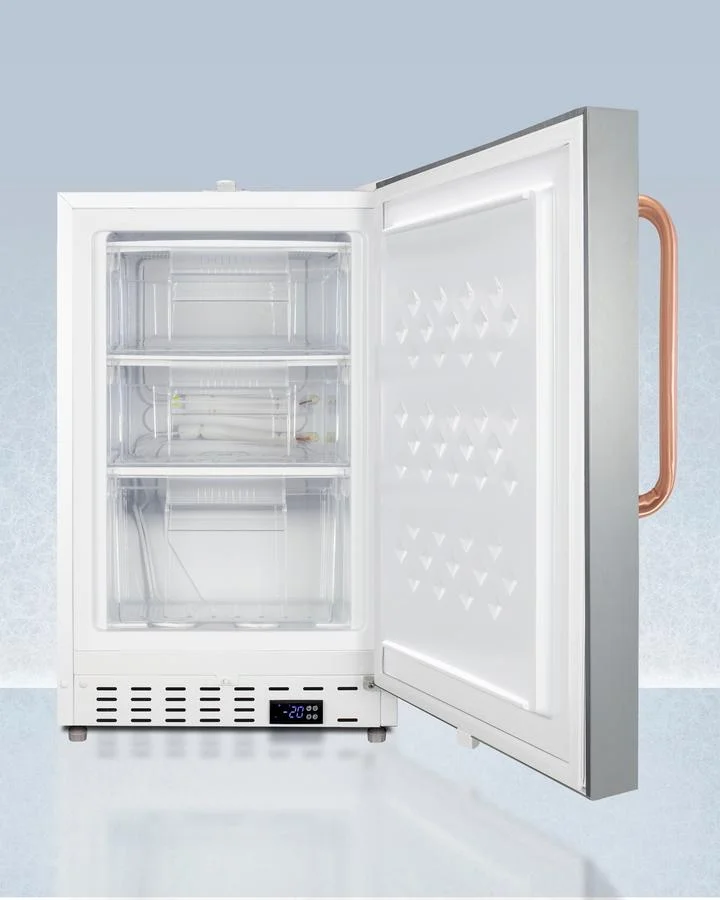

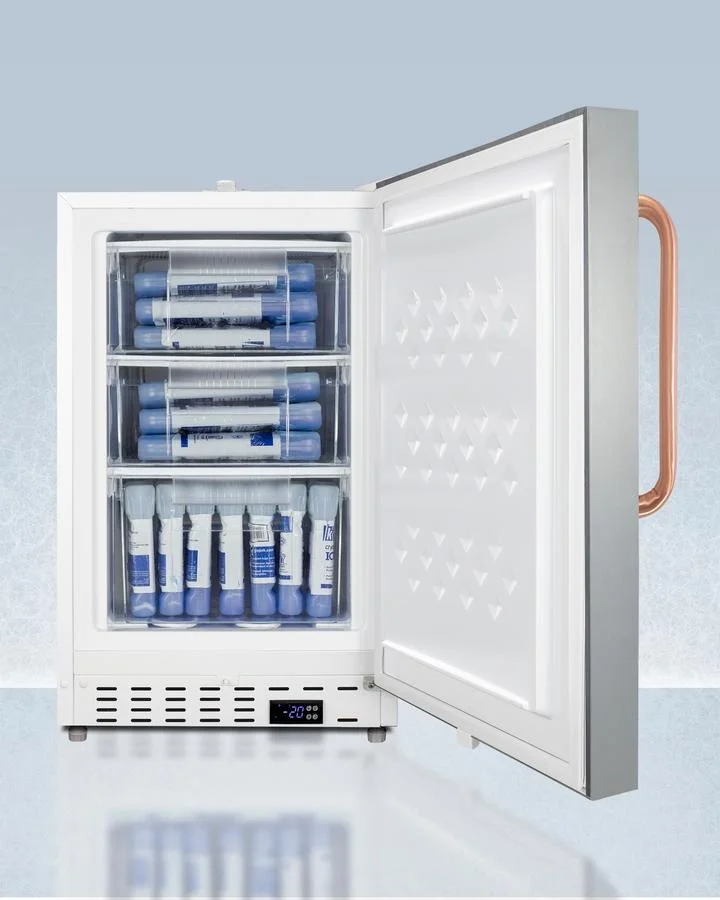

- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- 32" height allows easy installation under lower ADA compliant counters
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment

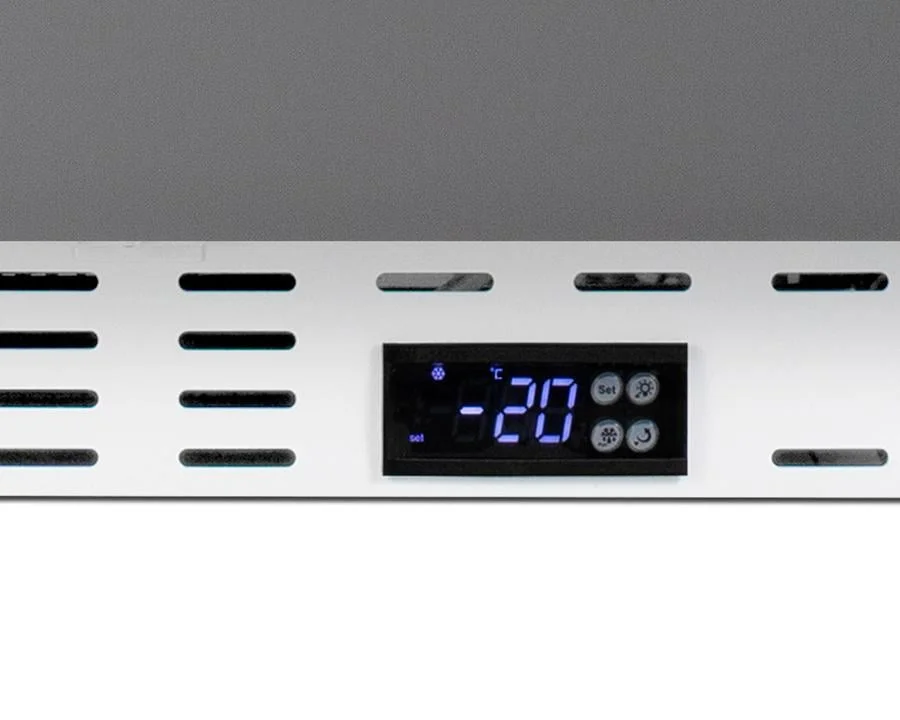

- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Rebates
view available rebates
Specifications
Specifications
Dimensions
Height (bottom to top)
32.0" H
Height (bottom to top)
- 32.0" H
Width (side to side)
19.75" W
Width (side to side)
- 19.75" W
Depth (front to back)
24.38" D
Depth (front to back)
- 24.38" D
Freezer Capacity Ranges
< 5 cu.ft.
Freezer Capacity Ranges
- < 5 cu.ft.
Storage
Number of Shelves
3
Number of Shelves
- 3
Features & Function
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Product
Wifi Enabled
No
Wifi Enabled
- No
Refrigerator Total Capacity
2.47
Refrigerator Total Capacity
- 2.47
Freezer Type
Chest
Freezer Type
- Chest
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Freezer Cubic Feet Capacity
2.47
Freezer Cubic Feet Capacity
- 2.47
Overview
Height of Cabinet
31.75" (81 cm)
Height of Cabinet
- 31.75" (81 cm)
Height to Hinge Cap
32.0" (81 cm)
Height to Hinge Cap
- 32.0" (81 cm)
Width
19.75" (50 cm)
Width
- 19.75" (50 cm)
Width with Door Open
20.25" (51 cm)
Width with Door Open
- 20.25" (51 cm)
Depth
22.5" (57 cm)
Depth
- 22.5" (57 cm)
Depth with Handle
25.0" (64 cm)
Depth with Handle
- 25.0" (64 cm)
Depth with door at 90(degree)
40.25" (102 cm)
Depth with door at 90(degree)
- 40.25" (102 cm)
Capacity
2.47 cu.ft. (70 L)
Capacity
- 2.47 cu.ft. (70 L)
Defrost Type
Manual
Defrost Type
- Manual
Door
Stainless Steel
Door
- Stainless Steel
Cabinet
White
Cabinet
- White
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
1.1
Amps
- 1.1
Voltage/Frequency
115 V AC/60 Hz
Voltage/Frequency
- 115 V AC/60 Hz
Weight
75.0 lbs. (34 kg)
Weight
- 75.0 lbs. (34 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
Compressor Warranty
5 Years
Compressor Warranty
- 5 Years
UPC
761101077734
UPC
- 761101077734
Freezer
Door Swing
RHD
Door Swing
- RHD
Reversible
Yes
Reversible
- Yes
Interior Height
23.75" (60 cm)
Interior Height
- 23.75" (60 cm)
Interior Width
14.5" (37 cm)
Interior Width
- 14.5" (37 cm)
Interior Depth
17.0" (43 cm)
Interior Depth
- 17.0" (43 cm)
Shelf Type
Drawers
Shelf Type
- Drawers
Shelf Qty
3
Shelf Qty
- 3
Thermostat Type
Digital
Thermostat Type
- Digital
Fan Type
Exterior
Fan Type
- Exterior
Refrigerant Type
R600a
Refrigerant Type
- R600a
Refrigerant Amount
1.34 oz.
Refrigerant Amount
- 1.34 oz.
High Side PSI
180.0
High Side PSI
- 180.0
Low Side PSI
80.0
Low Side PSI
- 80.0
Level Legs
2
Level Legs
- 2
Interior Drawers
Yes
Interior Drawers
- Yes
Drawers Qty
3
Drawers Qty
- 3
Compressor Step Height
5.75" (15 cm)
Compressor Step Height
- 5.75" (15 cm)
Compressor Step Width
14.5" (37 cm)
Compressor Step Width
- 14.5" (37 cm)
Compressor Step Depth
6.0" (15 cm)
Compressor Step Depth
- 6.0" (15 cm)
Temperature Range
-25° to -15°C
Temperature Range
- -25° to -15°C
Features
Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness, Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened, Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials, Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space, User-set high/low temperature alarms provide added security if temperature goes beyond setpoint, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Located towards the top of the door for easy access and to provide added security of unit (2 keys included), 32" height allows easy installation under lower ADA compliant counters, Unit comes with a factory installed probe hole for users to connect their own monitoring equipment, Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Naturally antimicrobial, the towel bar handle made from pure copper helps to protect against microbes for added safety and cleanliness
- Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
- User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- 32" height allows easy installation under lower ADA compliant counters
- Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Freezers 20" Wide Built-In Vaccine All-Freezer, Ada Compliant, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Freezers collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Freezers, Upright Freezer, Chest Freezer, Refrigerator Freezer, Refridgerator and Freezer, Side by Side Refrigerator Freezer, Side x Side Refrigerator Freezer, Bottom Refrigerator Freezer, Compact Freezer, Upright Freezer, Frozen Food Storage, Food Storage, Appliances, Kitchen Appliances, Fridge Freezer, Deep Freezers, Ice Box, Icebox, Freezer Unit, Chest Freezers, Cold Storage
Reference #: ADA305AFSSTBC
