20" Wide Built-In Vaccine All-Freezer, Ada Compliant

SKU: ADA305AF
Free Delivery Appliance
Simon's Price: $1,067
12 Interest Free Monthly Payments Of $89
Add Appliance Recycling
Click to show options
add
Price with selected options: $1,266.99

Where Can I See This Product in Store?

This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

First Name is required
Last Name is required
Email Address is required
Message is required

Description

Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA compliant counters, with advanced features for the safe storage of select vaccines, pharmaceuticals, and other materials with strict storage conditions. The ADA305AF is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a top-mounted lock for added security and convenient access. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital grade cord with a green dot plug for added safety in high traffic areas. Powerful magnetic gaskets ensure a tight seal. Inside, the ADA305AF can reach temperatures as low as -25°C. Static manual defrost operation provides efficient cooling inside the 2.47 cu.ft. interior. Three removable pull-out drawers on fixed wire shelving offer convenient storage, with plastic fronts that help to protect contents from warmer ambient temperatures when the door is opened. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door. The user-set high and low temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar beyond one minute for added peace-of-mind. These alarms can be disabled depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment. Sized at just under 20" wide, the ADA305AF makes an ideal choice for various facilities in need of a dependable freezer capable of -20 C/-25 C operation. For a complete set, pair this unit with the matching ADA404REF all-refrigerator. NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
  • Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
  • Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
  • User-reversible door swing for added flexibility to best accommodate your setting
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • 32" height allows easy installation under lower ADA compliant counters

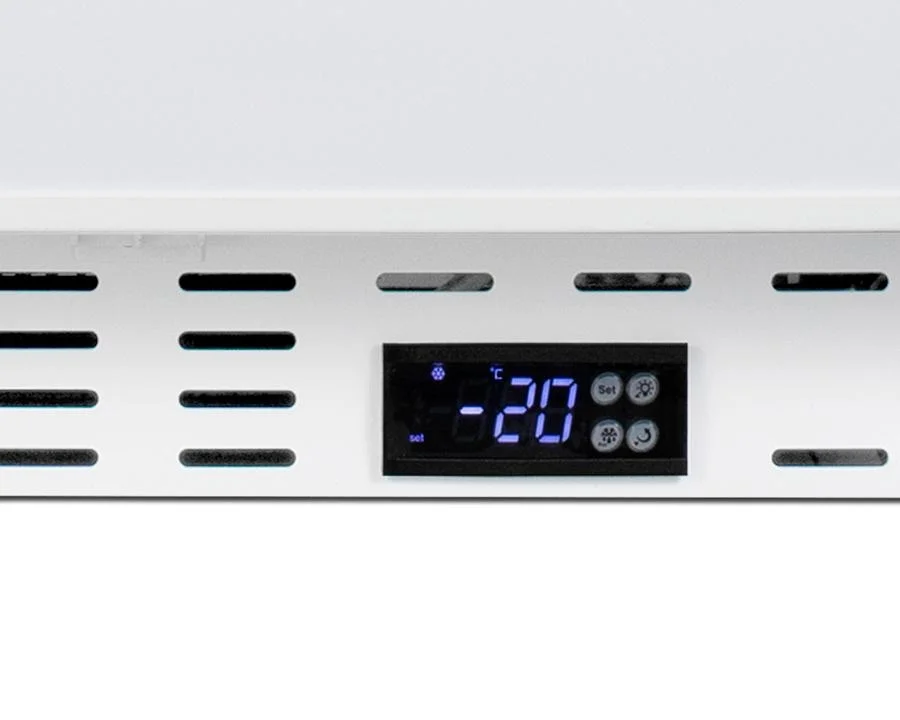

  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
  • Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information

Rebates

view available rebates
20" Wide Built-In Vaccine All-Freezer, Ada Compliant
20" Wide Built-In Vaccine All-Freezer, Ada Compliant
Freezers Collection
Simon's Price: $1,067
12 Interest Free Monthly Payments Of $89

Specifications

Specifications

remove

Dimensions

Height (bottom to top) 32.0" H
Height (bottom to top)
  • 32.0" H
Width (side to side) 19.75" W
Width (side to side)
  • 19.75" W
Depth (front to back) 24.38" D
Depth (front to back)
  • 24.38" D
Freezer Capacity Ranges < 5 cu.ft.
Freezer Capacity Ranges
  • < 5 cu.ft.

Storage

Number of Shelves 3
Number of Shelves
  • 3

Features & Function

Oven Features ADA Compliant
Oven Features
  • ADA Compliant

Product

Wifi Enabled No
Wifi Enabled
  • No
Refrigerator Total Capacity 2.47
Refrigerator Total Capacity
  • 2.47
Freezer Type Chest
Freezer Type
  • Chest
ADA Compliant Yes
ADA Compliant
  • Yes
Energy Star Compliant No
Energy Star Compliant
  • No
Freezer Cubic Feet Capacity 2.47
Freezer Cubic Feet Capacity
  • 2.47

Overview

Nominal Height 32.0" (81 cm)
Nominal Height
  • 32.0" (81 cm)
Height of Cabinet 31.75" (81 cm)
Height of Cabinet
  • 31.75" (81 cm)
Height to Hinge Cap 32.0" (81 cm)
Height to Hinge Cap
  • 32.0" (81 cm)
Nominal Width 20.0" (51 cm)
Nominal Width
  • 20.0" (51 cm)
Width 19.75" (50 cm)
Width
  • 19.75" (50 cm)
Width with Door Open 20.25" (51 cm)
Width with Door Open
  • 20.25" (51 cm)
Nominal Depth 23.0" (58 cm)
Nominal Depth
  • 23.0" (58 cm)
Depth 22.5" (57 cm)
Depth
  • 22.5" (57 cm)
Depth with Handle 24.38" (62 cm)
Depth with Handle
  • 24.38" (62 cm)
Depth with door at 90° 40.25" (102 cm)
Depth with door at 90°
  • 40.25" (102 cm)
Capacity 2.47 cu.ft. (70 L)
Capacity
  • 2.47 cu.ft. (70 L)
Defrost Type Manual
Defrost Type
  • Manual
Door White
Door
  • White
Cabinet White
Cabinet
  • White
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Amps 1.1
Amps
  • 1.1
Voltage/Frequency 115 V AC/60 Hz
Voltage/Frequency
  • 115 V AC/60 Hz
Weight 65.0 lbs. (29 kg)
Weight
  • 65.0 lbs. (29 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
Compressor Warranty 5 Years
Compressor Warranty
  • 5 Years
UPC 761101063065
UPC
  • 761101063065

Freezer

Door Swing RHD
Door Swing
  • RHD
Reversible Yes
Reversible
  • Yes
Interior Height 23.75" (60 cm)
Interior Height
  • 23.75" (60 cm)
Interior Width 14.5" (37 cm)
Interior Width
  • 14.5" (37 cm)
Interior Depth 17.0" (43 cm)
Interior Depth
  • 17.0" (43 cm)
Shelf Type Drawers
Shelf Type
  • Drawers
Shelf Qty 3
Shelf Qty
  • 3
Thermostat Type Digital
Thermostat Type
  • Digital
Fan Type Exterior
Fan Type
  • Exterior
Refrigerant Type R600a
Refrigerant Type
  • R600a
Refrigerant Amount 1.34 oz.
Refrigerant Amount
  • 1.34 oz.
High Side PSI 180.0
High Side PSI
  • 180.0
Low Side PSI 80.0
Low Side PSI
  • 80.0
Level Legs 2
Level Legs
  • 2
Interior Drawers Yes
Interior Drawers
  • Yes
Drawers Qty 3
Drawers Qty
  • 3
Compressor Step Height 5.75" (15 cm)
Compressor Step Height
  • 5.75" (15 cm)
Compressor Step Width 14.5" (37 cm)
Compressor Step Width
  • 14.5" (37 cm)
Compressor Step Depth 6.0" (15 cm)
Compressor Step Depth
  • 6.0" (15 cm)
Temperature Range -25° to -15°C
Temperature Range
  • -25° to -15°C
Sound Level 33 dB
Sound Level
  • 33 dB

Features

Located towards the top of the door for easy access and to provide added security of unit (2 keys included), Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space, Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials, User-reversible door swing for added flexibility to best accommodate your setting, User-set high/low temperature alarms provide added security if temperature goes beyond setpoint, Front-breathing design lets you make the best use of space by installing your appliance under the counter, Unit comes with a factory installed probe hole for users to connect their own monitoring equipment, 32" height allows easy installation under lower ADA compliant counters, Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius, Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
  • Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
  • Improved insulation for an efficient performance; NOTE: due to the oversized design, the door does not open in its own radius. If installing this freezer against a wall, please see our drawings to ensure adequate space
  • Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
  • User-reversible door swing for added flexibility to best accommodate your setting
  • User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
  • Front-breathing design lets you make the best use of space by installing your appliance under the counter
  • Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
  • 32" height allows easy installation under lower ADA compliant counters
  • Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
  • Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
The Freezers 20" Wide Built-In Vaccine All-Freezer, Ada Compliant, made by Summit, is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary. Contact us for the most current availability on this product.
