Simon's Price:
$1,465
12 Interest Free Monthly Payments Of
$124
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
24.0" W
×
24.0" D
×
34.5" H
Width (side to side) | 24.0 |
Depth (front to back) | 24.0 |
Height (bottom to top) | 34.5 |
Disclaimer
Description

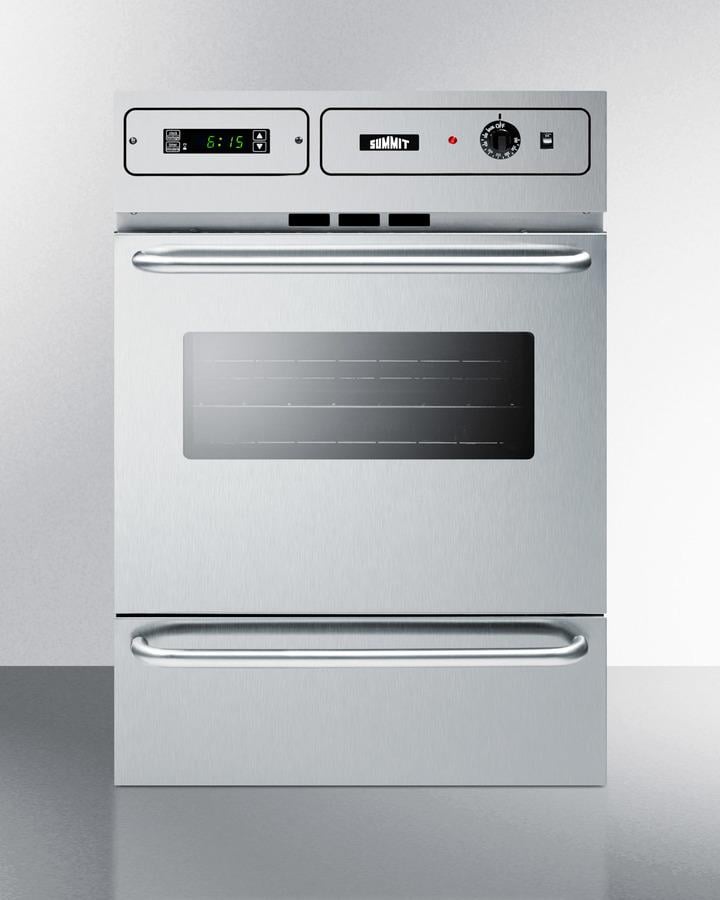

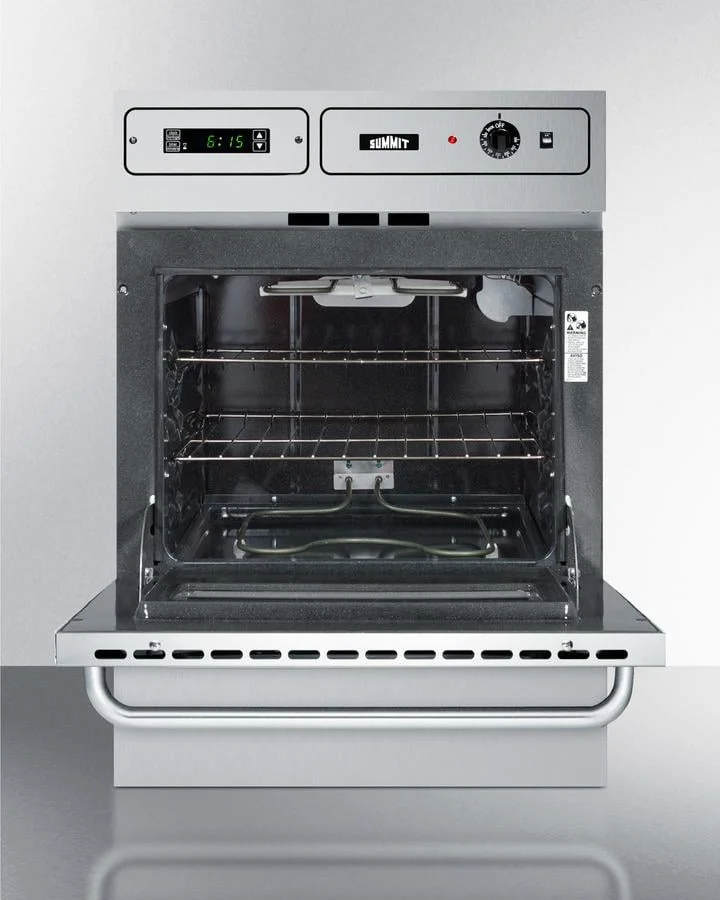

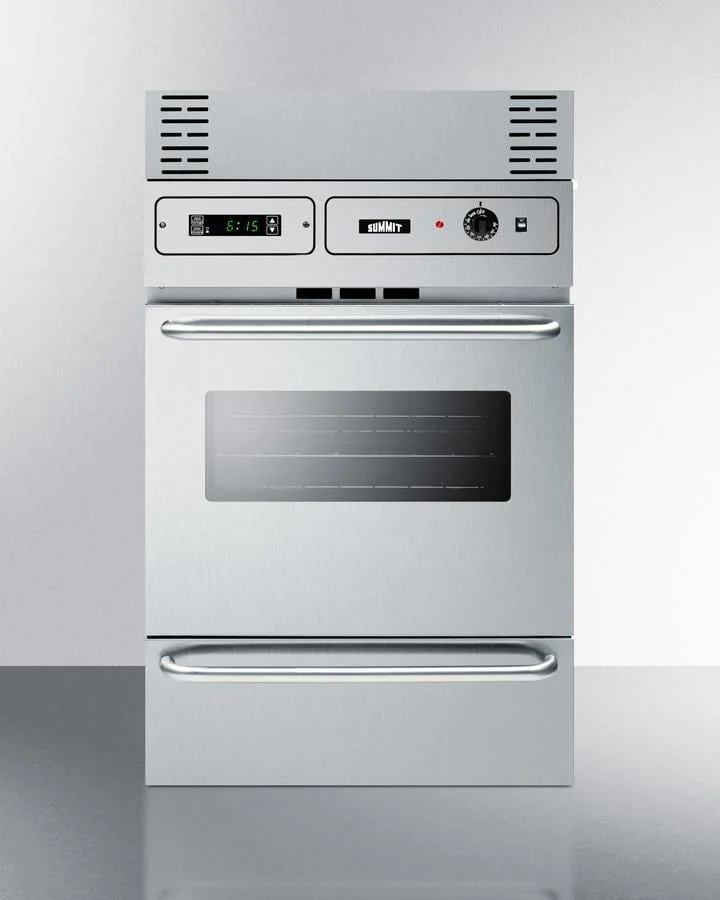

moreSummit's classic series of 24" wide wall ovens are made in the USA and specially sized to fit common 34 1/8" H x 22 3/8" W cutouts. The TEM788BKW is a single 220V electric wall oven with a drop-down storage compartment. The exterior doors and manifold come in a brushed stainless steel finish, with full-width curved towel bar handles to complete the look. The oven door includes a window and exterior light switch to illuminate the interior, making it easy to monitor your cooking without opening the door. A digital clock with a timer function offers added convenience and dial controls ensure simple, intuitive cooking. This unit is designed for professional installation and is compatible with a standard 40 amp 3 or 4-wire range cord (not included). Inside, the wall oven features solid porcelain construction for lasting durability to hold up to everyday use. Two adjustable racks with safety brakes allow you to accommodate a variety of sizes when baking. The oven can be used to bake or broil. We include a two-piece broiler tray with grease well. Summit's domestically manufactured wall ovens have an industry exclusive height of 34 1/2". These units fit many discontinued cutouts such as Caloric, Slattery, and older makes, including Magic Chef. To fit other cutouts up to 39" high, add the TKW700SS trim kit accessory.
- Doors and control panel are constructed from brushed stainless steel for modern luxury built to last
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers
- Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling
- Allows for easier cleaning as needed
- 2.92 cu.ft. interior to fit large dishes
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Designed and constructed domestically
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Rebates
view available rebates
Specifications
Specifications
Product
Warm Drawer
No
Warm Drawer
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Oven Style
Single Oven
Oven Style
- Single Oven
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Self Clean
No
Self Clean
- No
Convection
No
Convection
- No
Proof Mode
No
Proof Mode
- No
Hidden Bake Element
No
Hidden Bake Element
- No
ADA Compliant
No
ADA Compliant
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
34.5" H
Height (bottom to top)
- 34.5" H
Width (side to side)
24.0" W
Width (side to side)
- 24.0" W
Depth (front to back)
24.0" D
Depth (front to back)
- 24.0" D
Storage
Has Storage Drawer
Yes
Has Storage Drawer
- Yes
Features & Function
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Overview
Height of Cabinet
34.5" (88 cm)
Height of Cabinet
- 34.5" (88 cm)
Width
24.0" (61 cm)
Width
- 24.0" (61 cm)
Depth
24.0" (61 cm)
Depth
- 24.0" (61 cm)
Depth with Handle
25.38" (64 cm)
Depth with Handle
- 25.38" (64 cm)
Depth with door at 90(degree)
42.75" (109 cm)
Depth with door at 90(degree)
- 42.75" (109 cm)
Capacity
2.92 cu.ft. (83 L)
Capacity
- 2.92 cu.ft. (83 L)
Door
Stainless Steel
Door
- Stainless Steel
Cabinet
-
Cabinet
- -
US Electrical Safety
CSA
US Electrical Safety
- CSA
Amps
40.0
Amps
- 40.0
Voltage/Frequency
220 V AC/60 Hz
Voltage/Frequency
- 220 V AC/60 Hz
Weight
170.0 lbs. (77 kg)
Weight
- 170.0 lbs. (77 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101053035
UPC
- 761101053035
Electric Walloven
Controls
Dial
Controls
- Dial
Oven Light
Yes
Oven Light
- Yes
Cooking Timer
Yes
Cooking Timer
- Yes
Digital Clock
Yes
Digital Clock
- Yes
Cleaning Type
Manual
Cleaning Type
- Manual
Oven Rack Qty
2
Oven Rack Qty
- 2
Oven Window
Yes
Oven Window
- Yes
Interior Height
14.0" (36 cm)
Interior Height
- 14.0" (36 cm)
Interior Width
19.0" (48 cm)
Interior Width
- 19.0" (48 cm)
Interior Depth
18.0" (46 cm)
Interior Depth
- 18.0" (46 cm)
Cutout Height
34.13" (87 cm)
Cutout Height
- 34.13" (87 cm)
Cutout Width
22.38" (57 cm)
Cutout Width
- 22.38" (57 cm)
Cutout Depth
23.0" (58 cm)
Cutout Depth
- 23.0" (58 cm)
Features
Doors and control panel are constructed from brushed stainless steel for modern luxury built to last, Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes, Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers, Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling, Allows for easier cleaning as needed, 2.92 cu.ft. interior to fit large dishes, Curved handles in brushed stainless steel offer an easier grip in attractive style, Designed and constructed domestically, Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen, Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
- Doors and control panel are constructed from brushed stainless steel for modern luxury built to last
- Two wire racks with safety brakes included, with several glide positions to accommodate a variety of sizes
- Sized to fit 34 1/8" H x 22 3/8" W cabinet cutouts, a popular replacement size rarely offered by other manufacturers
- Upper heating element is located inside the oven so there is no need to transfer dishes to another compartment for broiling
- Allows for easier cleaning as needed
- 2.92 cu.ft. interior to fit large dishes
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Designed and constructed domestically
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Door includes a window and exterior on/off rocker light switch, making it easier to monitor your cooking without opening the door
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Electric Ranges 24" Wide Electric Wall Oven, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Oven, Kitchen Appliances, Double Oven, Single Oven, Gas Oven, Electric Oven, Built in Oven, Combination Oven, Range, Oven Range, Oven with Ranges, Oven with Stove Top, Convection Oven, Oven with Microwave, Stove Oven, Kitchen Range, Roaster, Stove
Reference #: TEM788BKW
