lessDimensions:
22.75" W
×
20.38" D
×
4.13" H
Width (side to side) | 22.75 |
Depth (front to back) | 20.38 |
Height (bottom to top) | 4.13 |
Disclaimer
Description

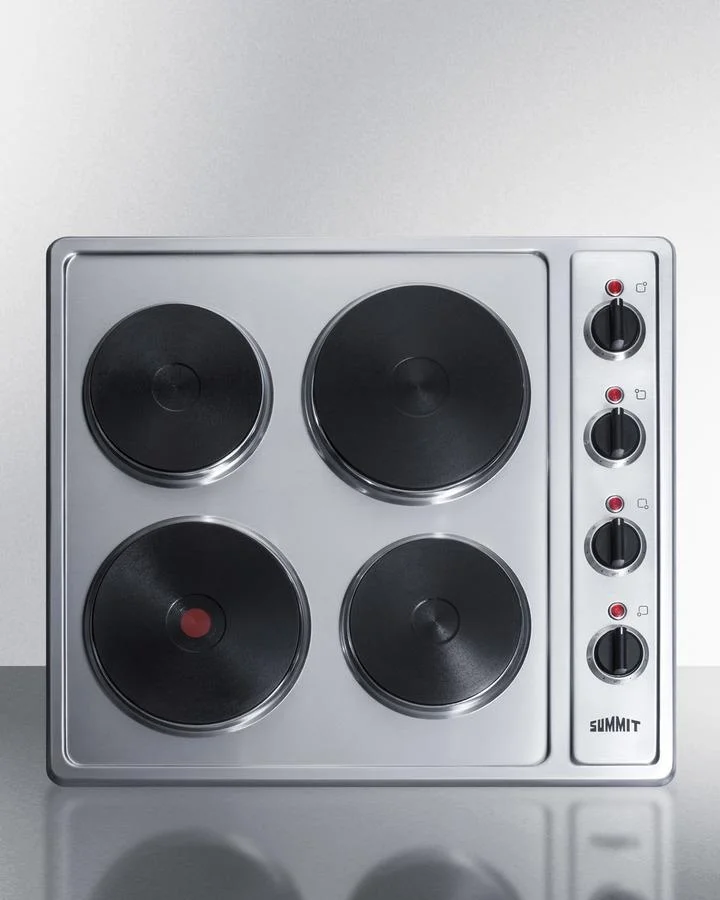

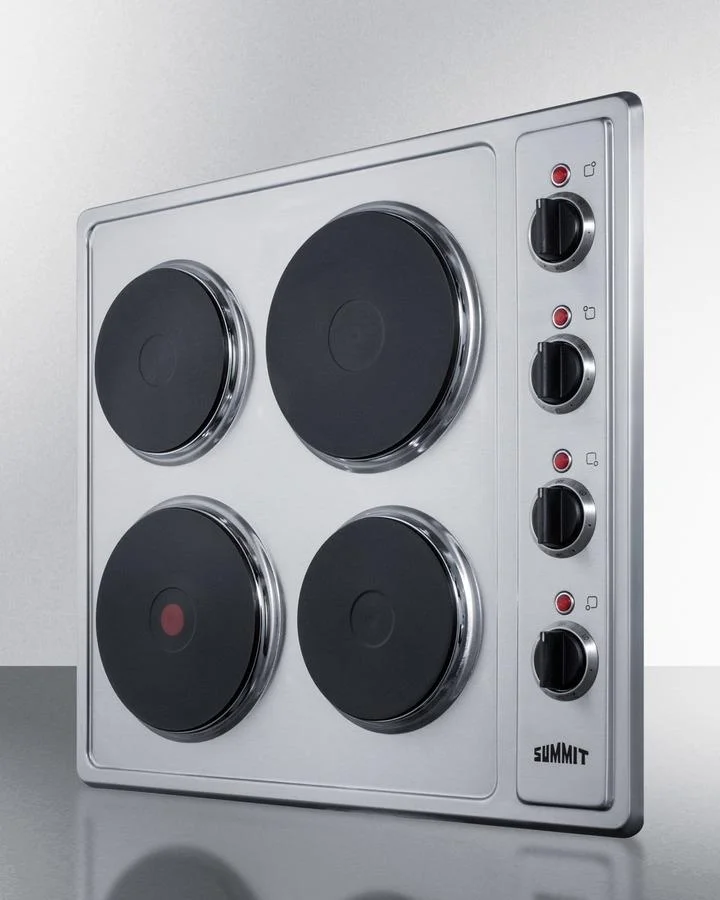

moreSummit's selection of electric cooktops offers the perfect fit for every application. Sized at 24" wide, the CSD4B24 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety. With its modern style and durable design, the CSD4B24 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 2-burner version, see the CSD2B230.
- Fully sealed cast iron elements offer easier cleanup than traditional coil elements
- Operating indicators light up to show which burner is in use
- Surface is made from stainless steel for an attractive and easy to clean look
- Fits counter cutout sizes that are 22" W x 19 3/4" D
- Professional installation required
- Solid metal elements hold up to heavy duty use
- 1000W elements accommodate most lighter cooking needs
- Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
- Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
- Knobs require a small amount of force to help prevent accidents
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Induction
No
Induction
- No
ADA Compliant
No
ADA Compliant
- No
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
4.13" H
Height (bottom to top)
- 4.13" H
Width (side to side)
22.75" W
Width (side to side)
- 22.75" W
Depth (front to back)
20.38" D
Depth (front to back)
- 20.38" D
Features & Function
Number of Burners
4
Number of Burners
- 4
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Overview
Height of Cabinet
4.13" (10 cm)
Height of Cabinet
- 4.13" (10 cm)
Width
22.75" (58 cm)
Width
- 22.75" (58 cm)
Depth
20.38" (52 cm)
Depth
- 20.38" (52 cm)
Cabinet
Stainless Steel
Cabinet
- Stainless Steel
US Electrical Safety
ETL
US Electrical Safety
- ETL
Canadian Electrical Safety
ETL-C
Canadian Electrical Safety
- ETL-C
Amps
23.0
Amps
- 23.0
Voltage/Frequency
230 V AC/60 Hz
Voltage/Frequency
- 230 V AC/60 Hz
Weight
14.0 lbs. (6 kg)
Weight
- 14.0 lbs. (6 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101056340
UPC
- 761101056340
Electric Cooktop
Heating Type
Radiant
Heating Type
- Radiant
Surface
Stainless Steel
Surface
- Stainless Steel
Element Type
Cast Iron
Element Type
- Cast Iron
Number of Elements
4
Number of Elements
- 4
Controls
Dial
Controls
- Dial
Countertop Cutout Height
5.0" (13 cm)
Countertop Cutout Height
- 5.0" (13 cm)
Countertop Cutout Width
22.0" (56 cm)
Countertop Cutout Width
- 22.0" (56 cm)
Countertop Cutout Depth
19.75" (50 cm)
Countertop Cutout Depth
- 19.75" (50 cm)
Power Source
230V
Power Source
- 230V
Element #1 Size
8.0" (20 cm)
Element #1 Size
- 8.0" (20 cm)
Element #1 Wattage
2000.0
Element #1 Wattage
- 2000.0
Element #2 Size
6.0" (15 cm)
Element #2 Size
- 6.0" (15 cm)
Element #2 Wattage
1000.0
Element #2 Wattage
- 1000.0
Element #3 Size
8.0" (20 cm)
Element #3 Size
- 8.0" (20 cm)
Element #3 Wattage
1500.0
Element #3 Wattage
- 1500.0
Element #4 Size
6.0" (15 cm)
Element #4 Size
- 6.0" (15 cm)
Element #4 Wattage
1000.0
Element #4 Wattage
- 1000.0
Power Cord Included
No
Power Cord Included
- No
Features
Fully sealed cast iron elements offer easier cleanup than traditional coil elements, Operating indicators light up to show which burner is in use, Surface is made from stainless steel for an attractive and easy to clean look, Fits counter cutout sizes that are 22" W x 19 3/4" D, Professional installation required, Solid metal elements hold up to heavy duty use, 1000W elements accommodate most lighter cooking needs, Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience, Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans, Knobs require a small amount of force to help prevent accidents
- Fully sealed cast iron elements offer easier cleanup than traditional coil elements
- Operating indicators light up to show which burner is in use
- Surface is made from stainless steel for an attractive and easy to clean look
- Fits counter cutout sizes that are 22" W x 19 3/4" D
- Professional installation required
- Solid metal elements hold up to heavy duty use
- 1000W elements accommodate most lighter cooking needs
- Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience
- Front left 2000W element and rear right 1500W element offer a wide diameter and higher cooking power for large pots and pans
- Knobs require a small amount of force to help prevent accidents
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Electric Ranges 24" Wide 230V 4-Burner Solid Disk Cooktop, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
