24" Wide 230V 4-Burner Radiant Cooktop

SKU: CR4B23T5B
Discontinued - Contact Us For A Replacement Model

Where Can I See This Product in Store?

This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

First Name is required
Last Name is required
Email Address is required
Message is required

Description

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces. The CR4B23T5B is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Unlike many other 24" wide cooktops, the CR4B23T5B includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements. With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T5B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.
  • Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
  • Select and adjust your heating levels at the touch of a button
  • Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean
  • Allows you to program either burner to heat at a specified level for up to 99 minutes
  • Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
  • Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
  • Front right and rear left burners are 5.5" in diameter to meet most cooking needs
  • 24" Wide 230V cooktop with digital controls and a smooth glass surface
  • Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

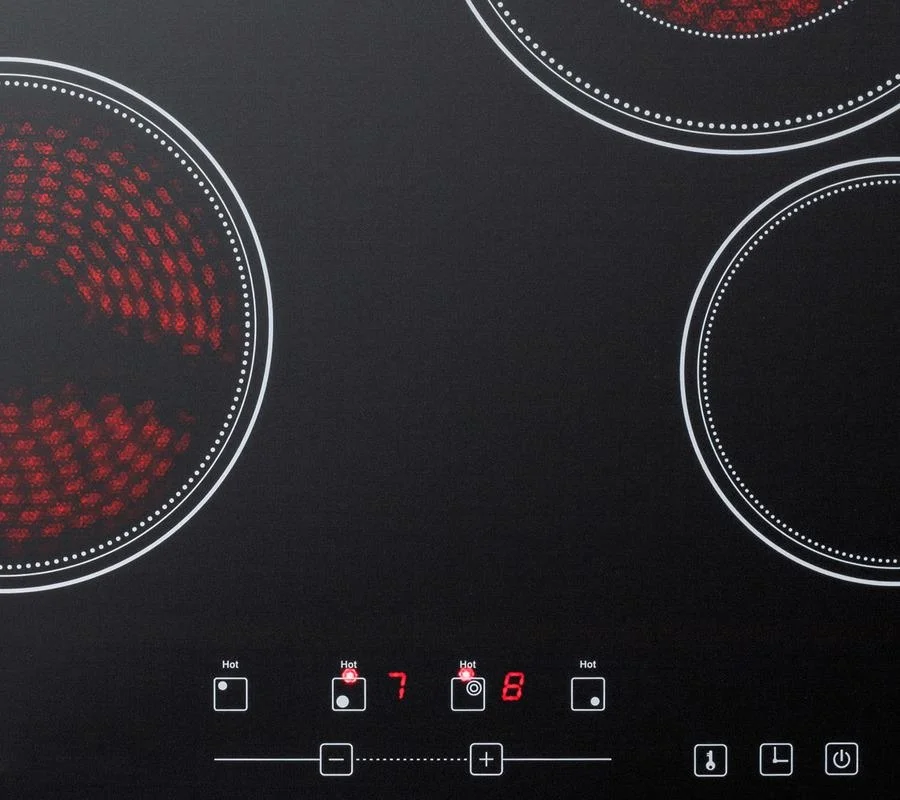

  • Easy operation with a digital control panel and digital display
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information
Support
Support
View PDF for more information

Rebates

view available rebates
24" Wide 230V 4-Burner Radiant Cooktop
24" Wide 230V 4-Burner Radiant Cooktop
Electric Ranges Collection

Specifications

Specifications

remove

Product

Sabbath Mode No
Sabbath Mode
  • No
Wifi Enabled No
Wifi Enabled
  • No
Appliance Fuel Type Electric
Appliance Fuel Type
  • Electric
Induction No
Induction
  • No
ADA Compliant Yes
ADA Compliant
  • Yes
Energy Star Compliant No
Energy Star Compliant
  • No

Dimensions

Height (bottom to top) 2.0" H
Height (bottom to top)
  • 2.0" H
Width (side to side) 23.25" W
Width (side to side)
  • 23.25" W
Depth (front to back) 20.5" D
Depth (front to back)
  • 20.5" D

Features & Function

Number of Burners 4
Number of Burners
  • 4
Oven Features ADA Compliant
Oven Features
  • ADA Compliant
Maximum Spin Speed (RPM) -1.0
Maximum Spin Speed (RPM)
  • -1.0

Overview

Nominal Height 2.0" (5 cm)
Nominal Height
  • 2.0" (5 cm)
Height of Cabinet 2.0" (5 cm)
Height of Cabinet
  • 2.0" (5 cm)
Nominal Width 24.0" (61 cm)
Nominal Width
  • 24.0" (61 cm)
Width 23.25" (59 cm)
Width
  • 23.25" (59 cm)
Nominal Depth 21.0" (53 cm)
Nominal Depth
  • 21.0" (53 cm)
Depth 20.5" (52 cm)
Depth
  • 20.5" (52 cm)
Cabinet Black
Cabinet
  • Black
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Amps 30.0
Amps
  • 30.0
Voltage/Frequency 230 V AC/60 Hz
Voltage/Frequency
  • 230 V AC/60 Hz
Weight 20.0 lbs. (9 kg)
Weight
  • 20.0 lbs. (9 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
UPC 761101053257
UPC
  • 761101053257

Electric Cooktop

Heating Type Radiant
Heating Type
  • Radiant
Surface Glass
Surface
  • Glass
Element Type Glasstop
Element Type
  • Glasstop
Number of Elements 4
Number of Elements
  • 4
Controls Digital
Controls
  • Digital
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Height
  • 3.2" (8 cm)
Countertop Cutout Width 22.0" (56 cm)
Countertop Cutout Width
  • 22.0" (56 cm)
Countertop Cutout Depth 19.5" (50 cm)
Countertop Cutout Depth
  • 19.5" (50 cm)
Element #1 Size 5.5" (14 cm)
Element #1 Size
  • 5.5" (14 cm)
Element #1 Wattage 1200.0
Element #1 Wattage
  • 1200.0
Element #2 Size 8.1" (21 cm)
Element #2 Size
  • 8.1" (21 cm)
Element #2 Wattage 2200.0
Element #2 Wattage
  • 2200.0
Element #3 Size 5.5" (14 cm)
Element #3 Size
  • 5.5" (14 cm)
Element #3 Wattage 1200.0
Element #3 Wattage
  • 1200.0
Element #4 Size 7.0" (18 cm)
Element #4 Size
  • 7.0" (18 cm)
Element #4 Wattage 1800.0
Element #4 Wattage
  • 1800.0
Power Cord Included No
Power Cord Included
  • No

Features

Burner located on the front left corner is 7" in diameter to handle larger cooking vessels, Select and adjust your heating levels at the touch of a button, Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean, Allows you to program either burner to heat at a specified level for up to 99 minutes, Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch, Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed, Front right and rear left burners are 5.5" in diameter to meet most cooking needs, 24" Wide 230V cooktop with digital controls and a smooth glass surface, Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware, Easy operation with a digital control panel and digital display
  • Burner located on the front left corner is 7" in diameter to handle larger cooking vessels
  • Select and adjust your heating levels at the touch of a button
  • Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean
  • Allows you to program either burner to heat at a specified level for up to 99 minutes
  • Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch
  • Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed
  • Front right and rear left burners are 5.5" in diameter to meet most cooking needs
  • 24" Wide 230V cooktop with digital controls and a smooth glass surface
  • Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware
  • Easy operation with a digital control panel and digital display
