27" Wide 230V 5-Burner Radiant Cooktop

Name: Electric Ranges Cooktops (Electric)
Brand: Summit
Price: 1292.0 USD
Availability: OnlineOnly

Electric Ranges Collection by Summit

SKU: CR5B274W

Be the first to write a review

Simon's Price: $1,292

12 Interest Free Monthly Payments Of $108

Price with selected options:

Qty:

Items in Cart

( products)

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Ask a Question

less

First Name *

First Name is required

Last Name *

Last Name is required

Email Address *

Email Address is required

How can we help you? *

Message is required

Sign-up for email offers and promotions

Important Field Do you agree to the terms of service? (*Required)

Really Important Field

Dimensions:

27.0" W × 20.5" D × 3.13" H

remove add

Width (side to side)	27.0
Depth (front to back)	20.5
Height (bottom to top)	3.13

see more specs

Disclaimer

remove add

Description

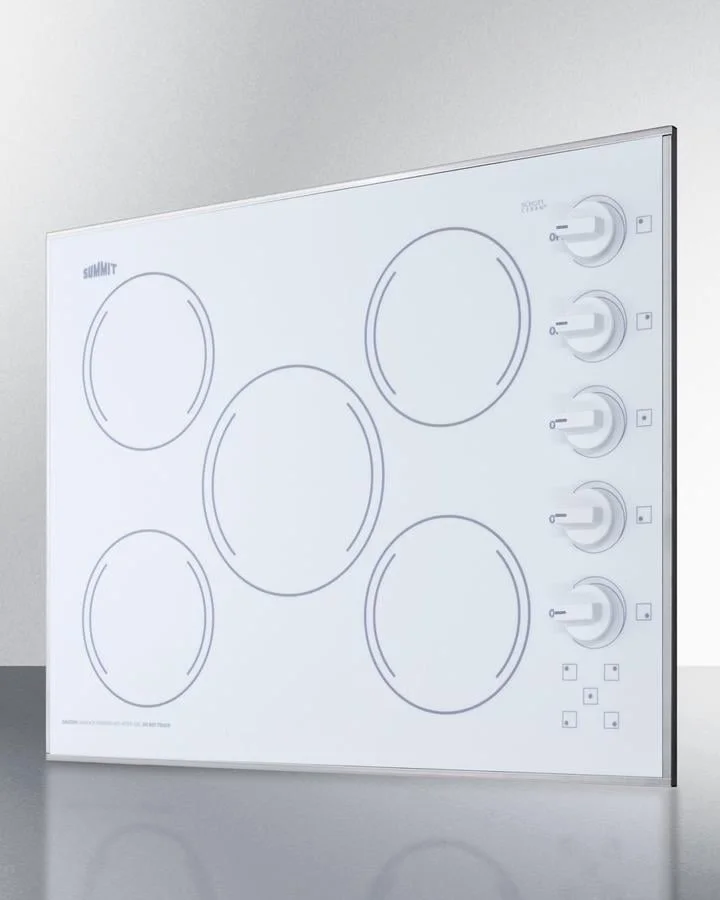

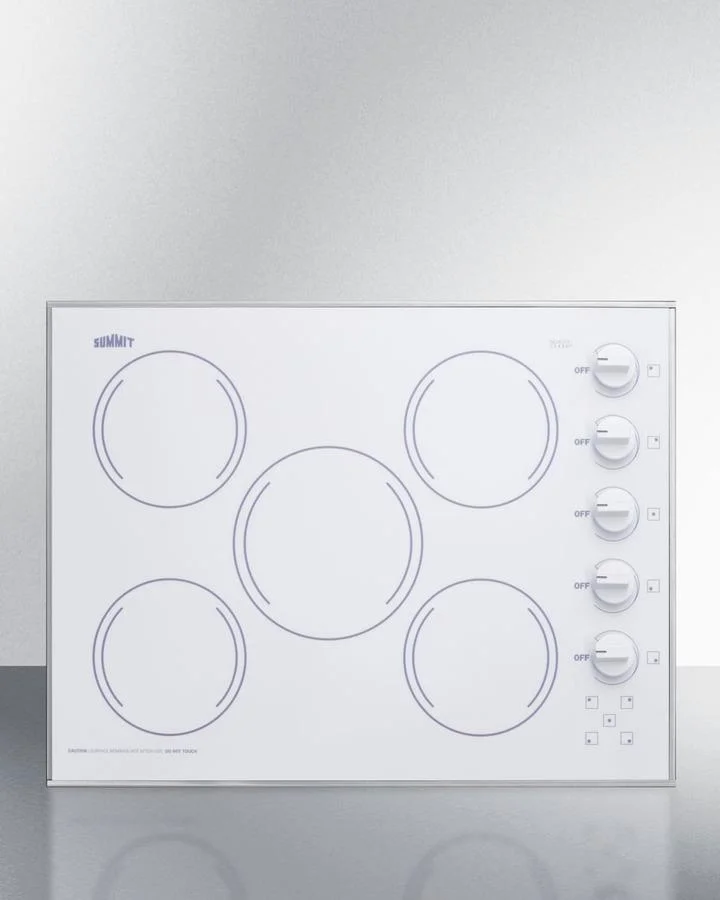

SUMMIT introduces a new series of smooth-top electric cooktops sized for unique kitchen counter spaces, all made in the USA with the industry's best elements. The CR5B274W is a 230V 6600W cooktop, with all burner elements made by E.G.O in Germany. This unit includes one large 8" 1800W element located in the center to accommodate large cooking vessels. Four standard 1200W 6 1/2" burners meet most heating needs. Push-to-turn knobs offer added safety, with an attractive matte white finish to complete the look. Each burner includes an indicator light. The smooth surface is made from ceramic Schott glass in a classic white finish, offering easier cleanup than traditional coil elements. The unit is finished with a sleek trim in 304 grade stainless steel for added durability. Sized with an exterior width of 27" and a conveniently shallow 20 1/2" depth, the CR5B274W can fit in cutouts 25 1/4" W x 18 3/4" deep. Designed and manufactured in the USA, the CR5B274W is the perfect way to finish any small kitchen space. For this unit in a black glass finish, see the CR5B273B.

Four 6.5" 1200W burners meet most heating needs
Stainless steel border adds an extra touch of style
Smooth ceramic glass cooking surface in a classic white finish
Requires professional hardwired installation to 230V power supply
Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
Considered by many to be the industry's best cooking technology
Designed to fit 25.25" W x 18.75" D cutouts

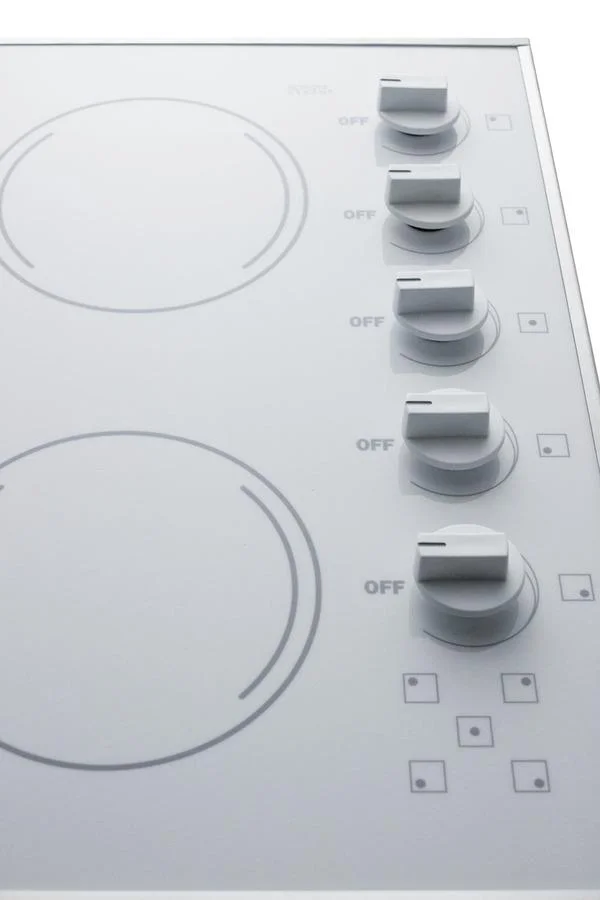

Controls require a gentle push to help prevent cooking accidents
Each burner includes an indicator light to show when the unit is on

Brochure W/ Drawings

View PDF for more information

Use & Care

View PDF for more information

Support

View PDF for more information

Rebates

view available rebates

27" Wide 230V 5-Burner Radiant Cooktop

Electric Ranges Collection

Simon's Price: $1,292

12 Interest Free Monthly Payments Of $108

Items in Cart ()

Specifications

Product

Sabbath Mode No

Sabbath Mode

Wifi Enabled No

Wifi Enabled

Appliance Fuel Type Electric

Appliance Fuel Type

Electric

Induction No

Induction

ADA Compliant No

ADA Compliant

Energy Star Compliant No

Energy Star Compliant

Dimensions

Height (bottom to top) 3.13" H

Height (bottom to top)

3.13" H

Width (side to side) 27.0" W

Width (side to side)

27.0" W

Depth (front to back) 20.5" D

Depth (front to back)

20.5" D

Features & Function

Number of Burners 5

Number of Burners

Maximum Spin Speed (RPM) -1.0

Maximum Spin Speed (RPM)

-1.0

Overview

Nominal Height 3.13" (8 cm)

Nominal Height

3.13" (8 cm)

Height of Cabinet 3.13" (8 cm)

Height of Cabinet

3.13" (8 cm)

Nominal Width 27.0" (69 cm)

Nominal Width

27.0" (69 cm)

Width 27.0" (69 cm)

Width

27.0" (69 cm)

Nominal Depth 21.0" (53 cm)

Nominal Depth

21.0" (53 cm)

Depth 20.5" (52 cm)

Depth

20.5" (52 cm)

Cabinet White

Cabinet

White

US Electrical Safety ETL

US Electrical Safety

Canadian Electrical Safety ETL-C

Canadian Electrical Safety

ETL-C

Amps 25.0

Amps

25.0

Voltage/Frequency 230 V AC/60 Hz

Voltage/Frequency

230 V AC/60 Hz

Weight 35.0 lbs. (16 kg)

Weight

35.0 lbs. (16 kg)

Parts & Labor Warranty 1 Year

Parts & Labor Warranty

1 Year

UPC 761101060330

UPC

761101060330

Electric Cooktop

Heating Type Radiant

Heating Type

Radiant

Surface Glass

Surface

Glass

Element Type Glasstop

Element Type

Glasstop

Number of Elements 5

Number of Elements

Controls Dial

Controls

Dial

Countertop Cutout Width 25.25" (64 cm)

Countertop Cutout Width

25.25" (64 cm)

Countertop Cutout Depth 18.75" (48 cm)

Countertop Cutout Depth

18.75" (48 cm)

Element #1 Size 8.0" (20 cm)

Element #1 Size

8.0" (20 cm)

Element #1 Wattage 1800.0

Element #1 Wattage

1800.0

Element #2 Size 6.5" (17 cm)

Element #2 Size

6.5" (17 cm)

Element #2 Wattage 1200.0

Element #2 Wattage

1200.0

Element #3 Size 6.5" (17 cm)

Element #3 Size

6.5" (17 cm)

Element #3 Wattage 1200.0

Element #3 Wattage

1200.0

Element #4 Size 6.5" (17 cm)

Element #4 Size

6.5" (17 cm)

Element #4 Wattage 1200.0

Element #4 Wattage

1200.0

Element #5 Size 6.5" (17 cm)

Element #5 Size

6.5" (17 cm)

Element #5 Wattage 1200.0

Element #5 Wattage

1200.0

Power Cord Included No

Power Cord Included

Features

Four 6.5" 1200W burners meet most heating needs, Stainless steel border adds an extra touch of style, Smooth ceramic glass cooking surface in a classic white finish, Requires professional hardwired installation to 230V power supply, Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels, Considered by many to be the industry's best cooking technology, Designed to fit 25.25" W x 18.75" D cutouts, Controls require a gentle push to help prevent cooking accidents, Each burner includes an indicator light to show when the unit is on

Four 6.5" 1200W burners meet most heating needs
Stainless steel border adds an extra touch of style
Smooth ceramic glass cooking surface in a classic white finish
Requires professional hardwired installation to 230V power supply
Center burner features an 8" diameter for 1800W of cooking power, ideal for larger cooking vessels
Considered by many to be the industry's best cooking technology
Designed to fit 25.25" W x 18.75" D cutouts
Controls require a gentle push to help prevent cooking accidents
Each burner includes an indicator light to show when the unit is on
