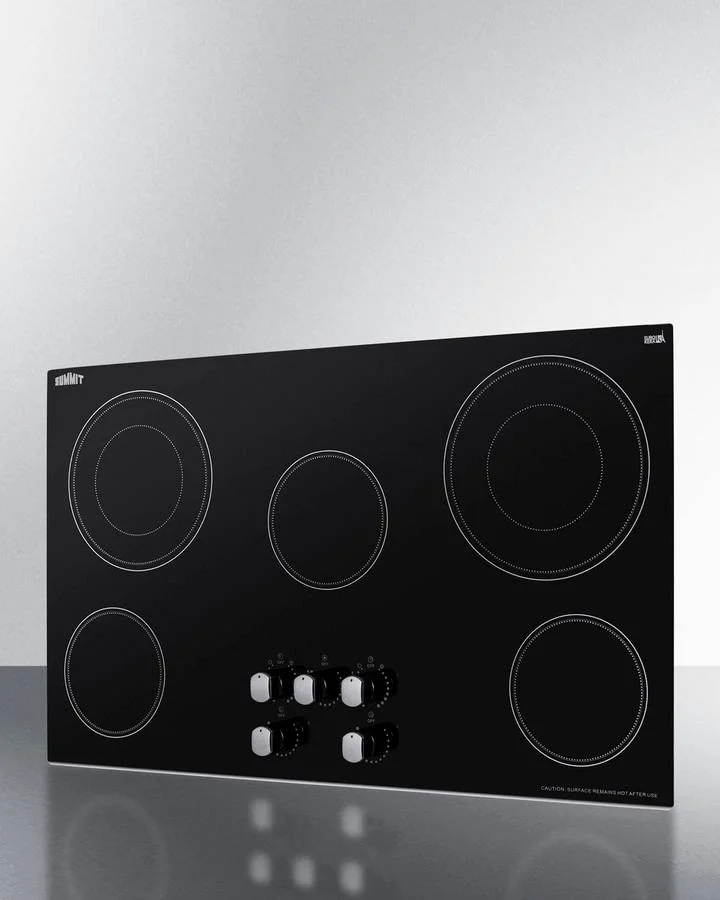

36" Wide 208-240V 5-Burner Radiant Cooktop

SKU: CR5B36MB
Simon's Price: $977
12 Interest Free Monthly Payments Of $82
Add Appliance Recycling
Click to show options
add
Price with selected options: $1,176.99

Where Can I See This Product in Store?

This product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.

Ask a Question

First Name is required
Last Name is required
Email Address is required
Message is required

Description

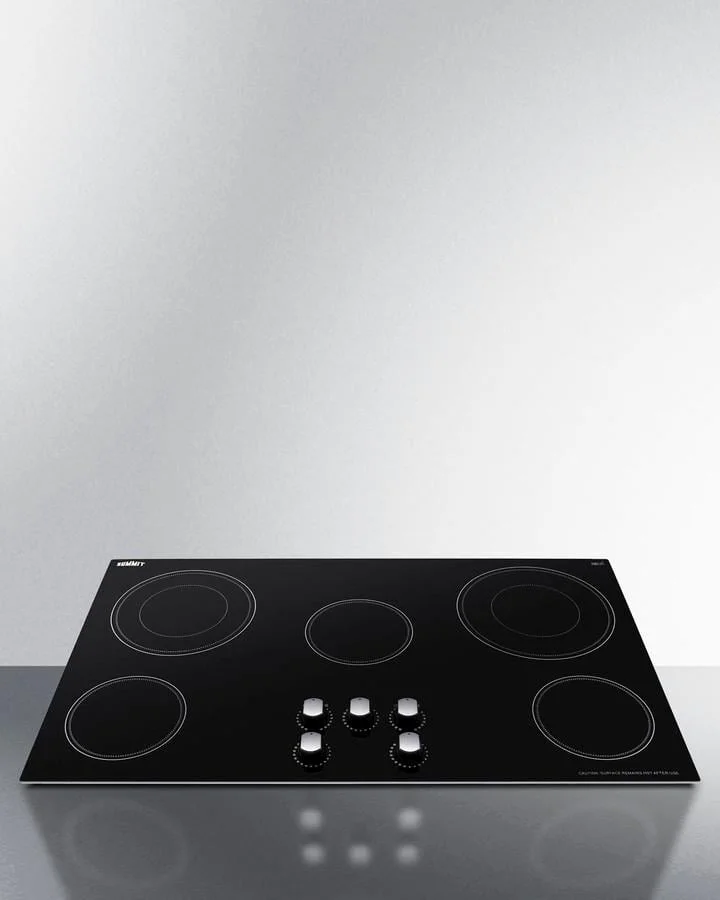

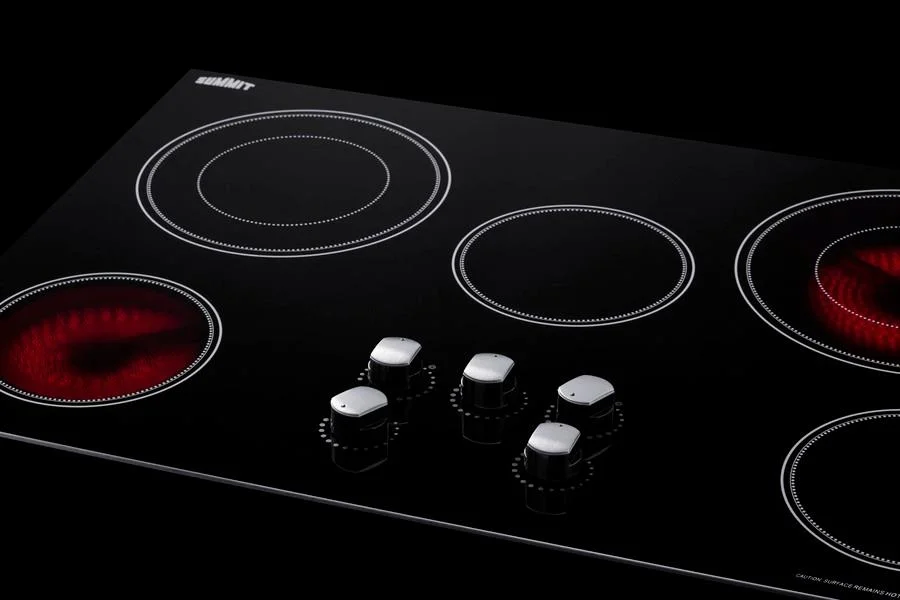

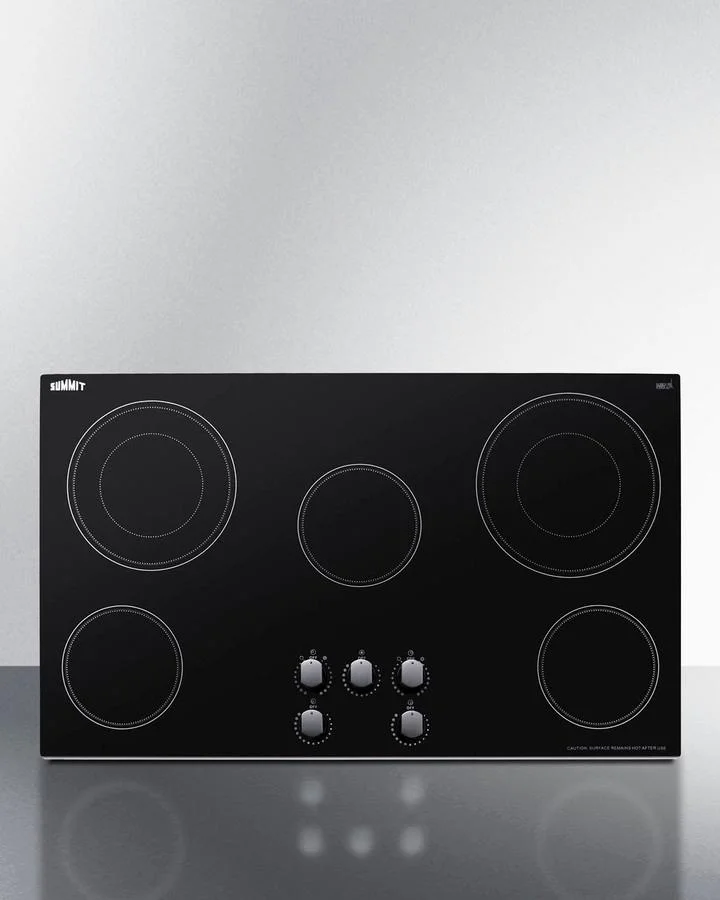

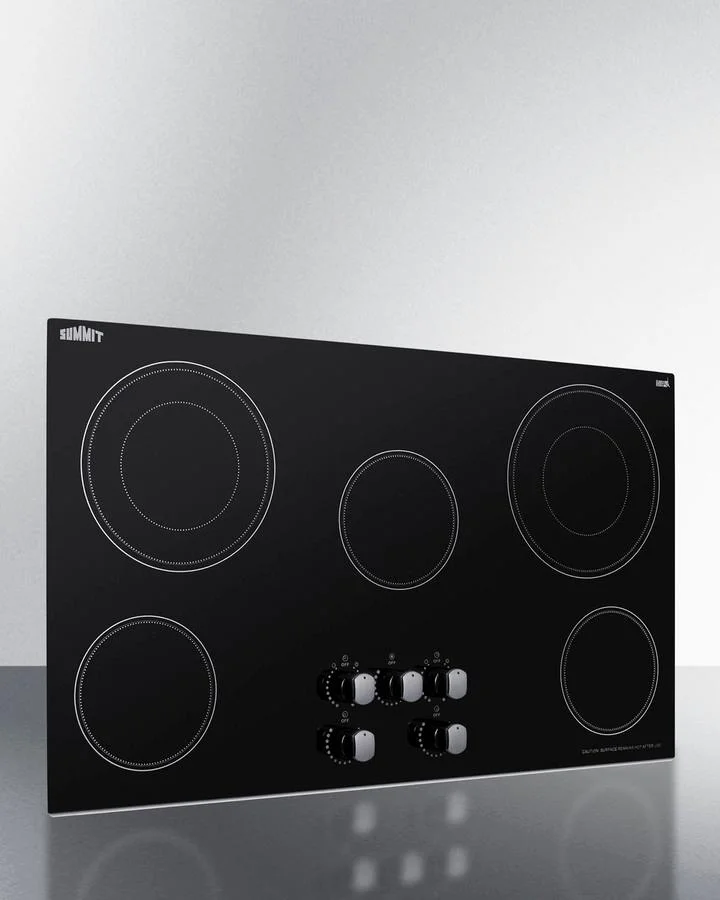

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters. The CR5B36MB is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional. Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking. The knob controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch. With its attractive design and smartly designed burner configuration, the CR5B36MB is the perfect choices for convenient cooking. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes and with touch controls. Browse the full Summit lineup for more.
  • Left rear 2200W element is 9" in diameter to handle larger cooking vessels

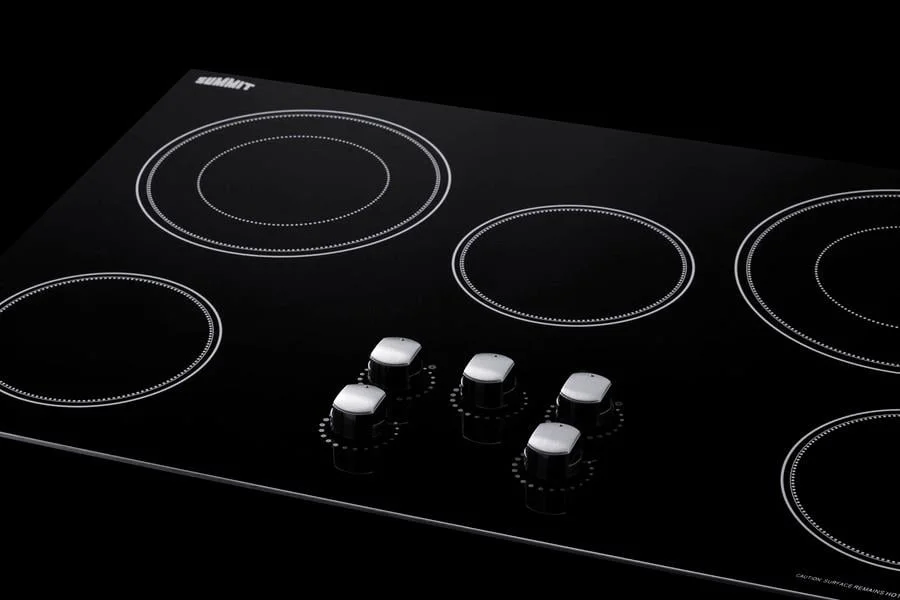

  • Controls require a gentle push to help prevent cooking accidents
  • Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
  • Indicator shows when the surface is still hot to touch
  • Upfront controls meet ADA guidelines for easier accessibilty
  • Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed

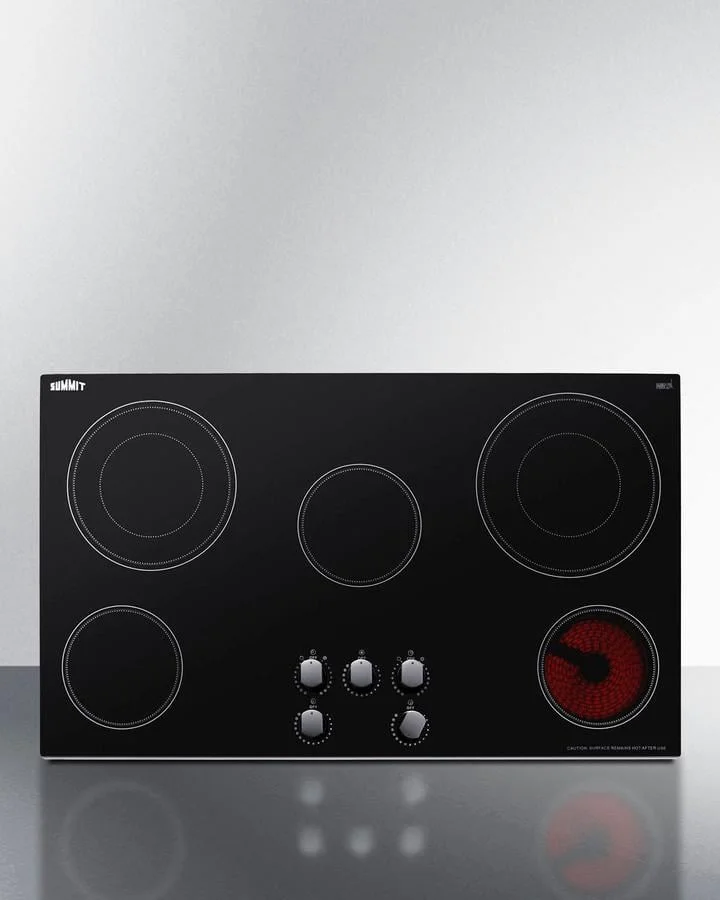

  • Front left and front right burners are 6.5" in diameter to meet most cooking needs
  • 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts

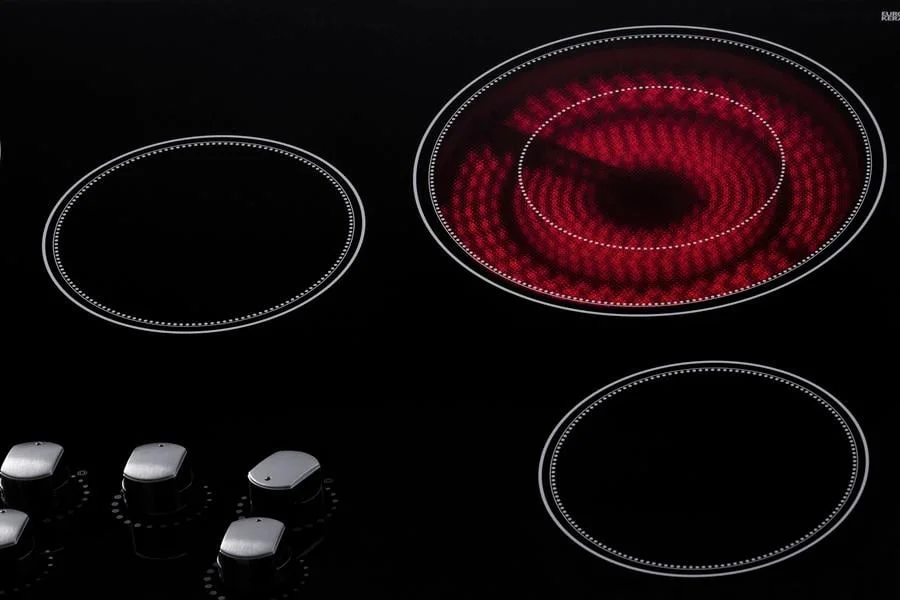

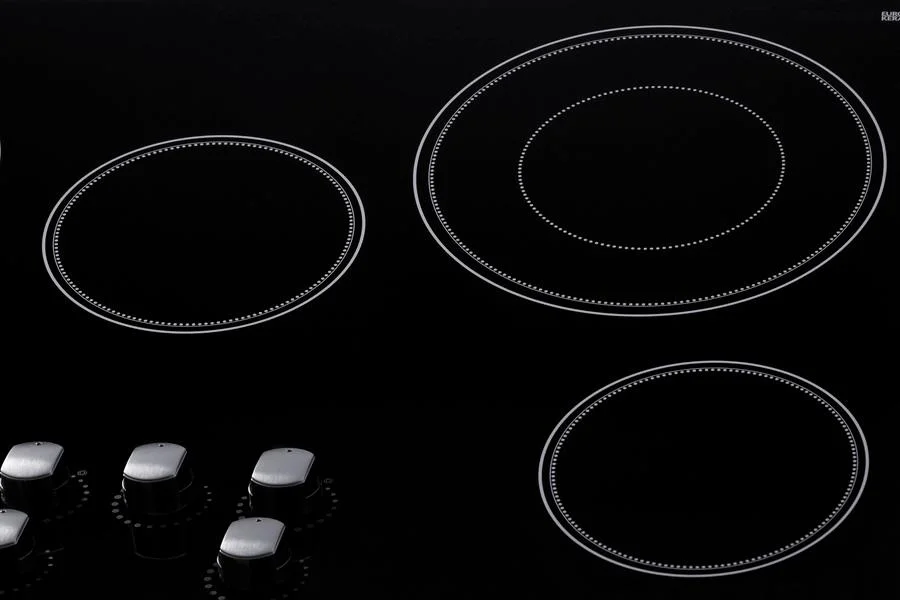

  • Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
  • Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
Brochure W/ Drawings
Brochure W/ Drawings
View PDF for more information
Use & Care
Use & Care
View PDF for more information

Rebates

view available rebates
36" Wide 208-240V 5-Burner Radiant Cooktop
36" Wide 208-240V 5-Burner Radiant Cooktop
Electric Ranges Collection
Simon's Price: $977
12 Interest Free Monthly Payments Of $82

Specifications

Specifications

remove

Product

Sabbath Mode No
Sabbath Mode
  • No
Wifi Enabled No
Wifi Enabled
  • No
Appliance Fuel Type Electric
Appliance Fuel Type
  • Electric
Induction No
Induction
  • No
ADA Compliant Yes
ADA Compliant
  • Yes
Energy Star Compliant No
Energy Star Compliant
  • No

Dimensions

Height (bottom to top) 2.13" H
Height (bottom to top)
  • 2.13" H
Width (side to side) 35.5" W
Width (side to side)
  • 35.5" W
Depth (front to back) 20.5" D
Depth (front to back)
  • 20.5" D

Features & Function

Number of Burners 5
Number of Burners
  • 5
Oven Features ADA Compliant
Oven Features
  • ADA Compliant
Maximum Spin Speed (RPM) -1.0
Maximum Spin Speed (RPM)
  • -1.0

Overview

Nominal Height 2.13" (5 cm)
Nominal Height
  • 2.13" (5 cm)
Height of Cabinet 2.13" (5 cm)
Height of Cabinet
  • 2.13" (5 cm)
Nominal Width 36.0" (91 cm)
Nominal Width
  • 36.0" (91 cm)
Width 35.5" (90 cm)
Width
  • 35.5" (90 cm)
Nominal Depth 21.0" (53 cm)
Nominal Depth
  • 21.0" (53 cm)
Depth 20.5" (52 cm)
Depth
  • 20.5" (52 cm)
Cabinet Black
Cabinet
  • Black
US Electrical Safety ETL
US Electrical Safety
  • ETL
Canadian Electrical Safety ETL-C
Canadian Electrical Safety
  • ETL-C
Amps 30.0
Amps
  • 30.0
Voltage/Frequency 240 V AC/60 Hz
Voltage/Frequency
  • 240 V AC/60 Hz
Weight 36.0 lbs. (16 kg)
Weight
  • 36.0 lbs. (16 kg)
Parts & Labor Warranty 1 Year
Parts & Labor Warranty
  • 1 Year
UPC 761101077567
UPC
  • 761101077567

Electric Cooktop

Heating Type Radiant
Heating Type
  • Radiant
Surface Glass
Surface
  • Glass
Element Type Glasstop
Element Type
  • Glasstop
Number of Elements 5
Number of Elements
  • 5
Controls Dial
Controls
  • Dial
Countertop Cutout Height 3.2" (8 cm)
Countertop Cutout Height
  • 3.2" (8 cm)
Countertop Cutout Width 34.75" (88 cm)
Countertop Cutout Width
  • 34.75" (88 cm)
Countertop Cutout Depth 19.63" (50 cm)
Countertop Cutout Depth
  • 19.63" (50 cm)
Element #1 Size 6.5" (17 cm)
Element #1 Size
  • 6.5" (17 cm)
Element #1 Wattage 1200.0
Element #1 Wattage
  • 1200.0
Element #2 Size 9.0" (23 cm)
Element #2 Size
  • 9.0" (23 cm)
Element #2 Wattage 2200.0
Element #2 Wattage
  • 2200.0
Element #3 Size 6.5" (17 cm)
Element #3 Size
  • 6.5" (17 cm)
Element #3 Wattage 100.0
Element #3 Wattage
  • 100.0
Element #4 Size 9.75" (25 cm)
Element #4 Size
  • 9.75" (25 cm)
Element #4 Wattage 3000.0
Element #4 Wattage
  • 3000.0
Element #5 Size 6.5" (17 cm)
Element #5 Size
  • 6.5" (17 cm)
Element #5 Wattage 1200.0
Element #5 Wattage
  • 1200.0
Power Cord Included No
Power Cord Included
  • No

Features

Left rear 2200W element is 9" in diameter to handle larger cooking vessels, Controls require a gentle push to help prevent cooking accidents, Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish, Indicator shows when the surface is still hot to touch, Upfront controls meet ADA guidelines for easier accessibilty, Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed, Front left and front right burners are 6.5" in diameter to meet most cooking needs, 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts, Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware, Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating
  • Left rear 2200W element is 9" in diameter to handle larger cooking vessels
  • Controls require a gentle push to help prevent cooking accidents
  • Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish
  • Indicator shows when the surface is still hot to touch
  • Upfront controls meet ADA guidelines for easier accessibilty
  • Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed
  • Front left and front right burners are 6.5" in diameter to meet most cooking needs
  • 5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts
  • Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware
  • Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

Item & Dimensions

Manufacturer Summit
Manufacturer
  • Summit
