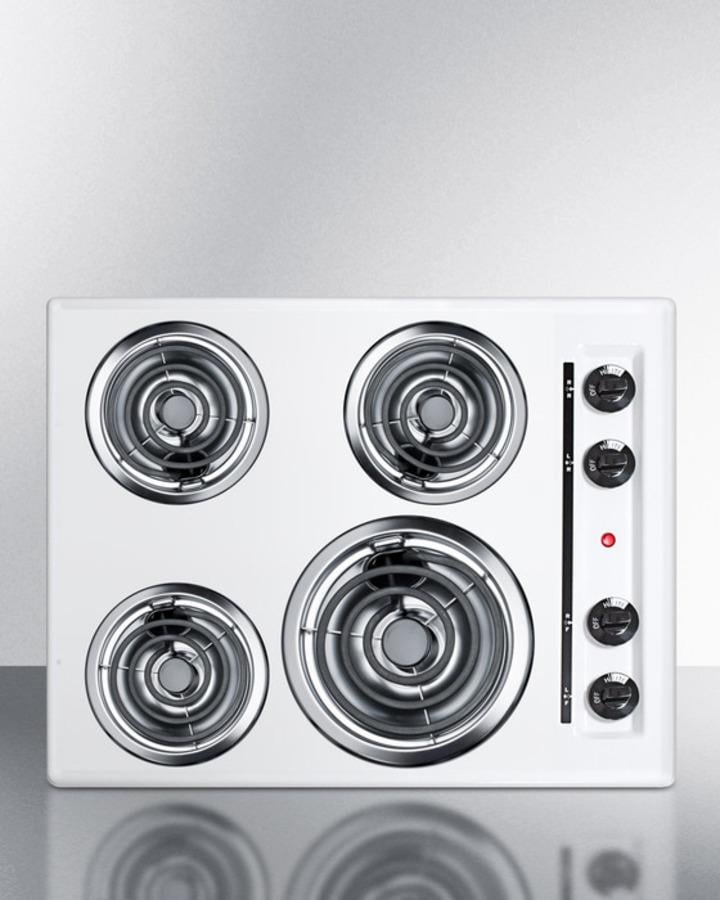

24" Wide 4-Burner Coil Cooktop

Name: Electric Ranges Cooktops (Electric)
Brand: Summit
Price: 451.0 USD
Availability: OnlineOnly

Electric Ranges Collection by Summit

SKU: WEL03

Be the first to write a review

Simon's Price: $451

12 Interest Free Monthly Payments Of $38

Price with selected options:

Qty:

Items in Cart

( products)

Where Can I See This Product in Store?

This product is not on display in our showrooms.

Estimated Delivery Price

Enter your zip code to get a delivery estimate.

Ask a Question

less

First Name *

First Name is required

Last Name *

Last Name is required

Email Address *

Email Address is required

How can we help you? *

Message is required

Sign-up for email offers and promotions

Important Field Do you agree to the terms of service? (*Required)

Really Important Field

Dimensions:

24.0" W × 20.0" D × 3.75" H

remove add

Width (side to side)	24.0
Depth (front to back)	20.0
Height (bottom to top)	3.75

see more specs

Disclaimer

remove add

Description

Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens. The WEL03 is a 24" wide 220-240V electric cooktop designed to fit 22 5/8" wide x 18 5/8" deep cutouts. It features a porcelain surface in a classic white finish, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on. Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord. The WEL03 is designed and constructed in the USA. Additional finishes are available, as well as 30" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.

Traditional design offers reliable heating and strong durability for everyday use
Each coil element includes a removable chrome pan to catch spills for easier cleanup
Fits 22 5/8" W x 18 5/8" D counter cutouts
Curved design helps to contain spills on the surface
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Scratch-resistant top in a a clean white finish
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Designed and constructed domestically
Larger element is ideal for heating wider pots and pans
Standard burners accommodate most heating needs

Rebates

view available rebates

24" Wide 4-Burner Coil Cooktop

Electric Ranges Collection

Simon's Price: $451

12 Interest Free Monthly Payments Of $38

Items in Cart ()

Specifications

Dimensions

Height (bottom to top) 3.75" H

Height (bottom to top)

3.75" H

Width (side to side) 24.0" W

Width (side to side)

24.0" W

Depth (front to back) 20.0" D

Depth (front to back)

20.0" D

Features & Function

Number of Burners 4

Number of Burners

Maximum Spin Speed (RPM) -1.0

Maximum Spin Speed (RPM)

-1.0

Product

Sabbath Mode No

Sabbath Mode

Wifi Enabled No

Wifi Enabled

Appliance Fuel Type Electric

Appliance Fuel Type

Electric

Induction No

Induction

ADA Compliant No

ADA Compliant

Energy Star Compliant No

Energy Star Compliant

Cooktop Type Open Gas Burner

Cooktop Type

Open Gas Burner

Overview

Height of Cabinet 3.75" (10 cm)

Height of Cabinet

3.75" (10 cm)

Width 24.0" (61 cm)

Width

24.0" (61 cm)

Depth 20.0" (51 cm)

Depth

20.0" (51 cm)

Cabinet White

Cabinet

White

US Electrical Safety UL

US Electrical Safety

Canadian Electrical Safety ULC

Canadian Electrical Safety

Amps 30.0

Amps

30.0

Voltage/Frequency 230 V AC/60 Hz

Voltage/Frequency

230 V AC/60 Hz

Weight 22.0 lbs. (10 kg)

Weight

22.0 lbs. (10 kg)

Shipping Weight 27.0 lbs. (12 kg)

Shipping Weight

27.0 lbs. (12 kg)

Parts & Labor Warranty 1 Year

Parts & Labor Warranty

1 Year

UPC 761101000732

UPC

761101000732

Electric Cooktop

Heating Type Radiant

Heating Type

Radiant

Surface Painted

Surface

Painted

Element Type Coils

Element Type

Coils

Number of Elements 4

Number of Elements

Controls Dial

Controls

Dial

Countertop Cutout Width 22.63" (57 cm)

Countertop Cutout Width

22.63" (57 cm)

Countertop Cutout Depth 18.63" (47 cm)

Countertop Cutout Depth

18.63" (47 cm)

Element #1 Size 6.0" (15 cm)

Element #1 Size

6.0" (15 cm)

Element #1 Wattage 675.0

Element #1 Wattage

675.0

Element #2 Size 8.0" (20 cm)

Element #2 Size

8.0" (20 cm)

Element #2 Wattage 950.0

Element #2 Wattage

950.0

Element #3 Size 6.0" (15 cm)

Element #3 Size

6.0" (15 cm)

Element #3 Wattage 675.0

Element #3 Wattage

675.0

Element #4 Size 6.0" (15 cm)

Element #4 Size

6.0" (15 cm)

Element #4 Wattage 675.0

Element #4 Wattage

675.0

Power Cord Included No

Power Cord Included

Features

Traditional design offers reliable heating and strong durability for everyday use, Each coil element includes a removable chrome pan to catch spills for easier cleanup, Fits 22 5/8" W x 18 5/8" D counter cutouts, Curved design helps to contain spills on the surface, Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens, Scratch-resistant top in a a clean white finish, Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off, Designed and constructed domestically, Larger element is ideal for heating wider pots and pans, Standard burners accommodate most heating needs

Traditional design offers reliable heating and strong durability for everyday use
Each coil element includes a removable chrome pan to catch spills for easier cleanup
Fits 22 5/8" W x 18 5/8" D counter cutouts
Curved design helps to contain spills on the surface
Cooktop knobs are located on the right side of the cooktop, reducing the risk of accidentally adjusting the heating in busy kitchens
Scratch-resistant top in a a clean white finish
Complies with the latest UL safety standards, the elements operate at lower wattage for slower but steadier heating that will not cycle off
Designed and constructed domestically
Larger element is ideal for heating wider pots and pans
Standard burners accommodate most heating needs

Item & Dimensions

Manufacturer Summit

Manufacturer

Summit

The Electric Ranges 24" Wide 4-Burner Coil Cooktop, made by Summit, is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary. Contact us for the most current availability on this product.
