30-Inch Electric Ceramic Glass Cooktop With Two Dual Radiant Elements
SKU: WCE77US0HS
Call for availability
Color:
Stainless Steel
Simon's Price:
$1,000
12 Interest Free Monthly Payments Of
$85
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
Qty: 1
keyboard_arrow_down
Qty: 1
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question

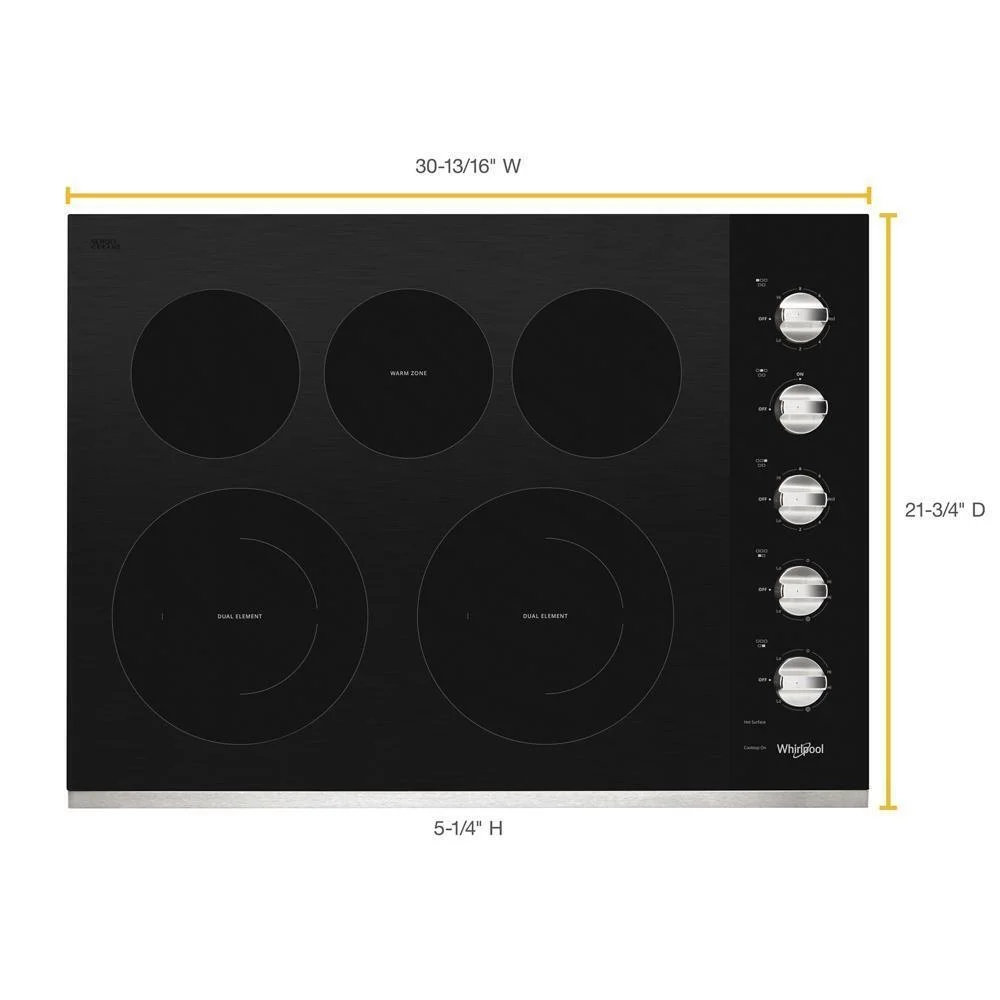

lessDimensions:
30.8125" W
×
22.875" D
×
5.25" H
| Width (side to side) | 30.8125 |
| Depth (front to back) | 22.875 |
| Height (bottom to top) | 5.25 |
| Product Height | 5.25 |
| Carton Height | 9.25 |
| Gross Weight | 46 |
| Carton Width | 35 |
| Product Depth | 22.875 |
| Cutout Depth Max | 20.563 |
| Cutout Width Min | 29.063 |
| Cutout Depth | 20.375 |
| Carton Depth | 25 |
| Cutout Width | 29.063 |
| Cutout Depth Min | 20.375 |
| Cutout Width Max | 29.563 |
| Net Weight | 41 |
| Product Width | 30.8125 |
Disclaimer
Description
moreCook all your family s favorites at once and clean up quick with a 5-burner cooktop designed to make the most of your mealtime routine. Two FlexHeat™ Dual Radiant Elements give you more flexibility and the Warm Zone Element keeps food warm while you re finishing the rest of the meal. Then, easily wipe messes off the ceramic glass surface.
- Wiping up spills is simple with the easy-to-clean cooktop
- Keep food warm with the Warm Zone element
- Cook small dishes on a 6" Extra Element
- Meets ADA Standards for Accessible Design
- Get two elements in one with a FLEXHEAT dual radiant element
- Enjoy added versatility with a fifth element
- See when the cooktop's still hot with a light that lets you know
- Install this cooktop with a wall oven or on its own
30-Inch Electric Ceramic Glass Cooktop With Two Dual Radiant Elements
Electric Ranges Collection
Simon's Price:
$1,000
12 Interest Free Monthly Payments Of
$85
Specifications
Specifications
Product
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Appliance Color
Stainless Steel
Appliance Color
- Stainless Steel
Induction
No
Induction
- No
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Features & Function
Number of Burners
5
Number of Burners
- 5
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Style Elements
Color Family
Stainless Steel
Color Family
- Stainless Steel
Color Name
Stainless Steel
Color Name
- Stainless Steel
Construction & Materials
Warranty
1 Year Limited Warranty
Warranty
- 1 Year Limited Warranty
Dimensions
Height (bottom to top)
5.25" H
Height (bottom to top)
- 5.25" H
Width (side to side)
30.8125" W
Width (side to side)
- 30.8125" W
Depth (front to back)
22.875" D
Depth (front to back)
- 22.875" D
Carton Height
9.25
Carton Height
- 9.25
Product Height
5.25
Product Height
- 5.25
Carton Width
35
Carton Width
- 35
Product Width
30.8125
Product Width
- 30.8125
Cutout Width Max
29.563
Cutout Width Max
- 29.563
Cutout Width Min
29.063
Cutout Width Min
- 29.063
Cutout Width
29.063
Cutout Width
- 29.063
Carton Depth
25
Carton Depth
- 25
Product Depth
22.875
Product Depth
- 22.875
Cutout Depth Max
20.563
Cutout Depth Max
- 20.563
Cutout Depth
20.375
Cutout Depth
- 20.375
Cutout Depth Min
20.375
Cutout Depth Min
- 20.375
Gross Weight
46
Gross Weight
- 46
Net Weight
41
Net Weight
- 41
Certifications
Ada Compliant
ADA Height and Operation Compliant
Ada Compliant
- ADA Height and Operation Compliant
Prop65
Standard
Prop65
- Standard
Controls
Control Location
Right
Control Location
- Right
Control Type
Knobs
Control Type
- Knobs
Infinite Heat Controls
Yes
Infinite Heat Controls
- Yes
Cooktop Details
Cooktop Surface Color
Black
Cooktop Surface Color
- Black
Cooktop Surface Material
Glass
Cooktop Surface Material
- Glass
Digital Display
No
Digital Display
- No
Griddle Included
N/A
Griddle Included
- N/A
Heating Element On Indicator Light
Yes
Heating Element On Indicator Light
- Yes
Hot Surface Indicator Light
Yes
Hot Surface Indicator Light
- Yes
Number of Open Bays
N/A
Number of Open Bays
- N/A
Details
Automatic Pan Detection
No
Automatic Pan Detection
- No
Combinations With Oven
WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Combinations With Oven
- WOES3027L; WOES3030L; WOES5027L; WOES5030L; WOES7027P; WOES7030P; WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Cooktop Configuration
All Burners
Cooktop Configuration
- All Burners
Fuel Type
Electric
Fuel Type
- Electric
Installs Over Built-in Oven
Yes
Installs Over Built-in Oven
- Yes
Lp Convertible
No
Lp Convertible
- No
Power Outage Compatible
No
Power Outage Compatible
- No
Electrical
208v Compatible
Yes
208v Compatible
- Yes
Power Cord Included
No
Power Cord Included
- No
Element/burner Details
Center Rear Element-burner Power
100W
Center Rear Element-burner Power
- 100W
Center Rear Element-burner Size
6in.
Center Rear Element-burner Size
- 6in.
Center Rear Element-burner Type
Warming
Center Rear Element-burner Type
- Warming
Cooktop Element Style
Radiant
Cooktop Element Style
- Radiant
Cooktop Type
Standard
Cooktop Type
- Standard
Left Front Element-burner Power
3000W/1900W
Left Front Element-burner Power
- 3000W/1900W
Left Front Element-burner Size
10in./6in.
Left Front Element-burner Size
- 10in./6in.
Left Front Element-burner Type
Dual
Left Front Element-burner Type
- Dual
Left Rear Element-burner Power
1,200W
Left Rear Element-burner Power
- 1,200W
Left Rear Element-burner Size
6in.
Left Rear Element-burner Size
- 6in.
Left Rear Element-burner Type
Standard
Left Rear Element-burner Type
- Standard
Number of Cooking Element-burners
5
Number of Cooking Element-burners
- 5
Power Boost
No
Power Boost
- No
Right Front Element-burner Power
3000W/1900W
Right Front Element-burner Power
- 3000W/1900W
Right Front Element-burner Size
10in./6in.
Right Front Element-burner Size
- 10in./6in.
Right Front Element-burner Type
Dual
Right Front Element-burner Type
- Dual
Right Rear Element-burner Power
1,200W
Right Rear Element-burner Power
- 1,200W
Right Rear Element-burner Size
6in.
Right Rear Element-burner Size
- 6in.
Right Rear Element-burner Type
Standard
Right Rear Element-burner Type
- Standard
Exterior Details
Knob Color
Stainless Steel
Knob Color
- Stainless Steel
Knob Type
Dishwasher-Safe Plastic
Knob Type
- Dishwasher-Safe Plastic
General
Combination Match With Oven
WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Combination Match With Oven
- WOS11EM4; WOS31ES0; WOS31ES7; WOS51EC0; WOS51EC7; WOS51ES4; WOS52EM4; WOS72EC0; WOS72EC7; WOS92EC0; WOS92EC7; WOS97EC0; WOS97ES0; WOSA2EC0
Ventilation Details
Downdraft Vent
No
Downdraft Vent
- No
Features
Wiping up spills is simple with the easy-to-clean cooktop, Keep food warm with the Warm Zone element, Cook small dishes on a 6" Extra Element, Meets ADA Standards for Accessible Design, Get two elements in one with a FLEXHEAT dual radiant element, Enjoy added versatility with a fifth element, See when the cooktop's still hot with a light that lets you know, Install this cooktop with a wall oven or on its own
- Wiping up spills is simple with the easy-to-clean cooktop
- Keep food warm with the Warm Zone element
- Cook small dishes on a 6" Extra Element
- Meets ADA Standards for Accessible Design
- Get two elements in one with a FLEXHEAT dual radiant element
- Enjoy added versatility with a fifth element
- See when the cooktop's still hot with a light that lets you know
- Install this cooktop with a wall oven or on its own
Burner Type
Smooth Top/Radiant
Burner Type
- Smooth Top/Radiant
Power Source
Electric
Power Source
- Electric
Capacity
30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
Capacity
- 30-inch Electric Ceramic Glass Cooktop with Two Dual Radiant Elements
Hot Surface Indicator
Yes
Hot Surface Indicator
- Yes
Cooking Type
Convection
Cooking Type
- Convection
Expandable Burner
Yes
Expandable Burner
- Yes
Cooking Surface
Ceramic
Cooking Surface
- Ceramic
Item & Dimensions
Manufacturer
Whirlpool, Whirlpool
Manufacturer
- Whirlpool
- Whirlpool
The Electric Ranges 30-Inch Electric Ceramic Glass Cooktop With Two Dual Radiant Elements, made by Whirlpool,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Cooktops, Electric Cooktop, Gas Cooktop, Down Draft Cooktop, Cook Top, Cooktop Range, Ranges, Cooktop with Downdraft, Kitchen Cooktop, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Stove Top, Rangetops, Range Top
Reference #: WCE77US0HS
