Simon's Price:
$1,618
12 Interest Free Monthly Payments Of
$136
None
Selected
Qty: 1
Qty: 1
More options
keyboard_arrow_down
keyboard_arrow_up
keyboard_arrow_down
Price with selected options:
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDimensions:
30.0" W
×
24.0" D
×
44.0" H
Width (side to side) | 30.0 |
Depth (front to back) | 24.0 |
Height (bottom to top) | 44.0 |
Disclaimer
Description

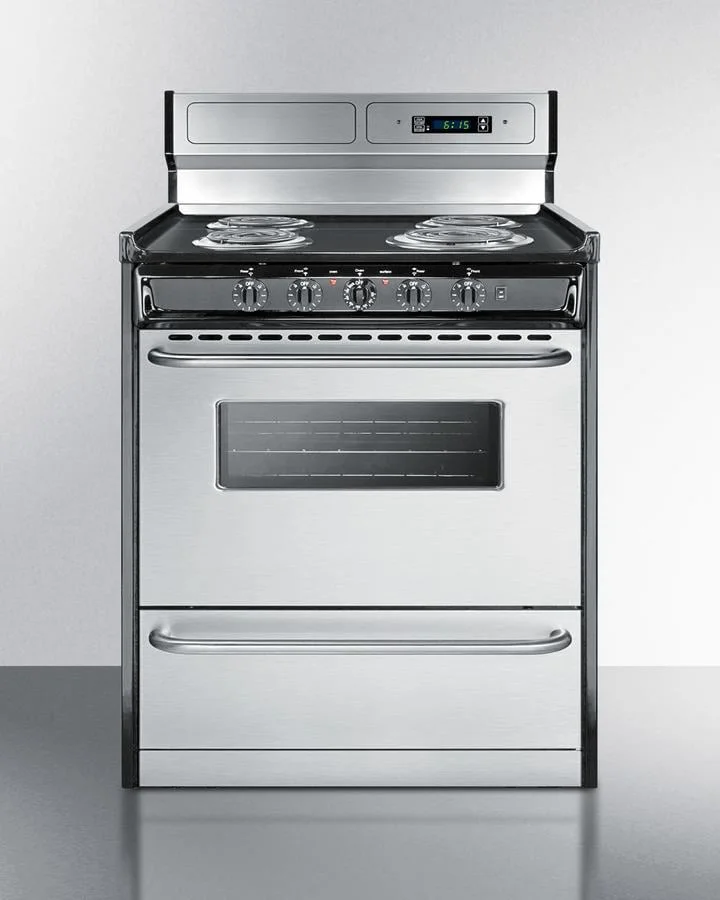

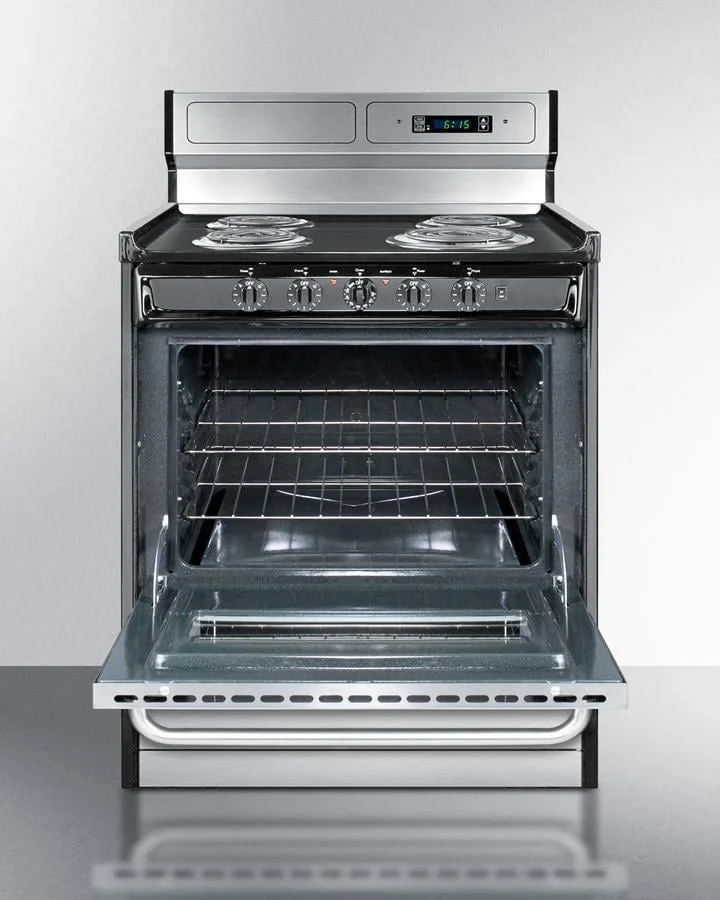

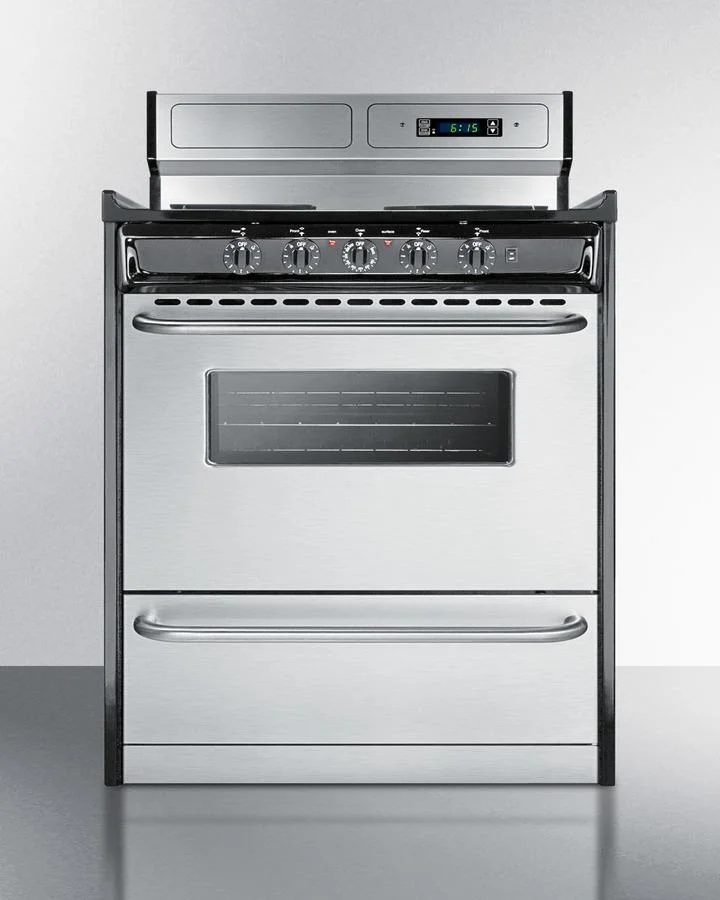

moreSummit Appliance offers a wide selection of American-made household ranges built for long-lasting durability in space-challenged kitchens. The TEM230BKWY is an apartment-sized 220V electric range sized at 30" wide, with a generous 3.7 cu.ft oven interior that can accommodate large trays. The oven window and interior light with an on/off switch make it easy to monitor your cooking without opening the door. Two adjustable oven racks are included. The waist-high broiler is located inside the oven, allowing you to switch functions without moving contents to a separate compartment on the floor. The lower drop-down storage compartment is ideal for keeping pots and pans out of the way in small kitchens. Designed to meet the most current UL-858 safety standards, this unit features one 8" 2400W and three 6" 1500W coil elements with a safety sensor that will cycle the element off before reaching dangerous flashpoint temperatures. Heating resumes automatically. Upfront push-to-turn knobs offer additional protection, ensuring users won't reach over hot burners to adjust the heat. Stainless steel doors feature professional style towel bar handles, bringing classic elegance to smaller kitchen spaces.The deluxe 8" high backguard includes a digital clock and timer for added convenience when cooking. This unit has a recessed oven door and is conveniently sized at just 24" deep for a better fit in galley in L-shaped kitchens, where every inch counts. We include an anti-tip bracket for added safety. This unit does not include a line cord (a standard 40 amp 3 or 4-prong cord can be installed by your electrician). With its classic style and quality construction, Summit's made in the USA cooking line offers reliable cooking for smaller homes. Additional choices are available in 20", 24", and 36" wide fits.
- Shallower fit is ideal for L-shaped and galley kitchens
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
- Designed and constructed domestically
- Each coil element includes a removable chrome pan for easier cleaning
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Standard size ideal for most kitchens
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- 30" wide 220V electric range with coil elements and a full-sized oven
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Three standard 6" 1500W and one large 8" 2400W element
Rebates
view available rebates
Specifications
Specifications
Product
Warm Drawer
No
Warm Drawer
- No
Sabbath Mode
No
Sabbath Mode
- No
Wifi Enabled
No
Wifi Enabled
- No
Appliance Fuel Type
Electric
Appliance Fuel Type
- Electric
Self Clean
No
Self Clean
- No
Range Installation Type
Freestanding
Range Installation Type
- Freestanding
Convection
No
Convection
- No
Proof Mode
No
Proof Mode
- No
Hidden Bake Element
No
Hidden Bake Element
- No
ADA Compliant
Yes
ADA Compliant
- Yes
Energy Star Compliant
No
Energy Star Compliant
- No
Dimensions
Height (bottom to top)
44.0" H
Height (bottom to top)
- 44.0" H
Width (side to side)
30.0" W
Width (side to side)
- 30.0" W
Depth (front to back)
24.0" D
Depth (front to back)
- 24.0" D
Storage
Has Storage Drawer
Yes
Has Storage Drawer
- Yes
Features & Function
Number of Burners
4
Number of Burners
- 4
Oven Features
ADA Compliant
Oven Features
- ADA Compliant
Maximum Spin Speed (RPM)
-1.0
Maximum Spin Speed (RPM)
- -1.0
Overview
Height of Cabinet
44.0" (112 cm)
Height of Cabinet
- 44.0" (112 cm)
Width
30.0" (76 cm)
Width
- 30.0" (76 cm)
Depth
24.0" (61 cm)
Depth
- 24.0" (61 cm)
Door
Stainless Steel
Door
- Stainless Steel
Cabinet
Black
Cabinet
- Black
Voltage/Frequency
220 V AC/60 Hz
Voltage/Frequency
- 220 V AC/60 Hz
Weight
160.0 lbs. (73 kg)
Weight
- 160.0 lbs. (73 kg)
Parts & Labor Warranty
1 Year
Parts & Labor Warranty
- 1 Year
UPC
761101012902
UPC
- 761101012902
Electric Range
Oven Capacity
3.7 cu.ft. (105 L)
Oven Capacity
- 3.7 cu.ft. (105 L)
Cooktop Surface
Porcelain
Cooktop Surface
- Porcelain
Element Type
Coils
Element Type
- Coils
Number of Elements
4
Number of Elements
- 4
Element #1 Size
6.0" (15 cm)
Element #1 Size
- 6.0" (15 cm)
Element #1 Wattage
1500.0
Element #1 Wattage
- 1500.0
Element #2 Size
6.0" (15 cm)
Element #2 Size
- 6.0" (15 cm)
Element #2 Wattage
1500.0
Element #2 Wattage
- 1500.0
Element #3 Size
6.0" (15 cm)
Element #3 Size
- 6.0" (15 cm)
Element #3 Wattage
1500.0
Element #3 Wattage
- 1500.0
Element #4 Size
8.0" (20 cm)
Element #4 Size
- 8.0" (20 cm)
Element #4 Wattage
2400.0
Element #4 Wattage
- 2400.0
Burner Controls
Dial
Burner Controls
- Dial
Oven Controls
Dial
Oven Controls
- Dial
Oven Light
Yes
Oven Light
- Yes
Cooking Timer
Yes
Cooking Timer
- Yes
Backguard
Yes
Backguard
- Yes
Backguard Display
Yes
Backguard Display
- Yes
Oven Window
Yes
Oven Window
- Yes
Oven Interior Height
14.0" (36 cm)
Oven Interior Height
- 14.0" (36 cm)
Oven Interior Width
24.0" (61 cm)
Oven Interior Width
- 24.0" (61 cm)
Oven Interior Depth
19.0" (48 cm)
Oven Interior Depth
- 19.0" (48 cm)
Features
Shallower fit is ideal for L-shaped and galley kitchens, Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature, Designed and constructed domestically, Each coil element includes a removable chrome pan for easier cleaning, Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen, Standard size ideal for most kitchens, Doors and backguard are constructed from brushed stainless steel for modern luxury built to last, 30" wide 220V electric range with coil elements and a full-sized oven, Curved handles in brushed stainless steel offer an easier grip in attractive style, Three standard 6" 1500W and one large 8" 2400W element
- Shallower fit is ideal for L-shaped and galley kitchens
- Designed to comply with the latest UL safety standards, the elements include a sensor that will cycle the element off and on if it reaches flashpoint temperature
- Designed and constructed domestically
- Each coil element includes a removable chrome pan for easier cleaning
- Bottom drop-down compartment is ideal for storing cookware, helping to free up space in your small kitchen
- Standard size ideal for most kitchens
- Doors and backguard are constructed from brushed stainless steel for modern luxury built to last
- 30" wide 220V electric range with coil elements and a full-sized oven
- Curved handles in brushed stainless steel offer an easier grip in attractive style
- Three standard 6" 1500W and one large 8" 2400W element
Item & Dimensions
Manufacturer
Summit
Manufacturer
- Summit
The Electric Ranges 30" Wide Electric Coil Range, made by Summit,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Electric Ranges collection is an amazing option if you are looking for
Appliances.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Similar search terms: Range, Ranges, Kitchen Appliances, Appliances, Stove, Kitchen Stove, Cook Top Stove, Cooker, Cookstove, Cook Stove, Rangetops, Range Top, Oven, Double Oven, Single Oven, Gas Oven, Electric Oven, Built in Oven, Combination Oven, Oven Range, Oven with Ranges, Oven with Stove Top, Convection Oven, Oven with Microwave, Stove Oven, Kitchen Range, Roaster, Stove, Electric Range, Gas Range, Slide In range, Free Standing Range
Reference #: TEM230BKWY
