Broan-Nutone® Radiation Damper For Losone Select® Ventilation Fans
SKU: RD1
Where Can I See This Product in Store?
moreThis product is not on display in our showrooms.
Estimated Delivery Price
Enter your zip code to get a delivery estimate.
Ask a Question
lessDisclaimer
Description

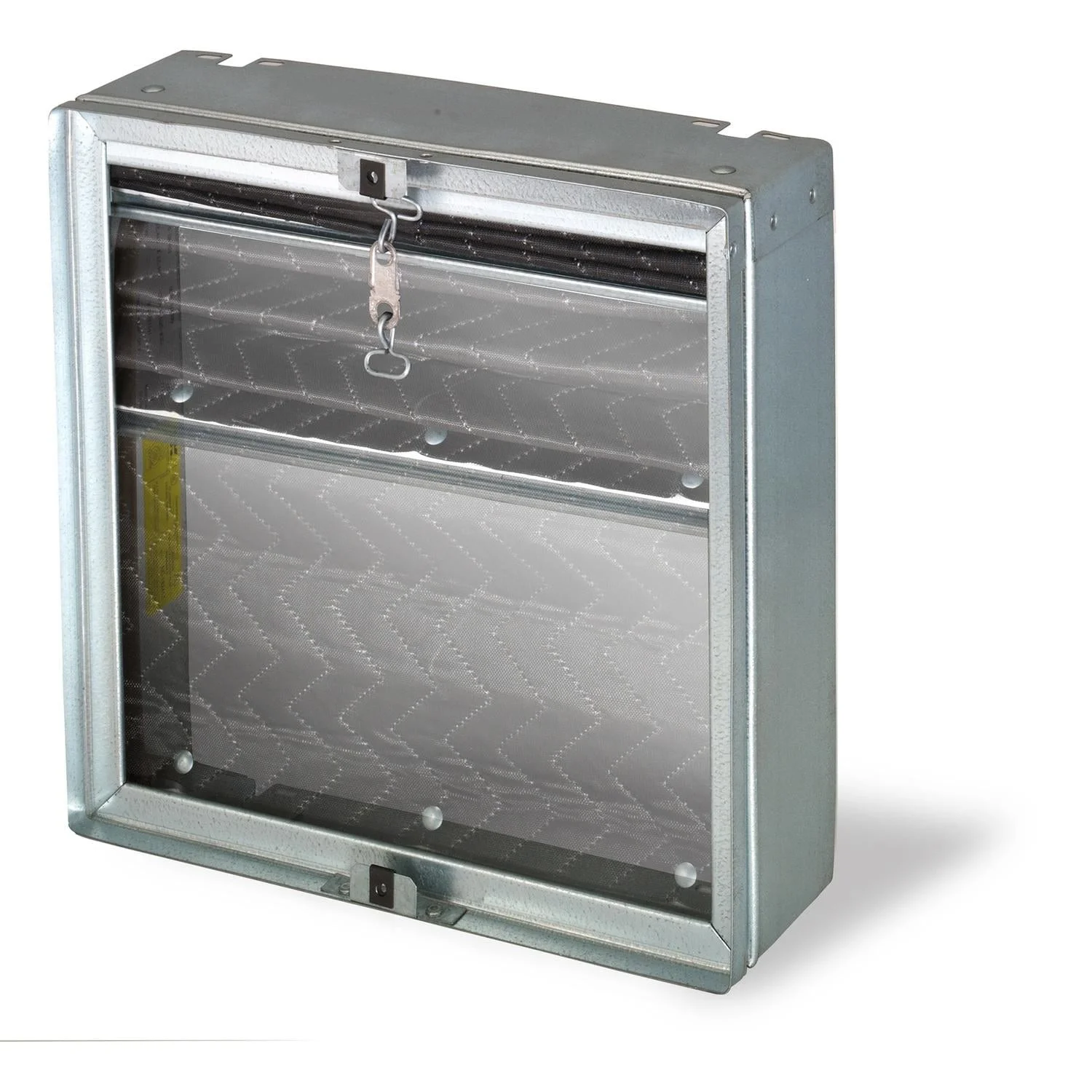

moreBroan-NuTone® Radiation Damper for LoSone Select® Ventilation Fans
The Broan-NuTone® RD1 Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home
The Broan-NuTone® RD1 Radiation Damper prevents the rapid spread of fire to other areas of a home during a fire. Many codes require that exhaust fans installed in multi-family homes, with fire-rated ceilings, must be protected by radiation dampers. When the air temperature passing through the damper exceeds 165°F, the fusible link melts, triggering the thermal fabric to automatically close across the damper. Airflow is interrupted by a flame and heat barrier, preventing the rapid spread of fire to other areas of the home
- Stainless steel closure springs
- Includes light jumper cable
- Galvanized steel frame
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- High temperature, non-asbestos, reinforced fiber thermal fabric
- 212(degree)F fusible link
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Separate outer frame allows complete fan and damper serviceability without disturbing the the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
Rebates
view available rebates
Broan-Nutone® Radiation Damper For Losone Select® Ventilation Fans
Accessories Collection
Specifications
Specifications
Product
Energy Star Compliant
No
Energy Star Compliant
- No
Features
Stainless steel closure springs, Includes light jumper cable, Galvanized steel frame, Meets or exceeds NFPA-90A, UL Classified (UL-555C), High temperature, non-asbestos, reinforced fiber thermal fabric, 212(degree)F fusible link, For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions, Separate outer frame allows complete fan and damper serviceability without disturbing the the surrounding ceiling material, For use with fans and ENERGY STAR qualified fan/lights
- Stainless steel closure springs
- Includes light jumper cable
- Galvanized steel frame
- Meets or exceeds NFPA-90A
- UL Classified (UL-555C)
- High temperature, non-asbestos, reinforced fiber thermal fabric
- 212(degree)F fusible link
- For use in 1, 2 and 3 hour rated floor-ceiling and roof-ceiling constructions
- Separate outer frame allows complete fan and damper serviceability without disturbing the the surrounding ceiling material
- For use with fans and ENERGY STAR qualified fan/lights
Item & Dimensions
Manufacturer
Broan
Manufacturer
- Broan
The Accessories Broan-Nutone® Radiation Damper For Losone Select® Ventilation Fans, made by Broan,
is brought to you by Simon's Furniture. Simon's Furniture is a local furniture store, serving the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area. Product availability may vary.
Contact us for the most current availability on this product.
Collection Details
The Accessories collection is an amazing option if you are looking for
furniture.
Our store serves the Boston, Franklin, Wrentham, Norfolk, Attleboro, Bellingham, Foxboro, Holliston, Hopkinton, Medfield, Medway, Milford, Millis, Plainville, Walpole Massachusetts and Providence, Rhode Island area.
Reference #: RD1
